AGRO POINT HUBS
IL70-180/6H-M30x2
Maintenance-Free Bearing With Integrated Flange For Harsh Tillage
Application: Disc Harrow

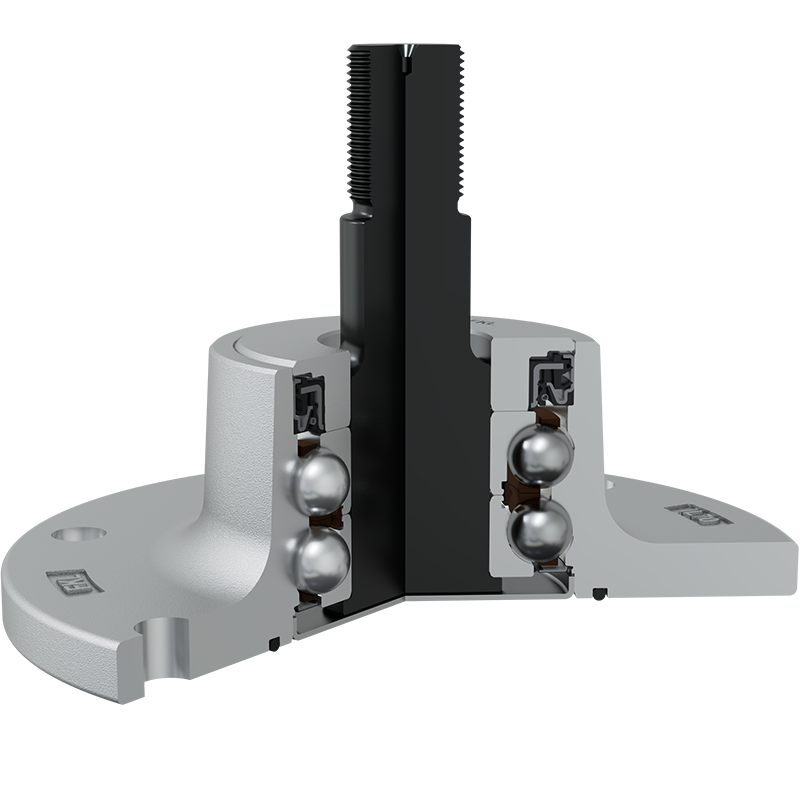

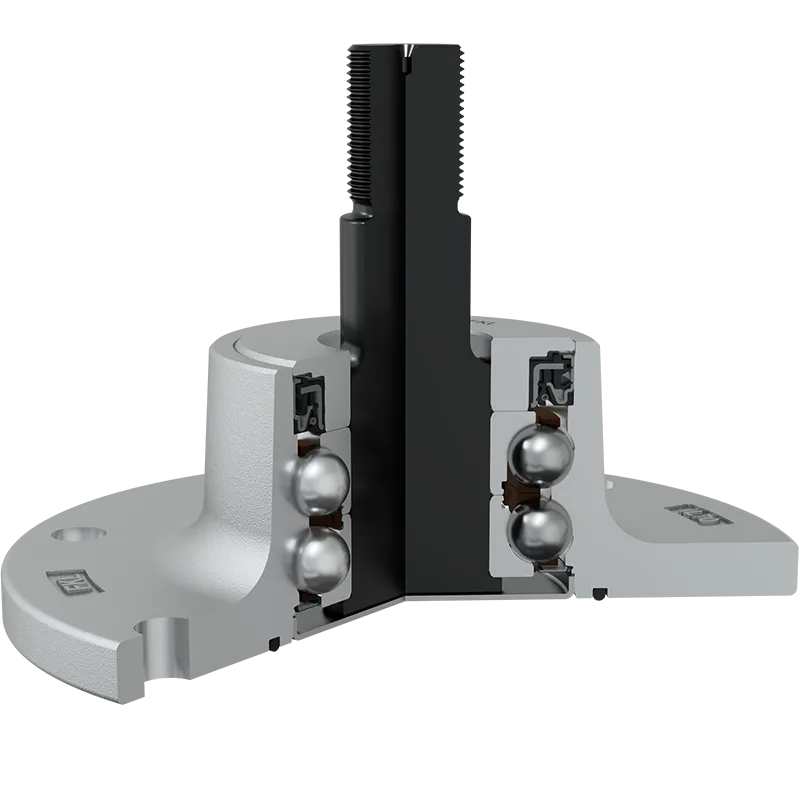

3D view
| J | Pitch circle diameter | 180 | mm |
| D | Outside diameter | 212 | mm |
| H/T | Hole/Thread | 6x15 | mm |
| d | Shaft diameter | 34 | mm |
| M | Outher Thread | M30x2 | mm |
| L | Total length | 147.2 | mm |
| L1 | Total flange length | 71 | mm |
| F | Length of threaded part | 43.5 | mm |
| l | Keyway length | 25 | mm |
| b | Keyway width | 10 | mm |
| kg | Mass | 7.47 | kg |
| Cdyn | Dynamic load rating | 94.45 | kN |
| Co | Static load rating | 77.88 | kN |
| Pu | Fatigue load limit | 3.27 | kN |

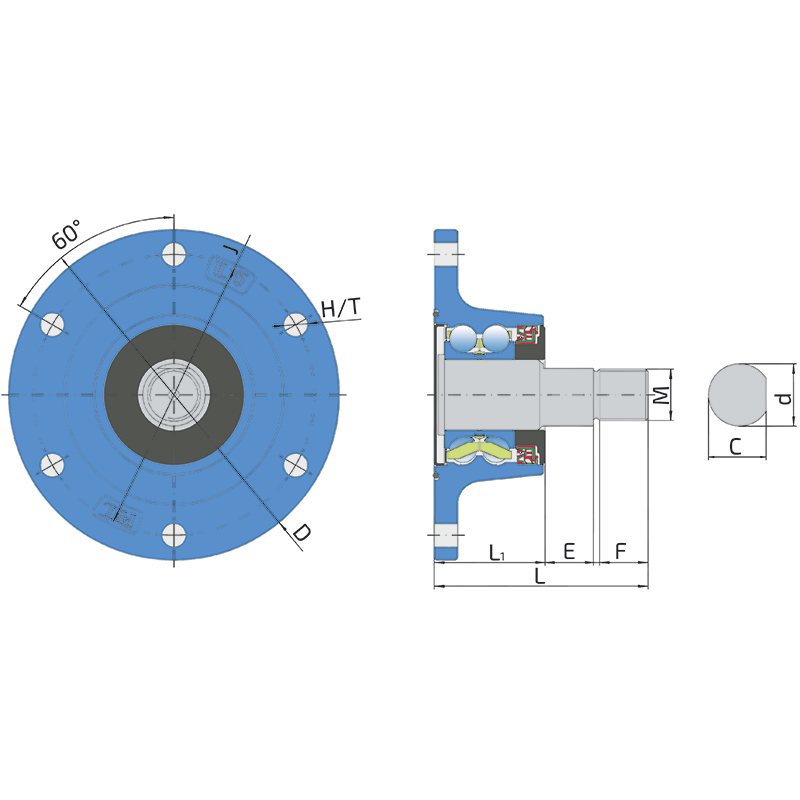

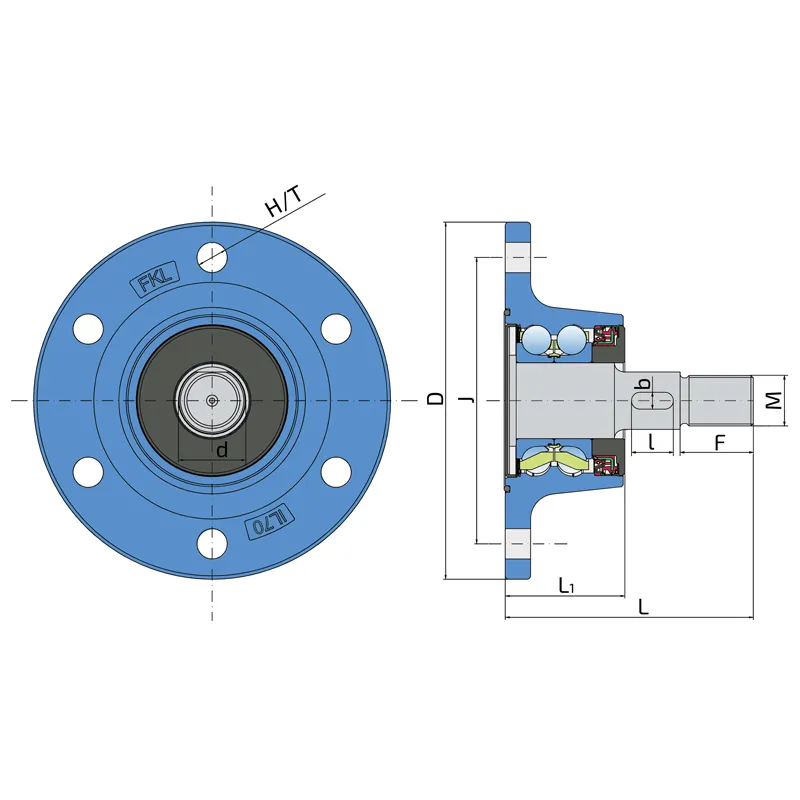

Technical Drawing
Sealing
O-RING+SHEET METAL SHIELD+RS SEAL / DIRTBLOCK SEAL+FORGED COVER PLATE
O-ring, Sheet metal shield and RS seal on the base side and Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.
O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
Sealing Drawing
