IL70-122/6T-M24

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Stubble disc cultivator

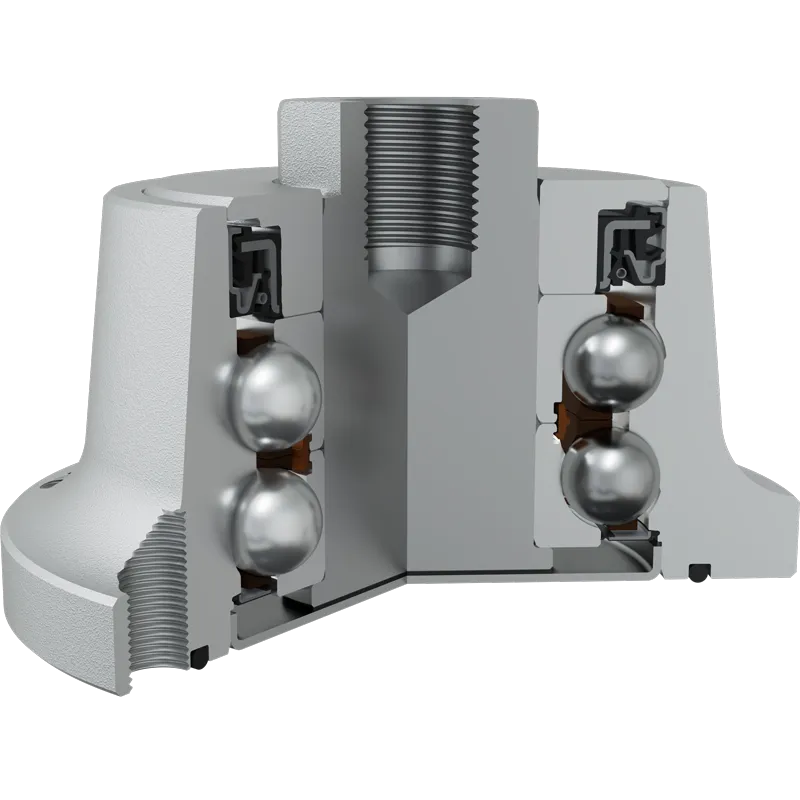

3D view

Technical Specification
JPitch circle diameter122mm
DOutside diameter 140mm
H/THole/Thread6xM12mm
dBore diameter44mm
CD-shape hole cut out dimension40mm
GInternal Thread26mm
LTotal length85mm
L1Total flange length71mm
ELength of D shape14mm
FLength of threaded part26mm
kgMass4.802kg
CdynDynamic load rating94.45kN
CoStatic load rating77.88kN
PuFatigue load limit3.271kN

Tehnical Drawing

Sealing

O-RING + SHEET METAL SHIELD + RS SEAL / DIRTBLOCK SEAL + FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.



Sealing Drawing

IL70-122/6T-M24

×

IL70-122/6T-M24

×

Sealing Type:

O-ring, Sheet metal shield and RS seal on the base side and Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

IL70-122/6T-M24

×
