AGRO POINT HUBS

IL35-100/6T-M24x2

The Bearing Solution For Harsh Seeding Conditions And Coulter Discs Of Ploughs, Integrated Flange

Application: Seeding Machines

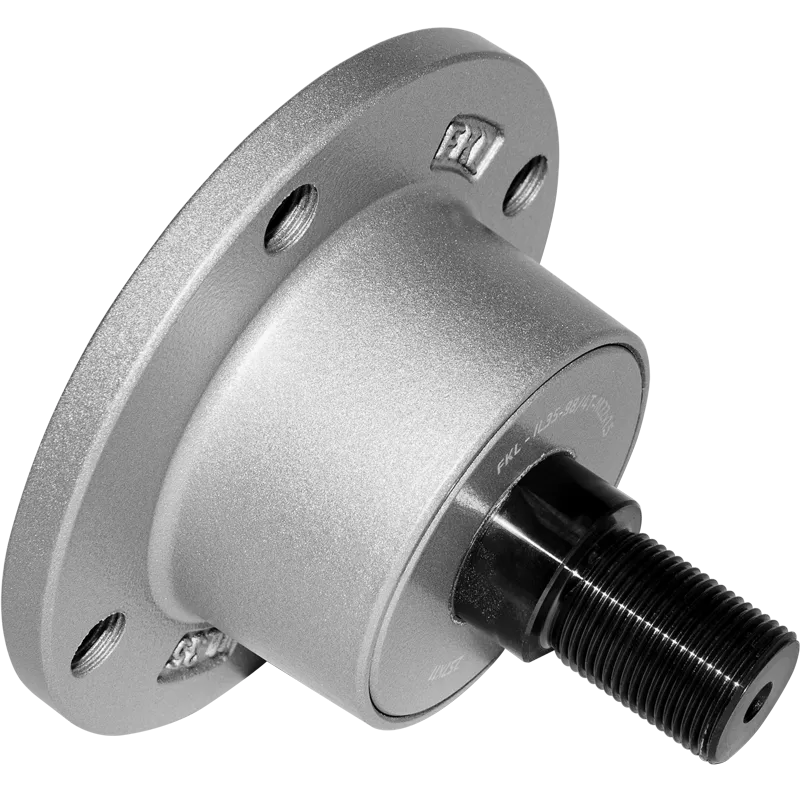

3D view

Technical Specification
J	Pitch circle diameter	100	mm
D	Outside diameter	117	mm
H/T	Hole/Thread	6xM10	mm
d	Shaft diameter	30	mm
C	D-shape hole cut out dimension	27.5	mm
M	Outher Thread	M24x2	mm
L	Total length	91.5	mm
L1	Total flange length	45	mm
E	Length of D shape	14.5	mm
F	Length of threaded part	32	mm
kg	Mass	1.69	kg
Cdyn	Dynamic load rating	37.5	kN
Co	Static load rating	26.5	kN
Pu	Fatigue load limit	1.113	kN

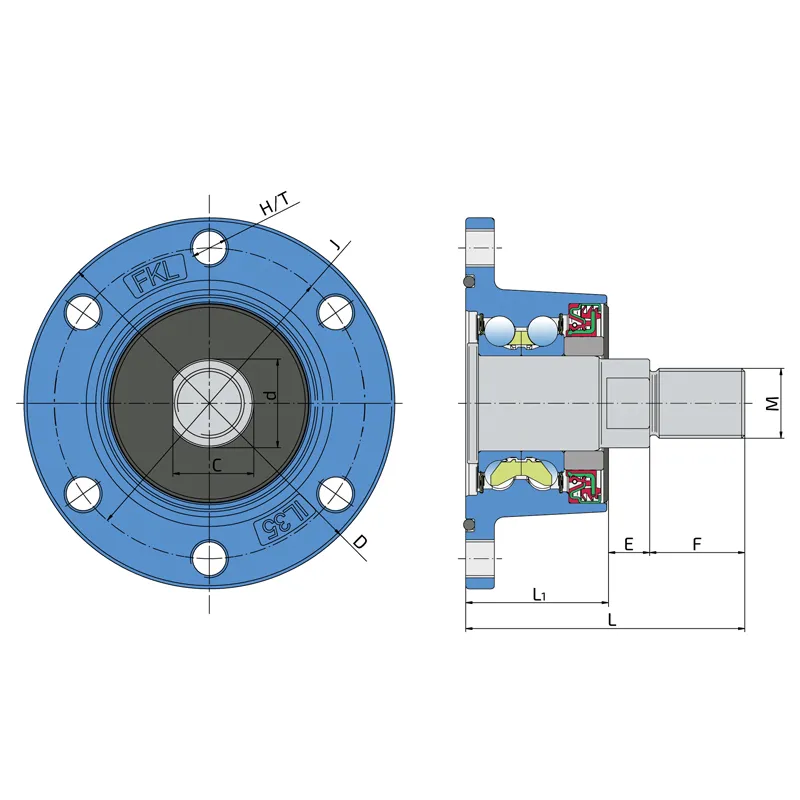

Tehnical Drawing

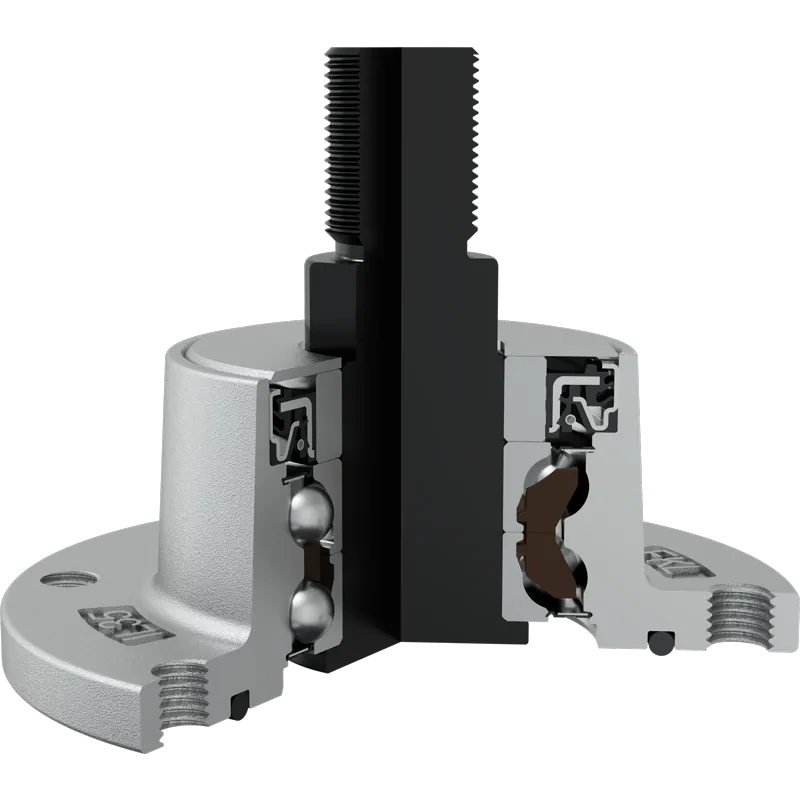

Sealing

O-RING + RS SEAL / RS SEAL + DIRTBLOCK SEAL + SHEET METAL COVER

O-ring and RS seal on the base side and RS seal, Dirtblock seal with Sheet metal cover on the front side which is exposed to contaminants.

O-ring and RS seal together with attached disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. The sheet metal cover provides additional protection for the cassette seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing
