LE 210 2TB
Y-Ball Bearings With Grub Screw Locking

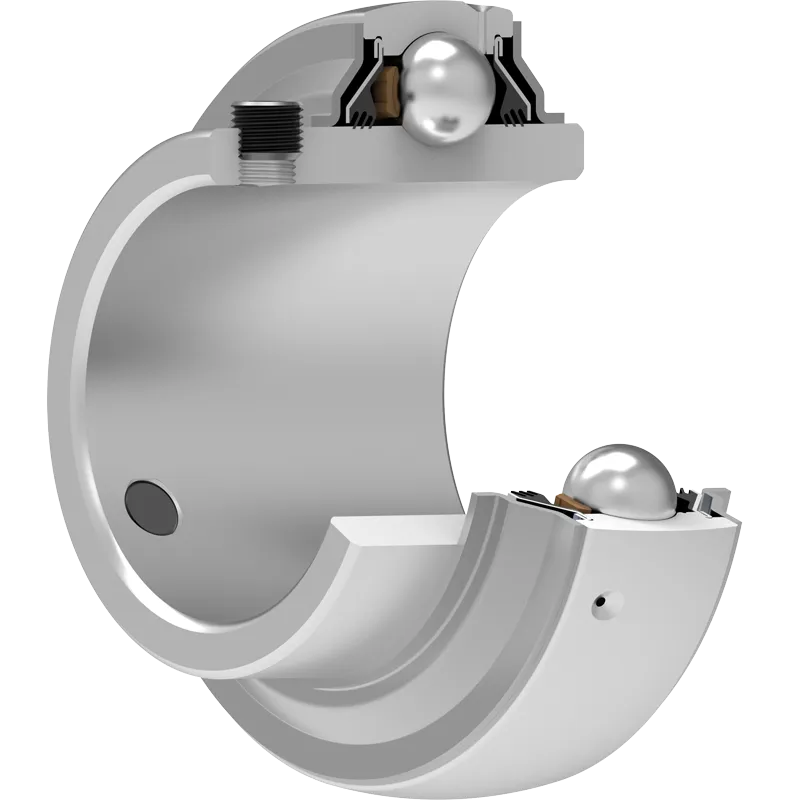

3D view
d | Bore diameter | 50 | mm |
D | Outside diameter | 90 | mm |
B | Width inner ring | 51.6 | mm |
C | Width outer ring | 22 | mm |
s | Distance from inner ring side face to raceway centre | 19 | mm |
d1 | Outer diameter inner ring | 62.5 | mm |
E | Distance from raceway centre to the hole for lubrication | 6.4 | mm |
Gs | Set screw | M10x1 | mm |
sw | Hexagonal key size for set screw | 5 | mm |
r1,2 | Inner ring Chamfer dimension | 1 | mm |
r3,4 | Outside ring Chamfer dimension | 1.5 | mm |
Cdyn | Dynamic load rating | 35.1 | kN |
Co | Static load rating | 23.2 | kN |
Pu | Fatigue load limit | 0.98 | kN |
kg | Mass | 0.69 | kg |
Tehnical Drawing
Sealing
METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
