GW 209PPB30

Round Bore Series With Cylindrical Outer Ring – Relubricable Type

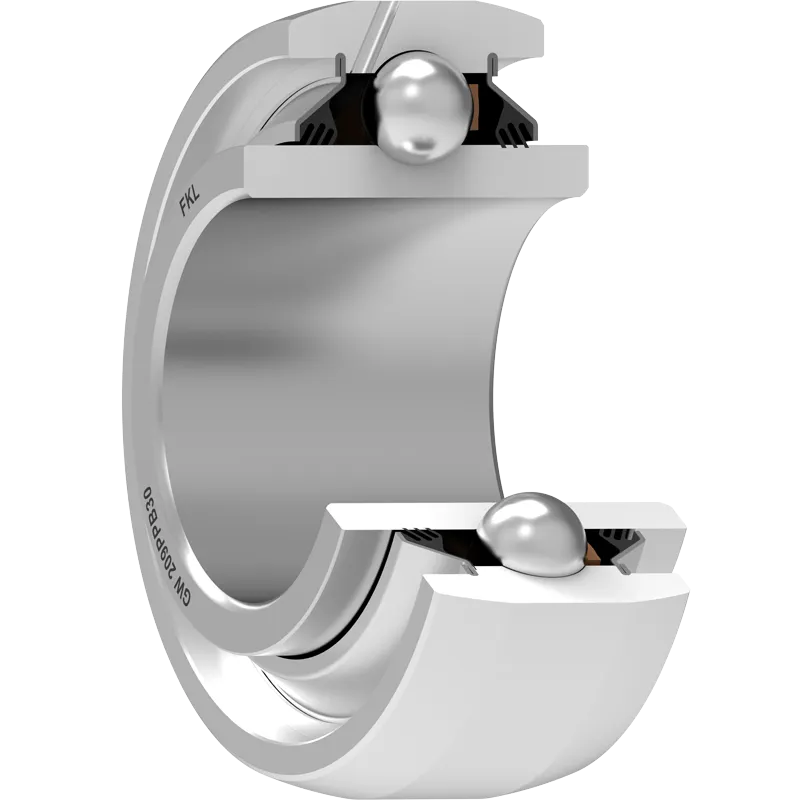

3D view

Technical Specification
dBore diameter1.77inch
dBore diameter44.96mm
DOutside diameter3.492inch
DOutside diameter 88.7mm
BWidth inner ring1.687inch
BWidth inner ring 42.86mm
CWidth outer ring1.25inch
C Width outer ring 32mm
d1Outer diameter inner ring2.228inch
d1Outer diameter inner ring 56.6mm
EDistance from raceway centre to the hole for lubrication0.256inch
EDistance from raceway centre to the hole for lubrication 6.5mm
CdynDynamic load rating32.5kN
CoStatic load rating20.4kN
kgMass0.92kg

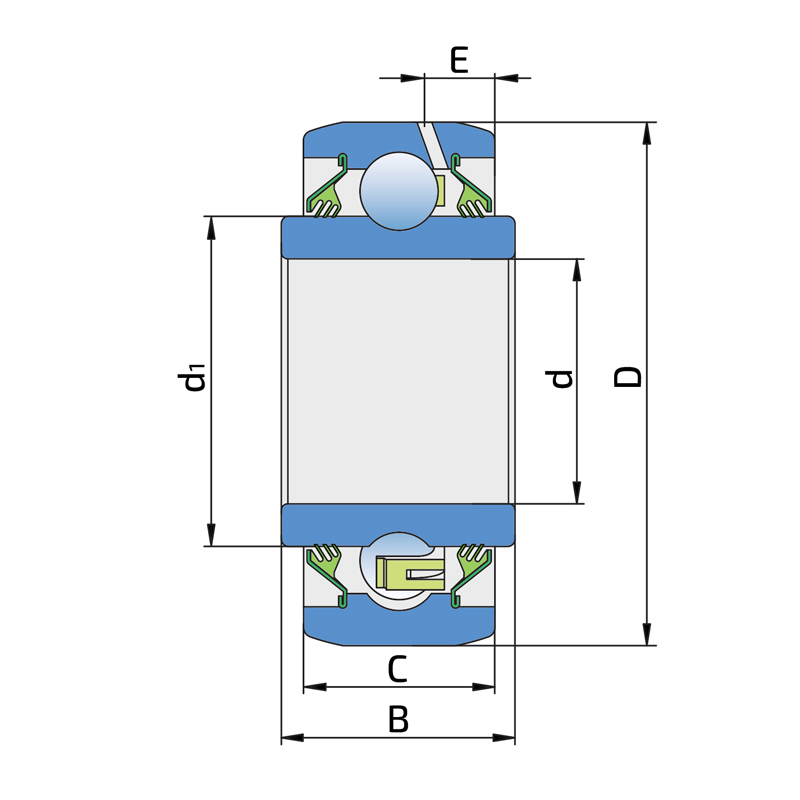

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

Sealing Drawing

GW 209PPB30

×

GW 209PPB30

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.

GW 209PPB30

×
