W 208PP20

Square Bore Series With Cylindrical Outer Ring - Non-Relubricable Type

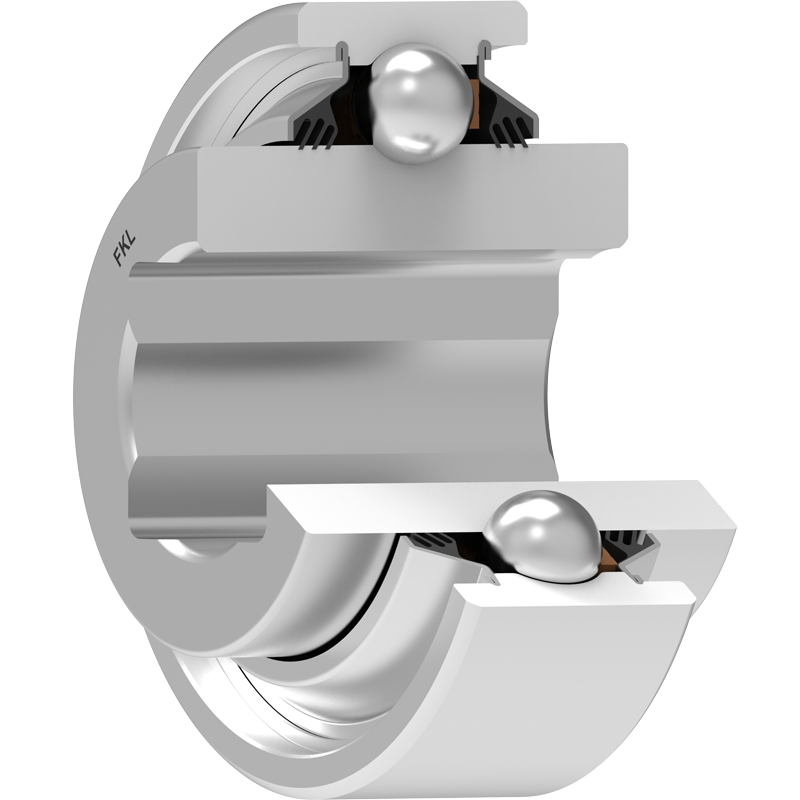

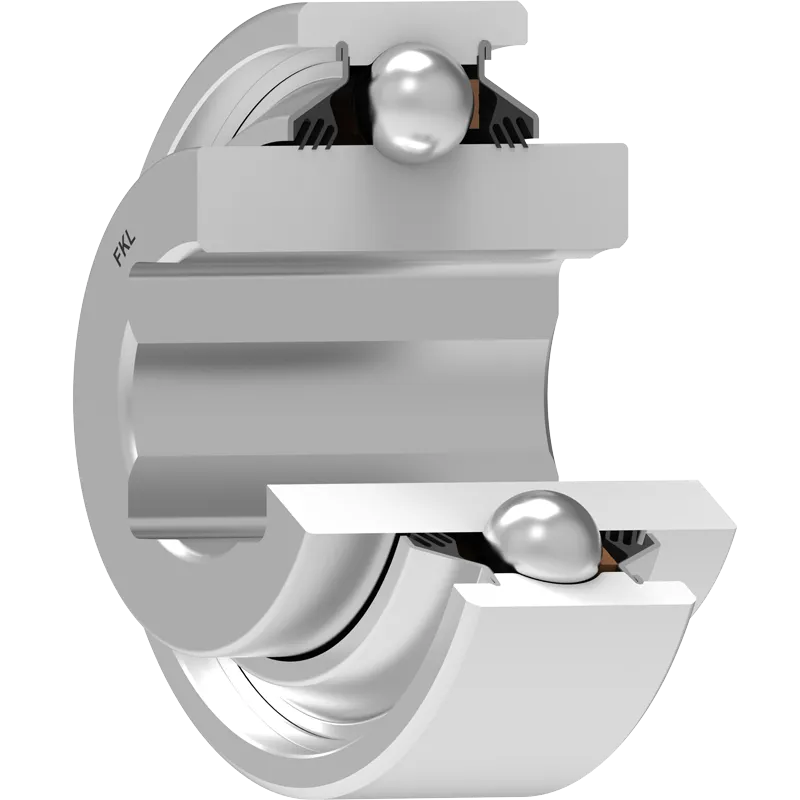

3D view

Technical Specification
DOutside diameter3.1496inch
DOutside diameter 80mm
BWidth inner ring1.437inch
BWidth inner ring 36.5mm
CWidth outer ring0.709inch
C Width outer ring 18mm
d1Outer diameter inner ring2.047inch
d1Outer diameter inner ring 52mm
aShaft size1.1811inch
aShaft size30mm
CdynDynamic load rating32.5kN
CoStatic load rating19.8kN
kgMass0.68kg

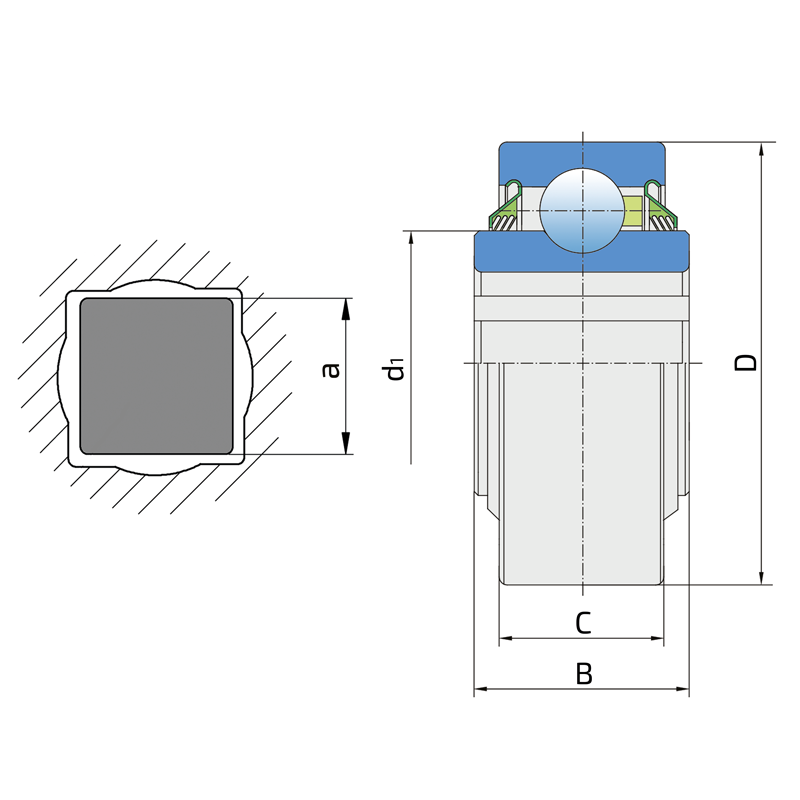

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

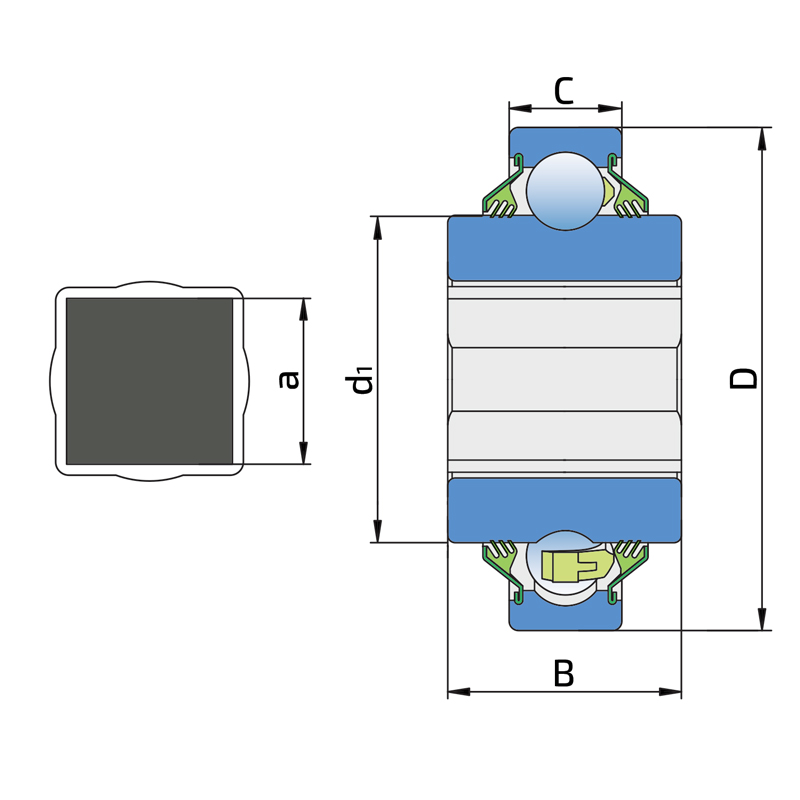

Sealing Drawing

W 208PP20

×

W 208PP20

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.
