W 210PPB4

Square Bore Series With Spherical Outer Ring - Non-Relubricable Type

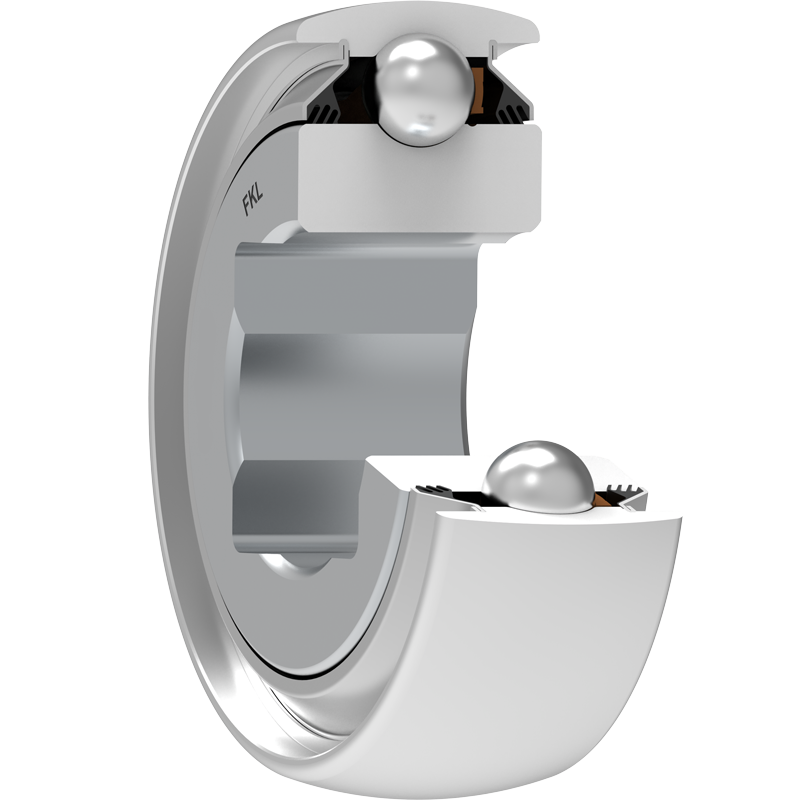

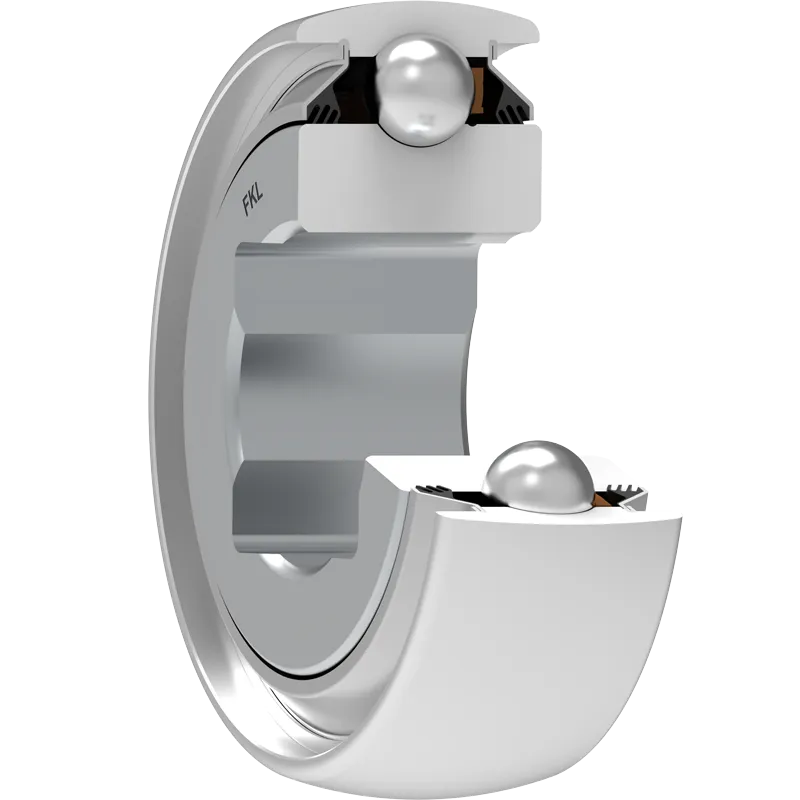

3D view

Technical Specification
DOutside diameter3.5433inch
DOutside diameter 90mm
BWidth inner ring1.188inch
BWidth inner ring 30.18mm
CWidth outer ring1.188inch
C Width outer ring 30.18mm
d1Outer diameter inner ring2.461inch
d1Outer diameter inner ring 62.5mm
aShaft size1 1/8inch
aShaft size28.6mm
CdynDynamic load rating35kN
CoStatic load rating23.2kN
kgMass0.96kg

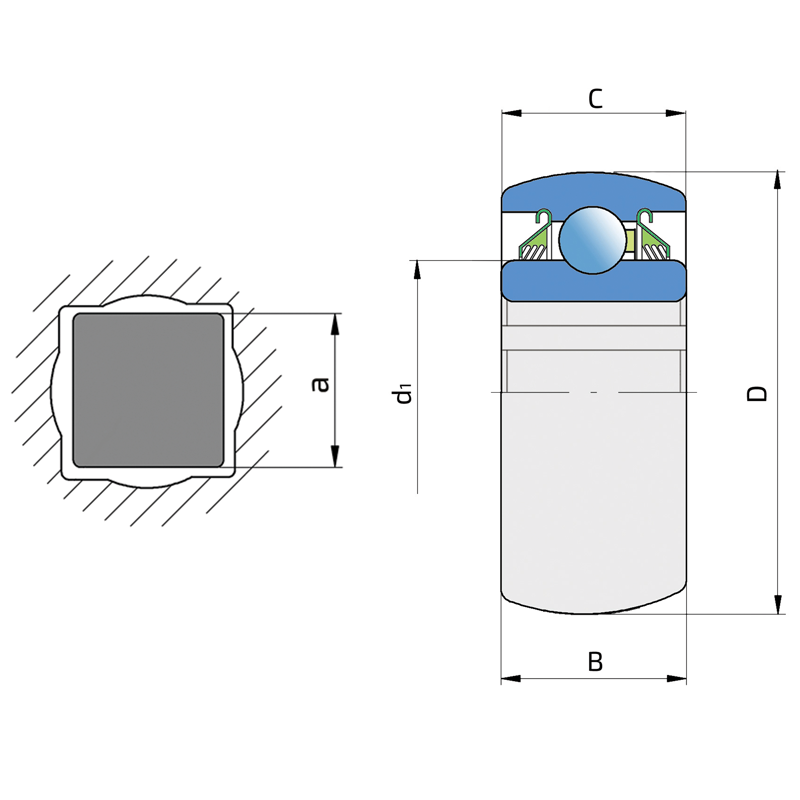

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

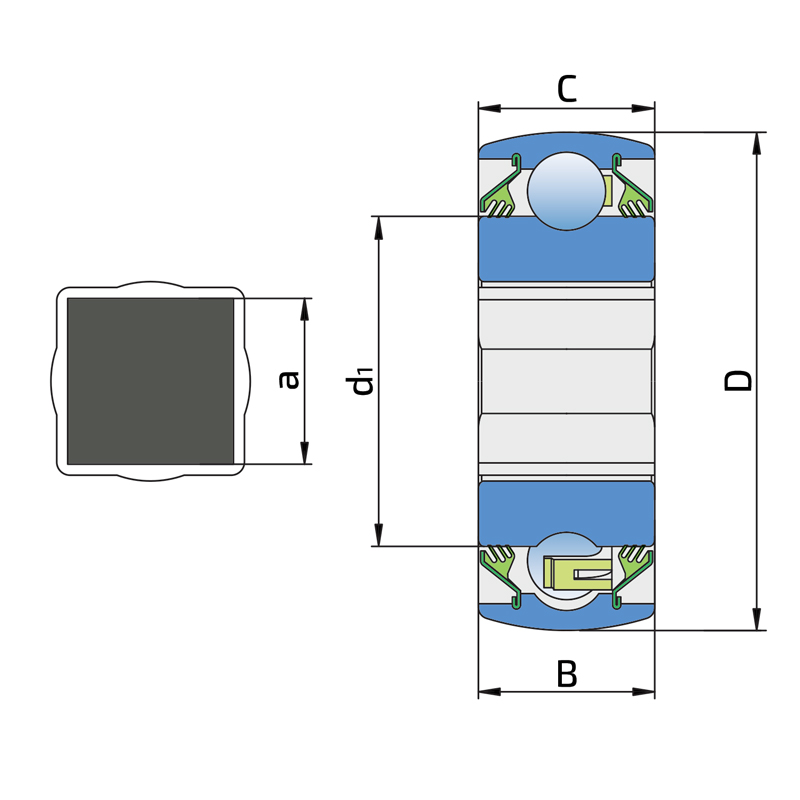

Sealing Drawing

W 210PPB4

×

W 210PPB4

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.
