W 209PPB5

Square Bore Series With Spherical Outer Ring - Non-Relubricable Type

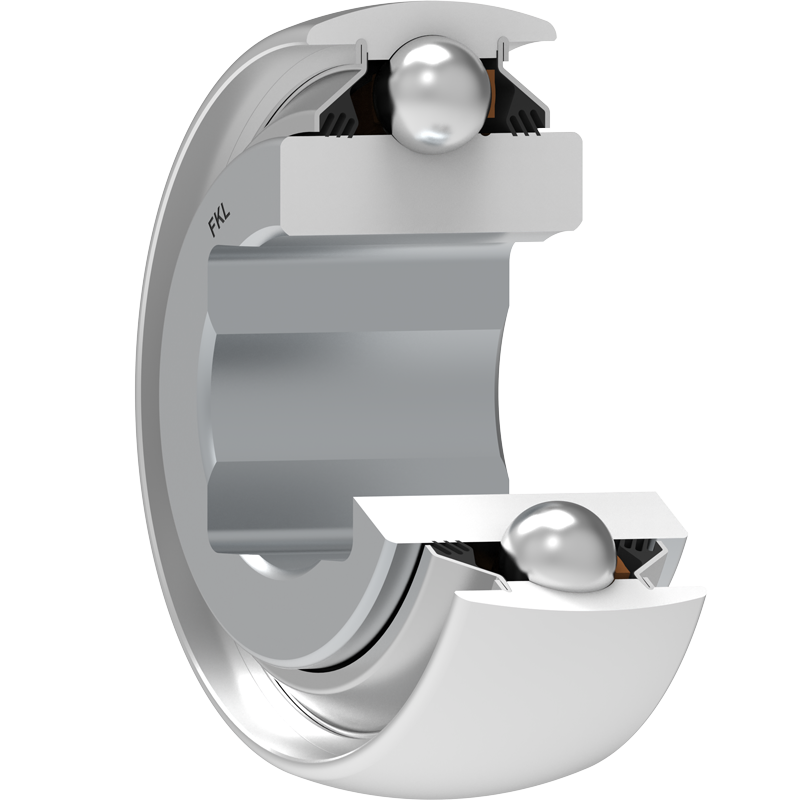

3D view

Technical Specification
DOutside diameter3.3465inch
DOutside diameter 85mm
BWidth inner ring1.438inch
BWidth inner ring 36.5mm
CWidth outer ring1.189inch
C Width outer ring 30.2mm
d1Outer diameter inner ring2.228inch
d1Outer diameter inner ring 56.6mm
aShaft size1.2913inch
aShaft size32.8mm
CdynDynamic load rating32.5kN
CoStatic load rating20.4kN
kgMass0.79kg

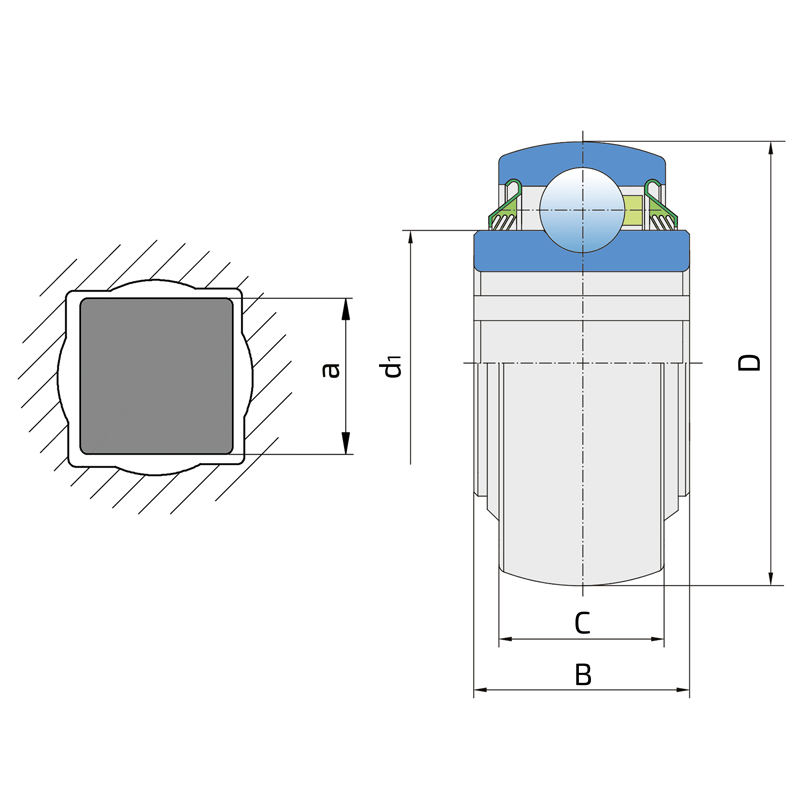

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

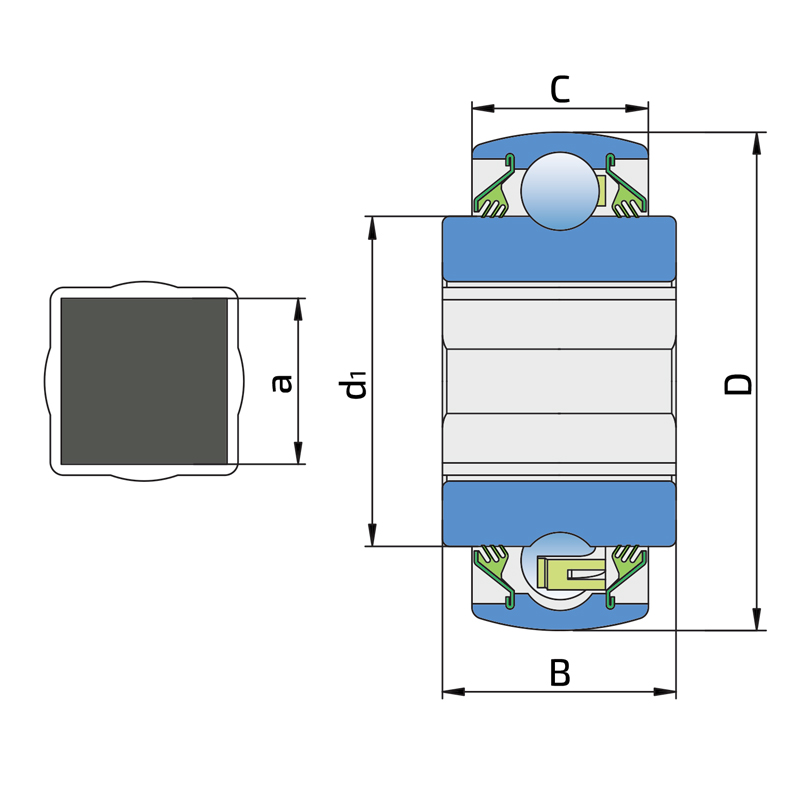

Sealing Drawing

W 209PPB5

×

W 209PPB5

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.
