W 208PPB18

Square Bore Series With Spherical Outer Ring - Non-Relubricable Type

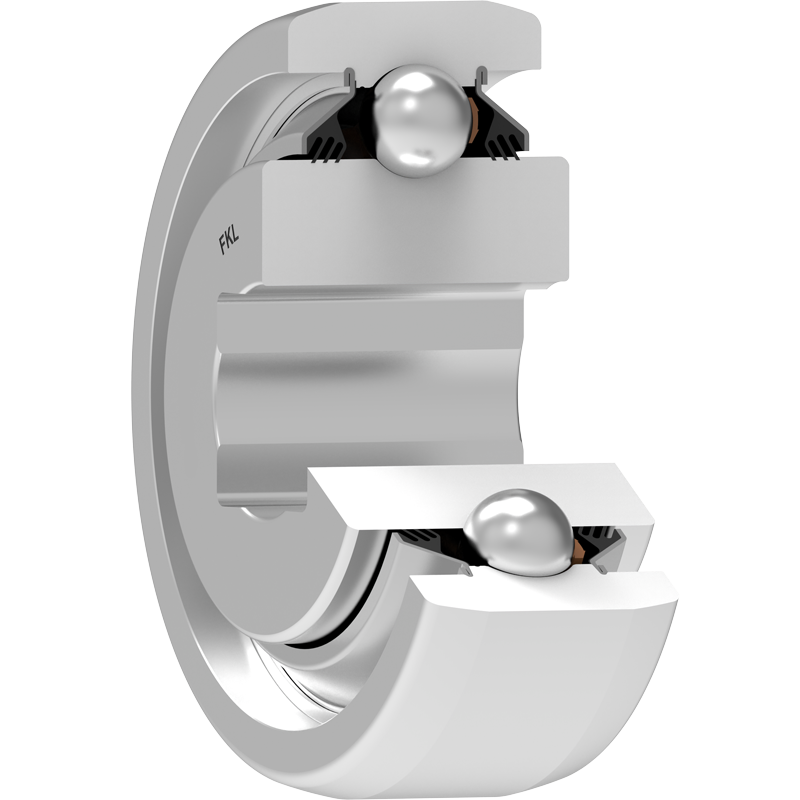

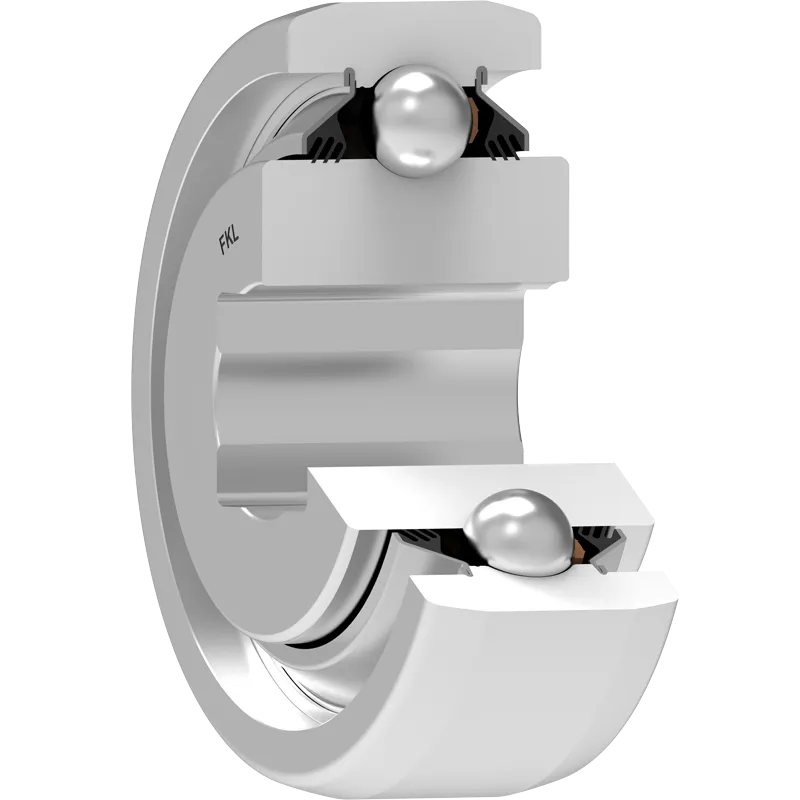

3D view

Technical Specification
DOutside diameter3.4386inch
DOutside diameter 87.34mm
BWidth inner ring1.438inch
BWidth inner ring 36.5mm
CWidth outer ring1.188inch
C Width outer ring 30.18mm
d1Outer diameter inner ring2.047inch
d1Outer diameter inner ring 52mm
aShaft size7/8inch
aShaft size22.2mm
kgMass0.93kg
CdynDynamic load rating32.5kN
CoStatic load rating19.8kN
PuFatigue load limit0.832kN

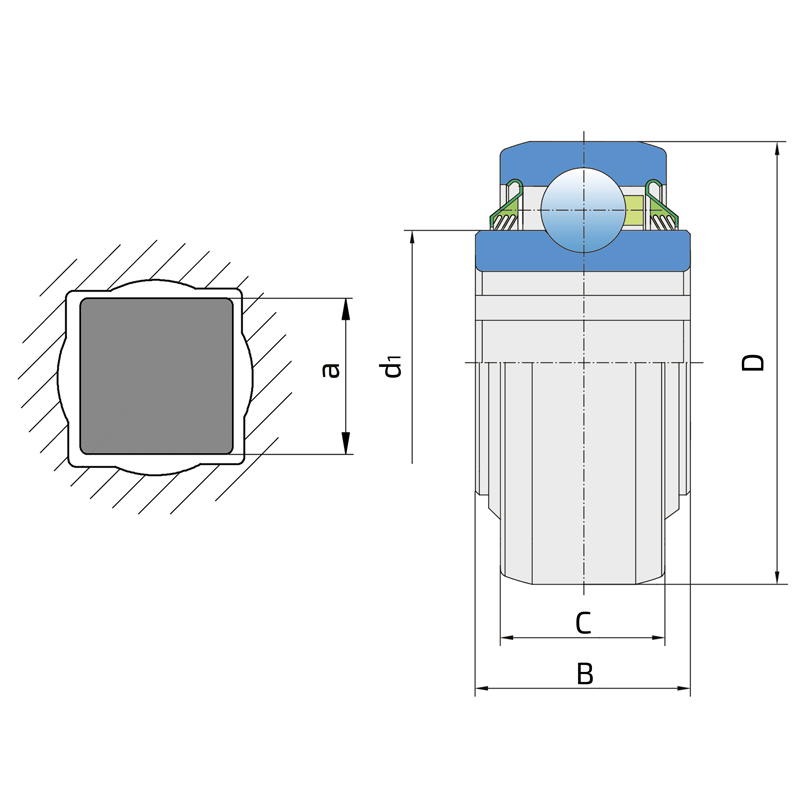

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

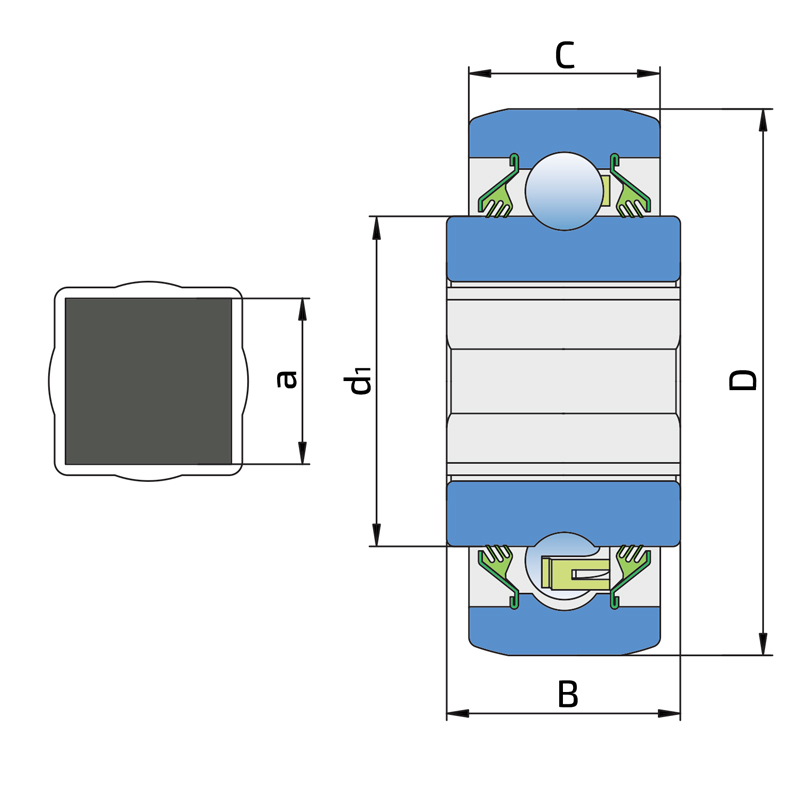

Sealing Drawing

W 208PPB18

×

W 208PPB18

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.
