W 210PPB5

Round Bore Series With Spherical Outer Ring - Non-Relubricable Type

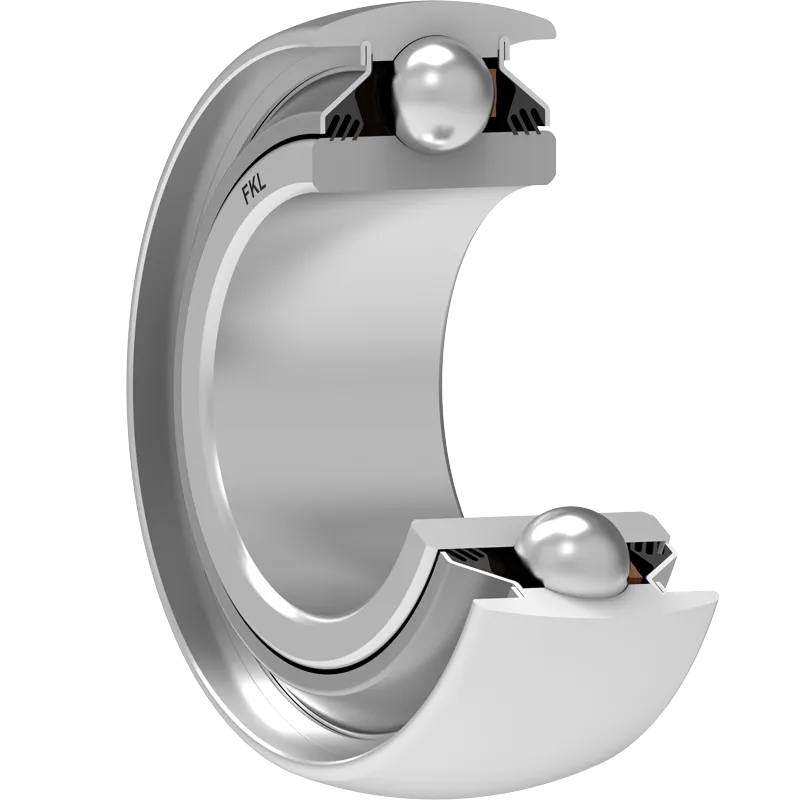

3D view

Technical Specification
dBore diameter1.785inch
dBore diameter45.34mm
DOutside diameter3.5433inch
DOutside diameter 90mm
BWidth inner ring1.188inch
BWidth inner ring 30.18mm
CWidth outer ring1.188inch
C Width outer ring 30.18mm
d1Outer diameter inner ring2.461inch
d1Outer diameter inner ring 62.5mm
kgMass0.79kg
CdynDynamic load rating35kN
CoStatic load rating23.2kN
PuFatigue load limit0.974kN

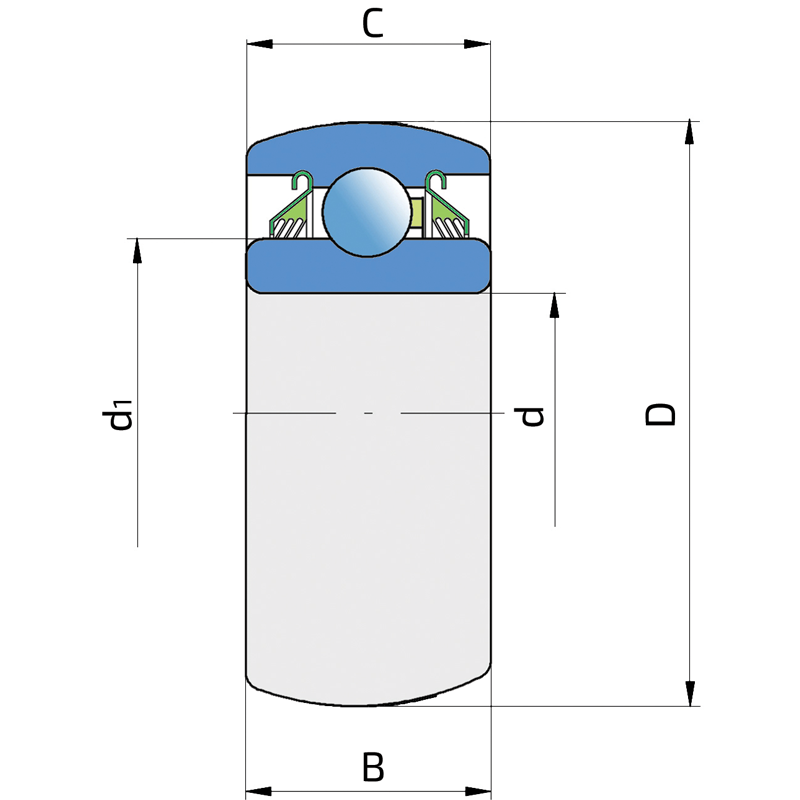

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

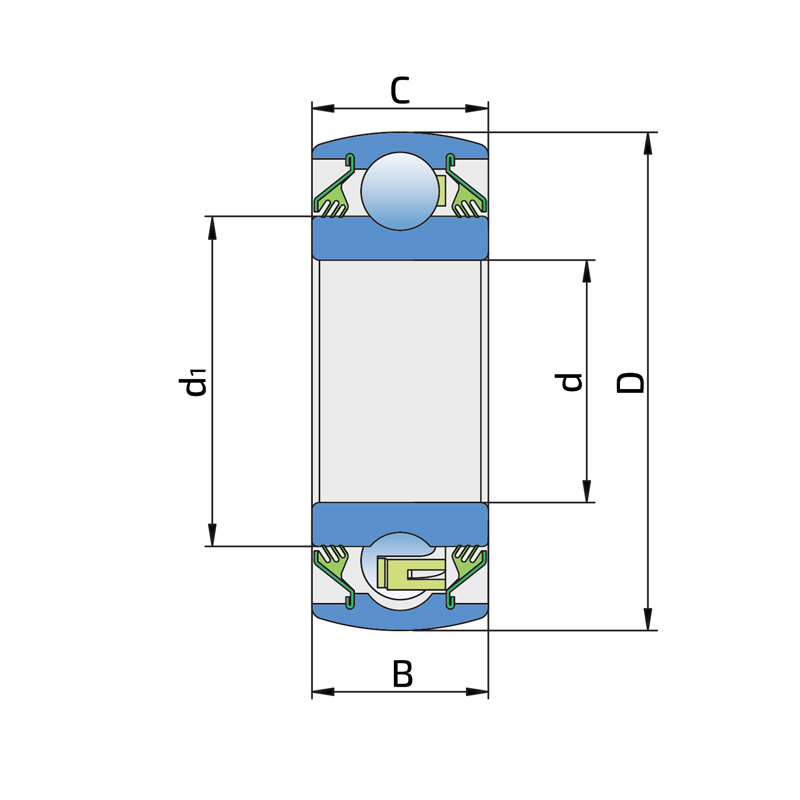

Sealing Drawing

W 210PPB5

×

W 210PPB5

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.
