LSNR 207 TBS

Bearing Unit

Application: Packer Roller

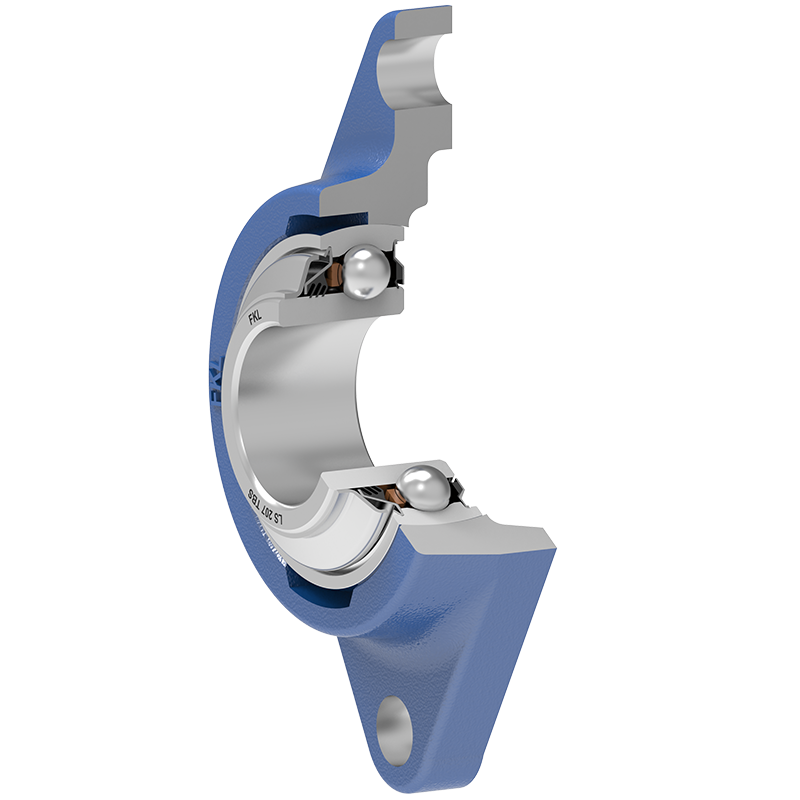

3D view

Technical Specification
dBore diameter35mm
HHousing height155mm
LTotal length93mm
JPitch circle diameter130mm
AOverall width40mm
A1Total housing width31mm
A2Housing flange thickness13mm
BWidth inner ring 28.3mm
NHole diameter14mm
kgMass1.05kg
CoStatic load rating15.3kN
CdynDynamic load rating25.5kN
PuFatigue load limit1.071kN

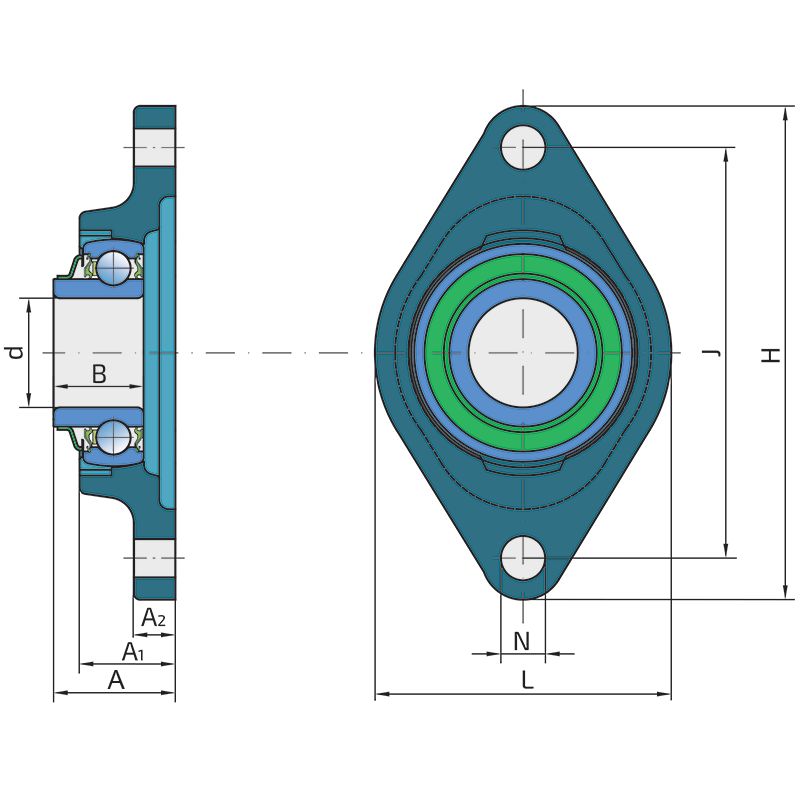

Tehnical Drawing

Sealing

S SEAL / T SEAL+METAL FLINGER RING

S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.

The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.

Sealing Drawing

LSNR 207 TBS

×

LSNR 207 TBS

×

Sealing Type:

S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.
