LSNR 205 2T

Bearing Unit

Application: Packer Roller

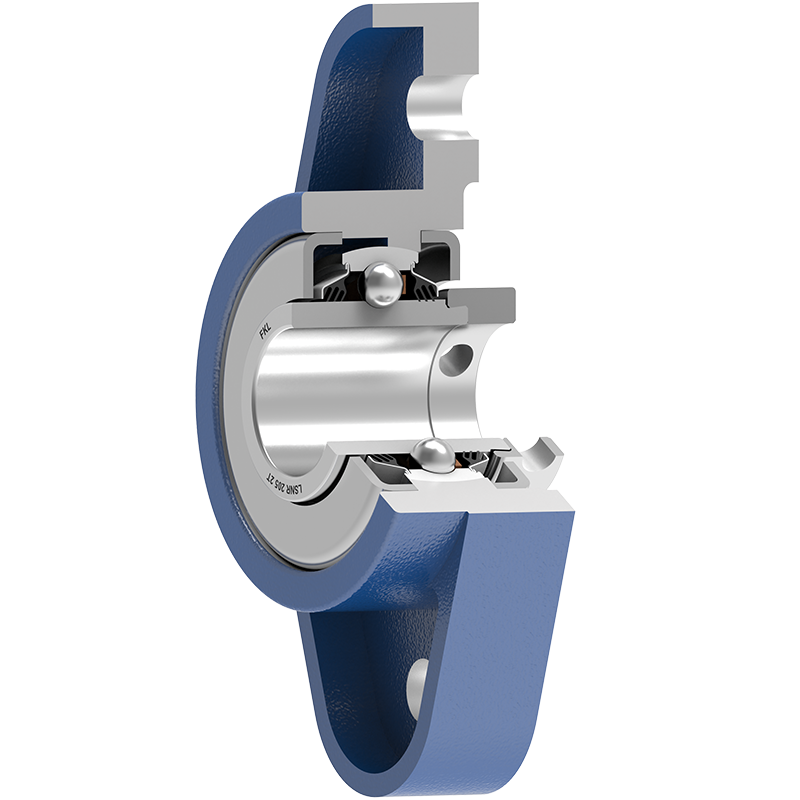

3D view

Technical Specification
dBore diameter25mm
HHousing height135mm
LTotal length71mm
JDistance between the holes99mm
AOverall width35mm
A2Housing flange thickness21mm
BWidth inner ring 34.8mm
NHole diameter11mm
kgMass0.91kg
CdynDynamic load rating14kN
CoStatic load rating7.8kN
PuFatigue load limit0.328kN

Tehnical Drawing

Sealing

METAL COVER RING+T SEAL / T SEAL+METAL COVER RING

3-lip seal on the base side and 3-lip seal with Metal cover ring on the front side which is exposed to contaminants.

The 3-lip seal on the both side protects the bearing from contaminants. The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.

Sealing Drawing

LSNR 205 2T

×

LSNR 205 2T

×

Sealing Type:

3-lip seal on the base side and 3-lip seal with Metal cover ring on the front side which is exposed to contaminants.
