LSGR 205 FS

Bearing Unit

Application: Packer Roller

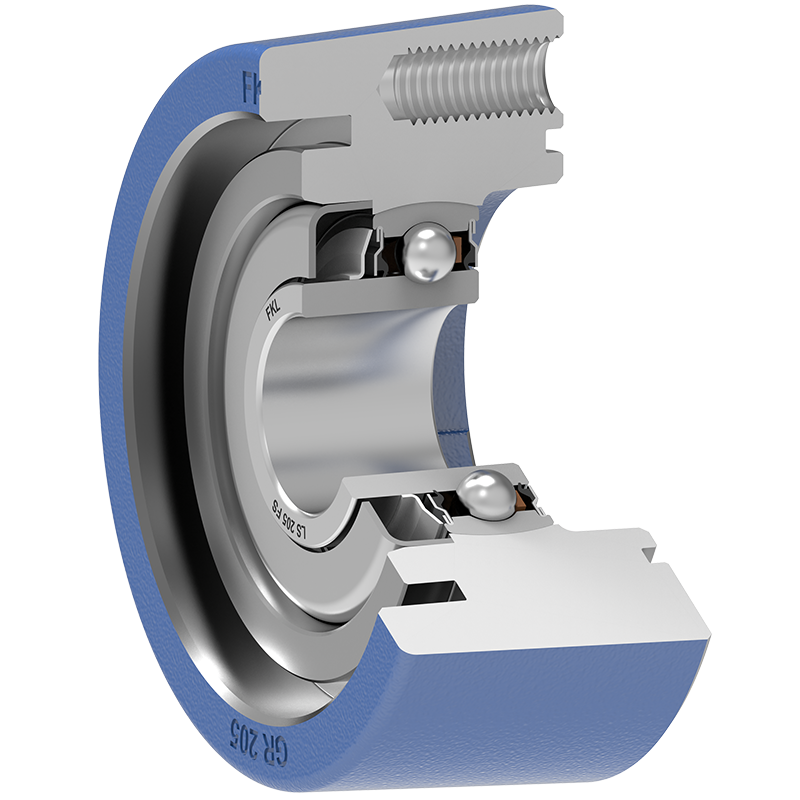

3D view

Technical Specification
dBore diameter25mm
DOutside diameter 99mm
JPitch circle diameter82mm
H/THole/ThreadM10mm
AOverall width43mm
BWidth inner ring 25mm
EDistance from housing flange to bearing face12mm
kgMass1.55kg
CdynDynamic load rating14kN
CoStatic load rating7.8kN
PuFatigue load limit0.328kN

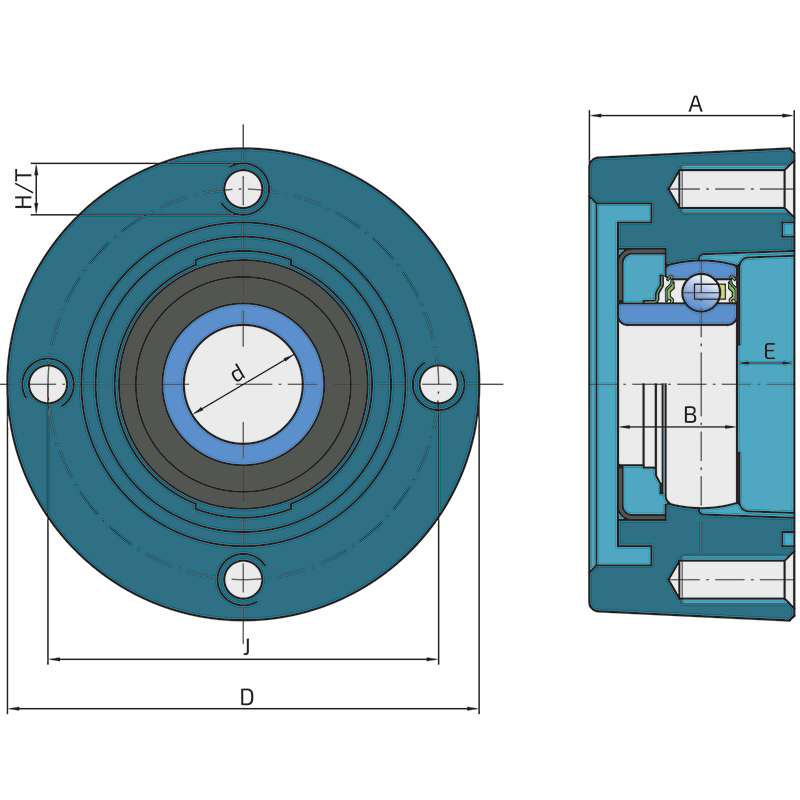

Tehnical Drawing

Sealing

METAL COVER RING+METAL FLINGER RING+S SEAL / S SEAL

S seal on the base side and S seal with Metal flinger ring and Metal cover ring on the front side which is exposed to contaminants.

The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.

Sealing Drawing

LSGR 205 FS

×

LSGR 205 FS

×

Sealing Type:

S seal on the base side and S seal with Metal flinger ring and Metal cover ring on the front side which is exposed to contaminants.
