LSQFR 309 2TB.H.T

Bearing Unit

Application: Packer Roller

3D view

Technical Specification
dBore diameter45mm
LTotal length137mm
JDistance between the holes105mm
H/THole/Thread14mm
AOverall width54mm
A1Total housing width44mm
A2Housing flange thickness22mm
BWidth inner ring 51.1mm
kgMass3.4kg
CoStatic load rating59.6kN
CdynDynamic load rating80.8kN
PuFatigue load limit2.503kN

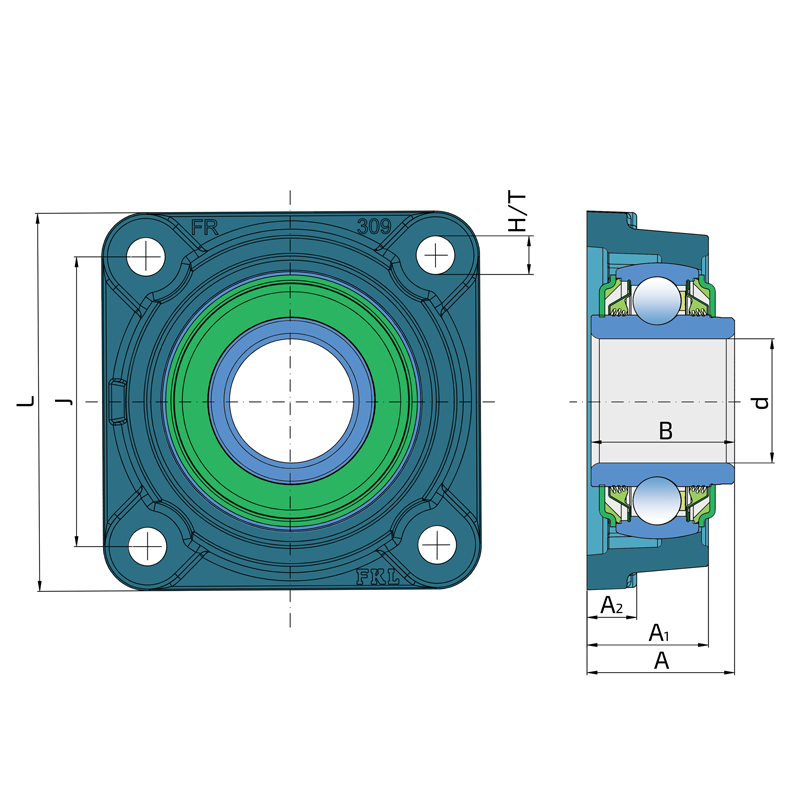

Tehnical Drawing

Sealing

RUBBERIZED FLINGER + T SEAL / T SEAL + RUBBERIZED FLINGER

Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants.

The 3-lip seal protects the bearing from contaminant penetration. The rubberized flinger protects the seal from mechanical damage and provides additional sealing.

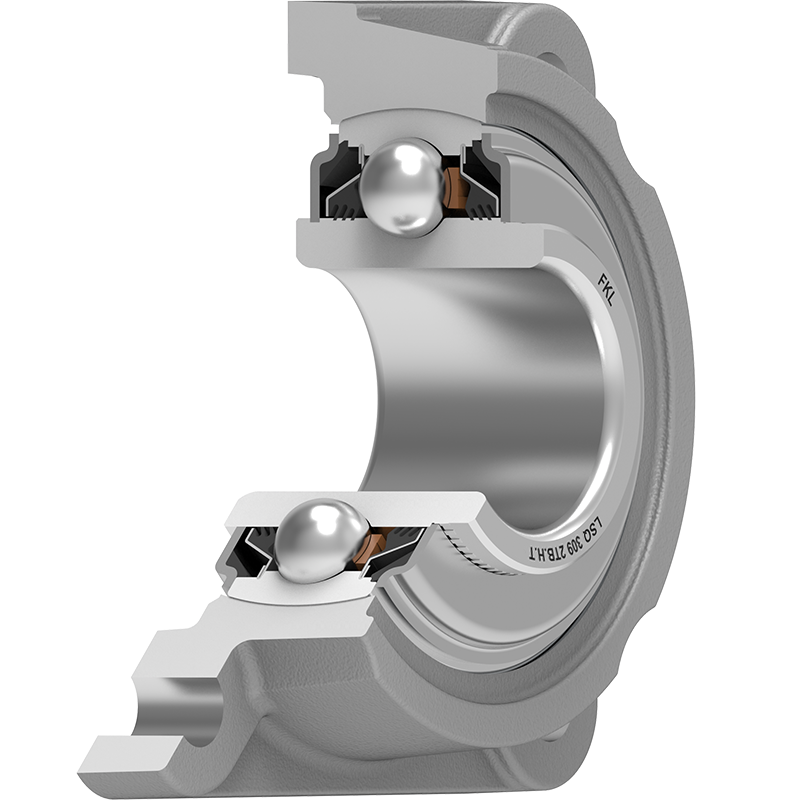

Sealing Drawing

LSQFR 309 2TB.H.T

×

LSQFR 309 2TB.H.T

×

Sealing Type:

Rubberized flinger with 3-lip seal on the base side and 3-lip seal with rubberized flinger on the front side which is exposed to contaminants.
