Special Program for Agriculture

LSQFH 210 ED2.H

Bearing Unit

Application: Packer Roller

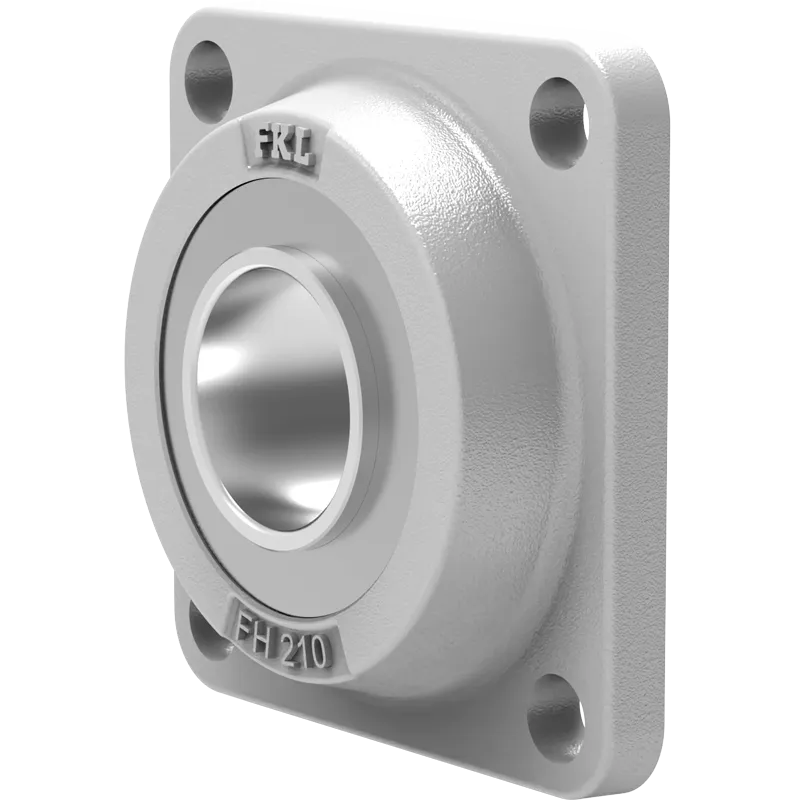

3D view

Technical Specification
d	Bore diameter	50	mm
A	Overall width	38.5	mm
A1	Total housing width	35.5	mm
A2	Housing flange thickness	13	mm
J	Distance between the holes	111	mm
L	Total length	143	mm
N	Diameter of attachment slot	17	mm
α	Contact angle	50	°
kg	Mass	2.6	kg
Cdyn	Dynamic load rating	56	kN
Co	Static load rating	45	kN
Pu	Fatigue load limit	1.89	kN

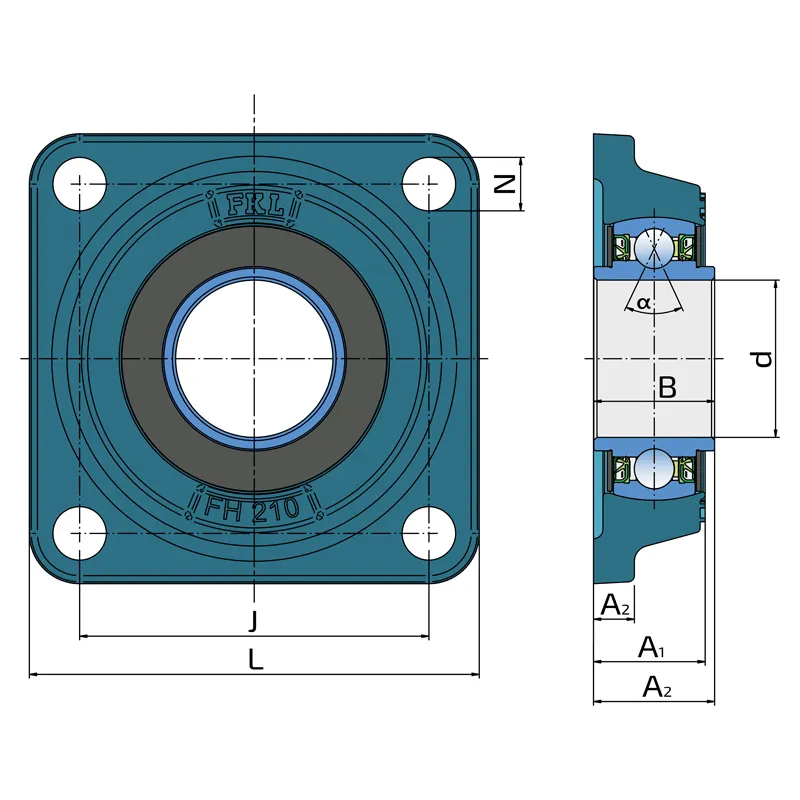

Technical Drawing

Sealing

SHEET METAL SHIELD + CASSETTE SEAL / CASSETTE SEAL + SHEET METAL SHIELD

The sheet metal shield and cassette seal are fitted on both sides of the bearing, providing reliable protection against dust, dirt and other contaminants while maintaining low friction. This sealing arrangement supports reliable bearing operation and helps prevent contaminants from entering the bearing assembly. The combination of a metal shield and a cassette seal is an effective solution for applications where bearing protection, low friction and long service life are essential.

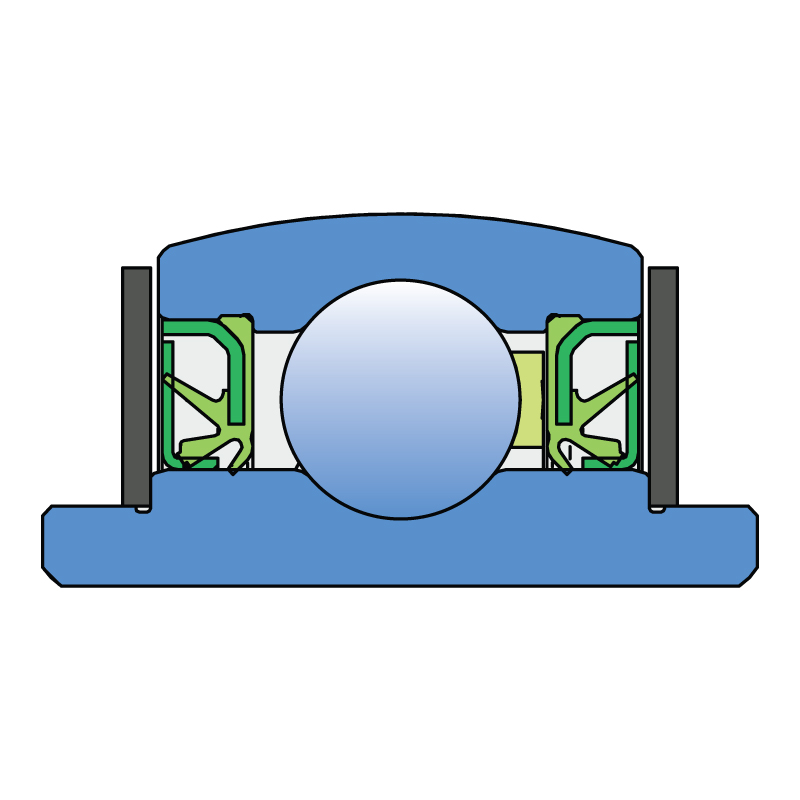

Sealing Drawing

Download PDF Download STP

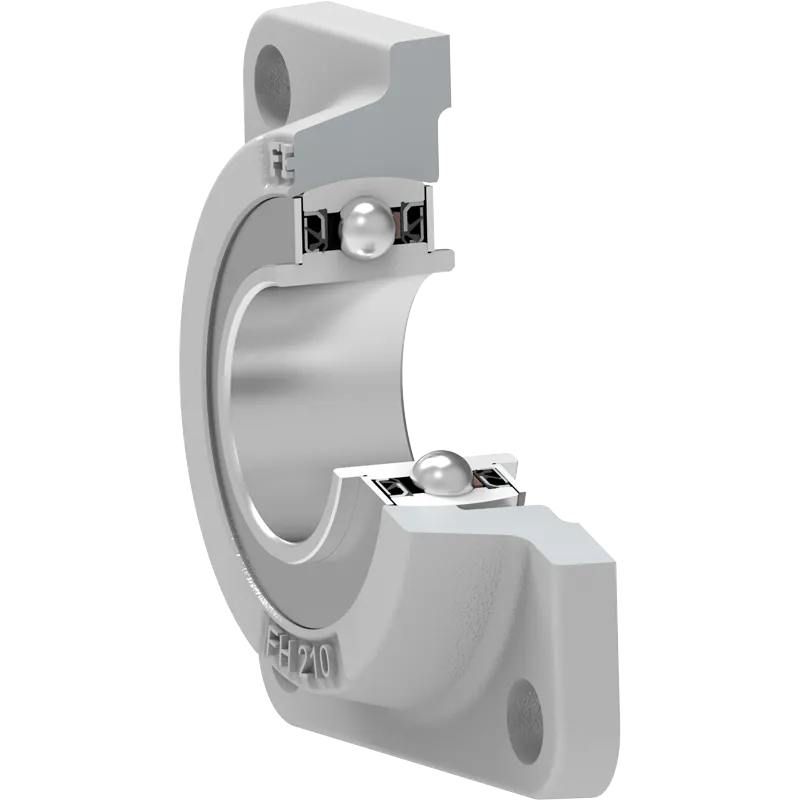

3D Viewer
