SL 5204 2T.C28
Ball Bearing
Application: Seeding Machine

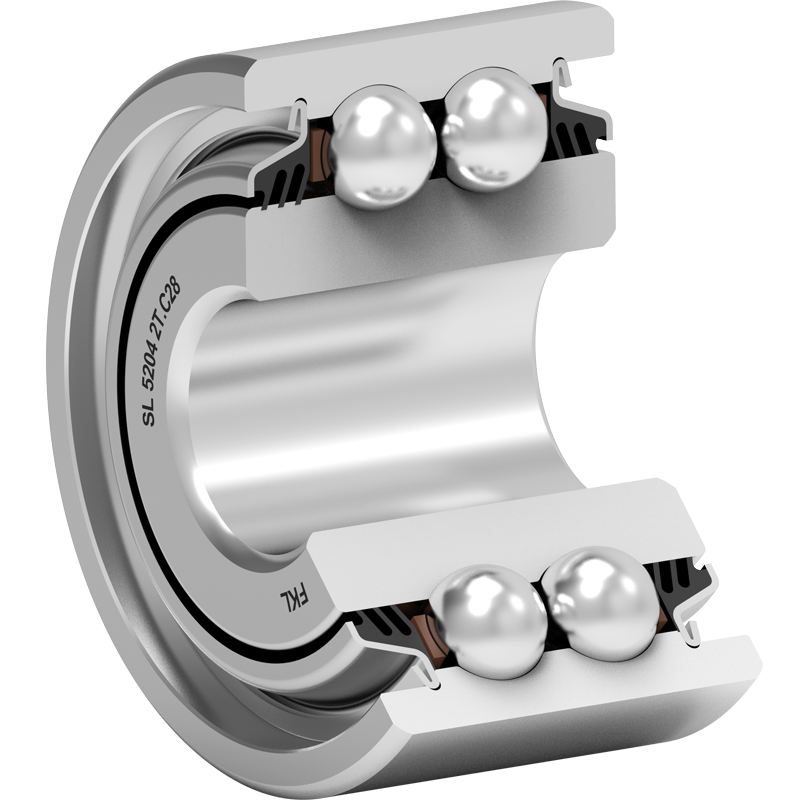

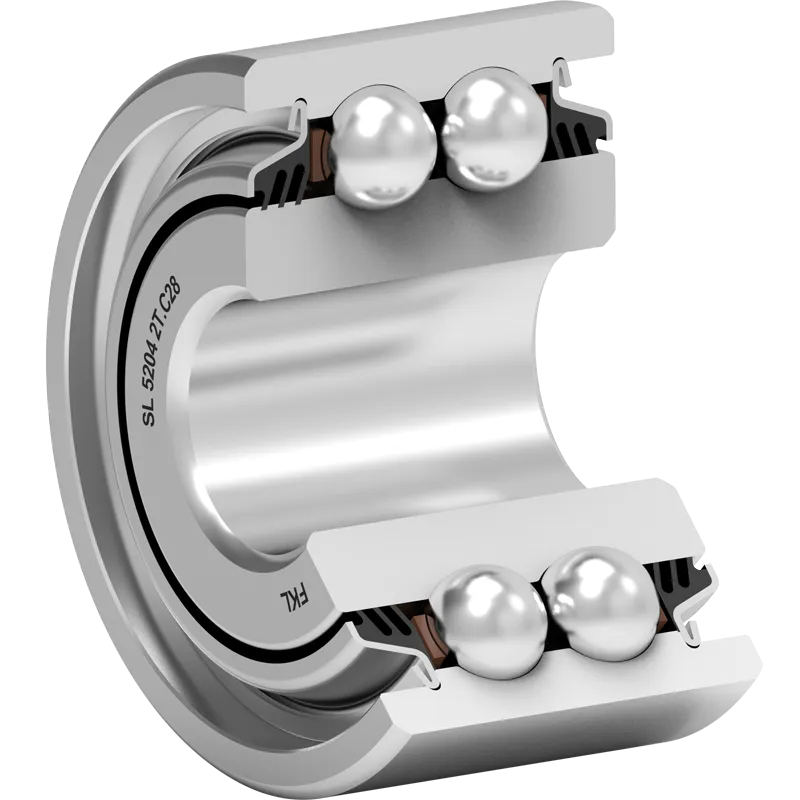

3D view
| d | Bore diameter | 16.13 | mm |
| D | Outside diameter | 47 | mm |
| C | Width outer ring | 28 | mm |
| kg | Mass | 0.23 | kg |
| Cdyn | Dynamic load rating | 18.8 | kN |
| Co | Static load rating | 12.6 | kN |
| Pu | Fatigue load limit | 0.529 | kN |

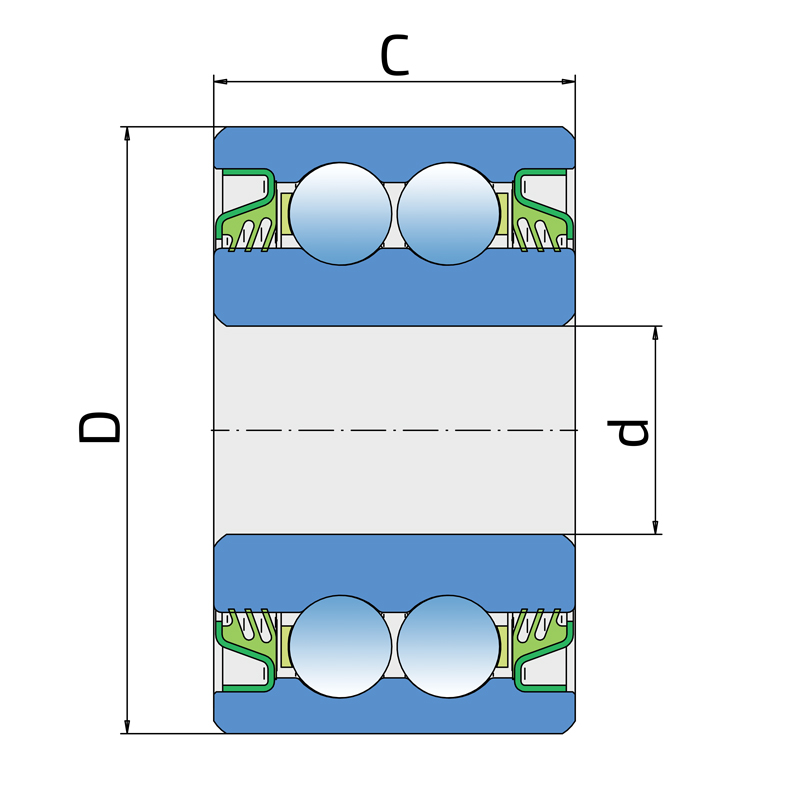

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

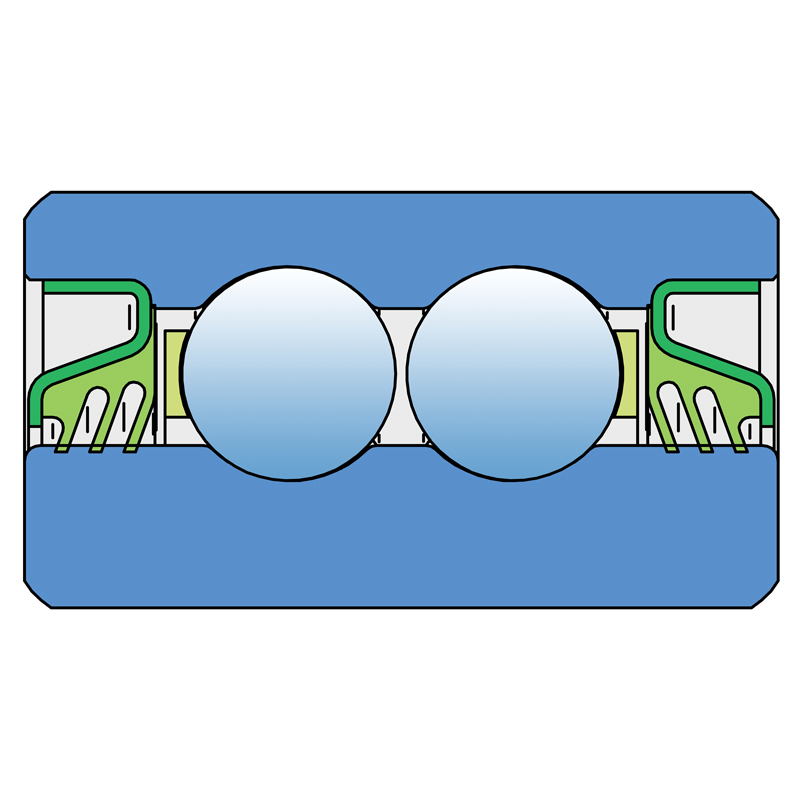

Sealing Drawing
