LSFN 207 TBS
Bearing Unit
Application: Packer Roller

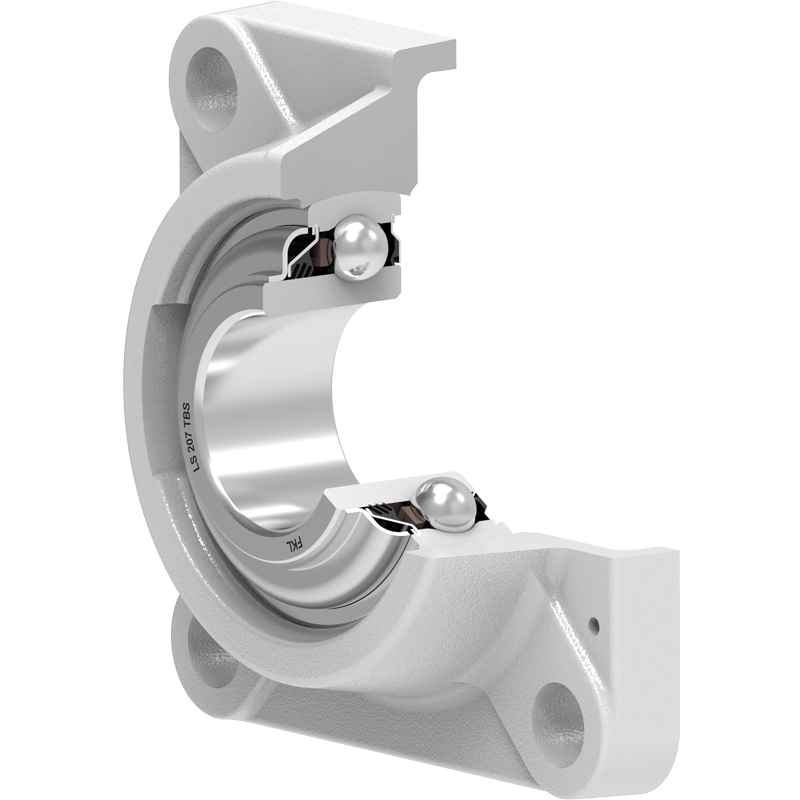

3D view
| d | Bore diameter | 35 | mm |
| d1 | Outer diameter inner ring | 46.1 | mm |
| L | Total length | 118 | mm |
| J | Distance between the holes | 92 | mm |
| N | Hole diameter | 14 | mm |
| A | Overall width | 37.8 | mm |
| A1 | Total housing width | 34 | mm |
| A2 | Housing flange thickness | 11 | mm |
| B | Width inner ring | 28.3 | mm |
| kg | Mass | 1.45 | kg |
| Cdyn | Dynamic load rating | 25.5 | kN |
| Co | Static load rating | 15.3 | kN |
| Pu | Fatigue load limit | 0.643 | kN |

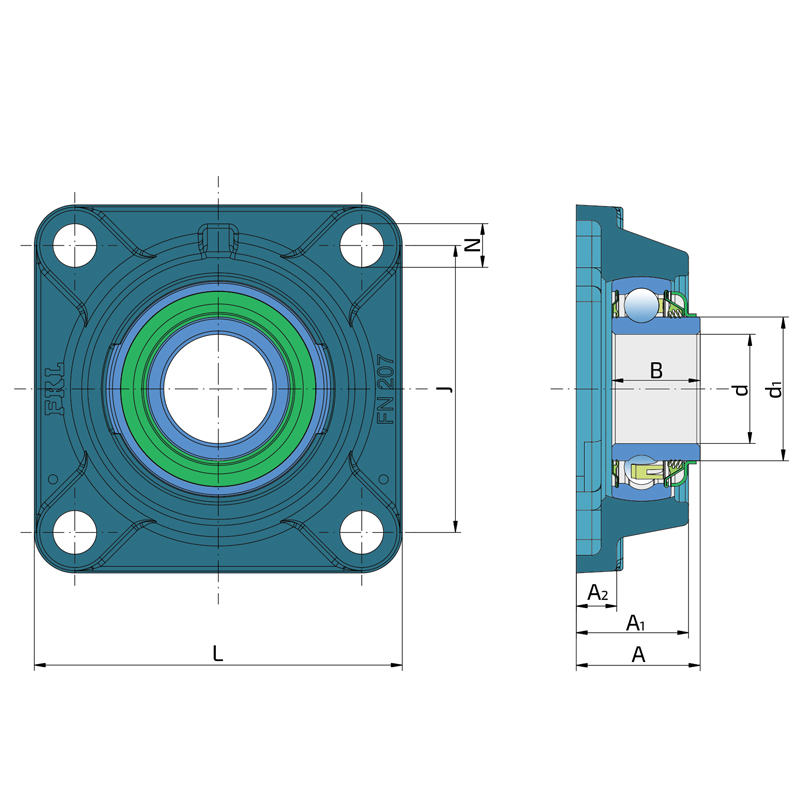

Tehnical Drawing
Sealing
S SEAL / T SEAL+METAL FLINGER RING
S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
