SL 5204/20-2T
Double Row Angular Contact Ball Bearing
Application: Seeder

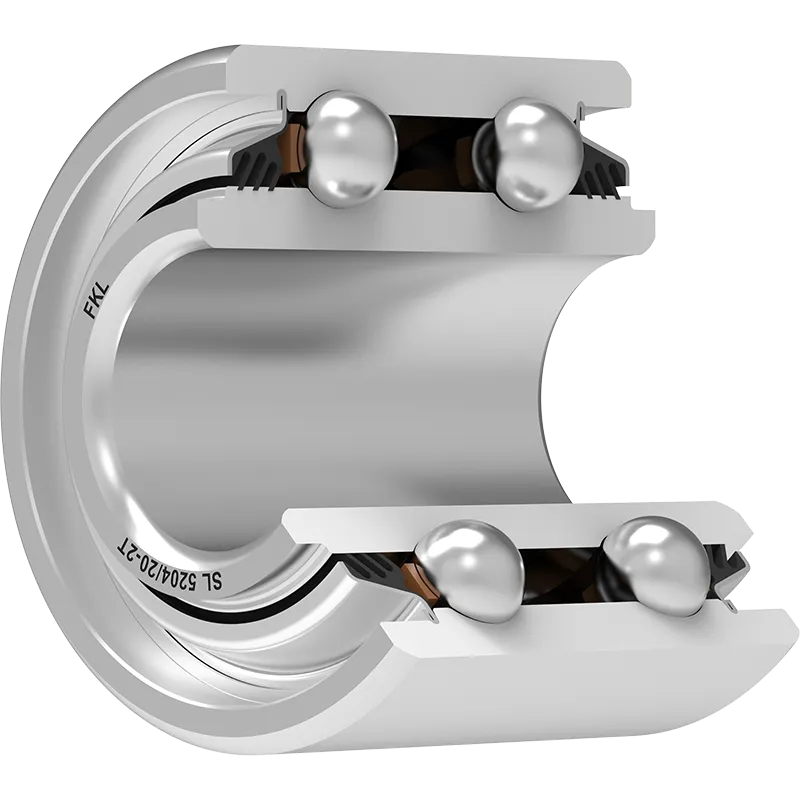

3D view
| d | Bore diameter | 20 | mm |
| d1 | Inner ring outside diameter | 27 | mm |
| D | Outside diameter | 47 | mm |
| B | Width inner ring | 44 | mm |
| C | D-shape hole cut out dimension | 39 | mm |
| α | Contact angle | 25 | ° |
| kg | Mass | 0.29 | kg |
| Cdyn | Dynamic load rating | 18.8 | kN |
| Co | Static load rating | 12.6 | kN |
| Pu | Fatigue load limit | 0.529 | kN |
Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
