SL 5204/16.25-2T

Double Row Angular Contact Ball Bearing

Application: Precision planter

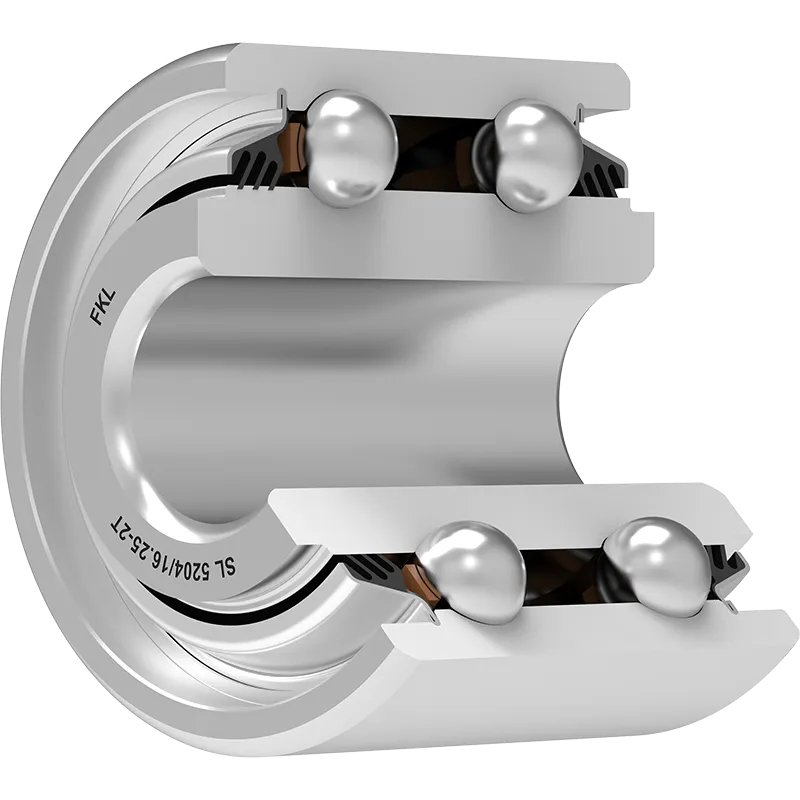

3D view

Technical Specification
dBore diameter16.25mm
d1Inner ring outside diameter27mm
DOutside diameter 47mm
BWidth inner ring 44mm
C Width outer ring 39mm
αContact angle25°
kgMass0.326kg
CdynDynamic load rating18.8kN
CoStatic load rating12.6kN
PuFatigue load limit0.529kN

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

Sealing Drawing

SL 5204/16.25-2T

×

SL 5204/16.25-2T

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.
