T-126
Roller bearing
Application: Lift Arm End Bearing

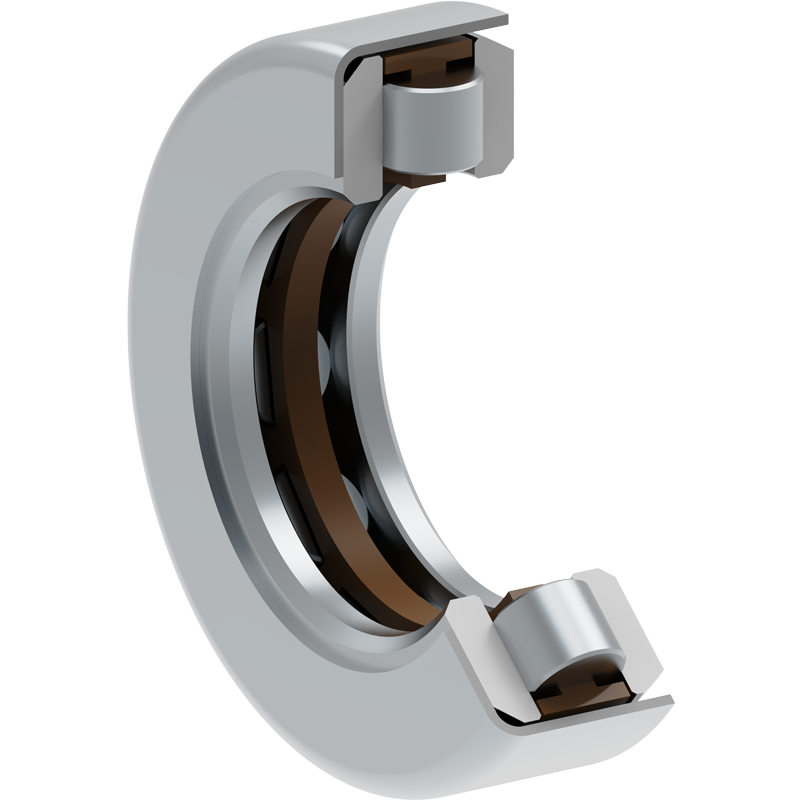

3D view
| D | Outside diameter | 55.6 | mm |
| d | Bore diameter | 31.9 | mm |
| L2 | Bearing width | 15.75 | mm |
| kg | Mass | 0.146 | kg |
| Cdyn | Dynamic load rating | 49 | kN |
| Co | Static load rating | 126 | kN |
| Pu | Fatigue load limit | 5.292 | kN |

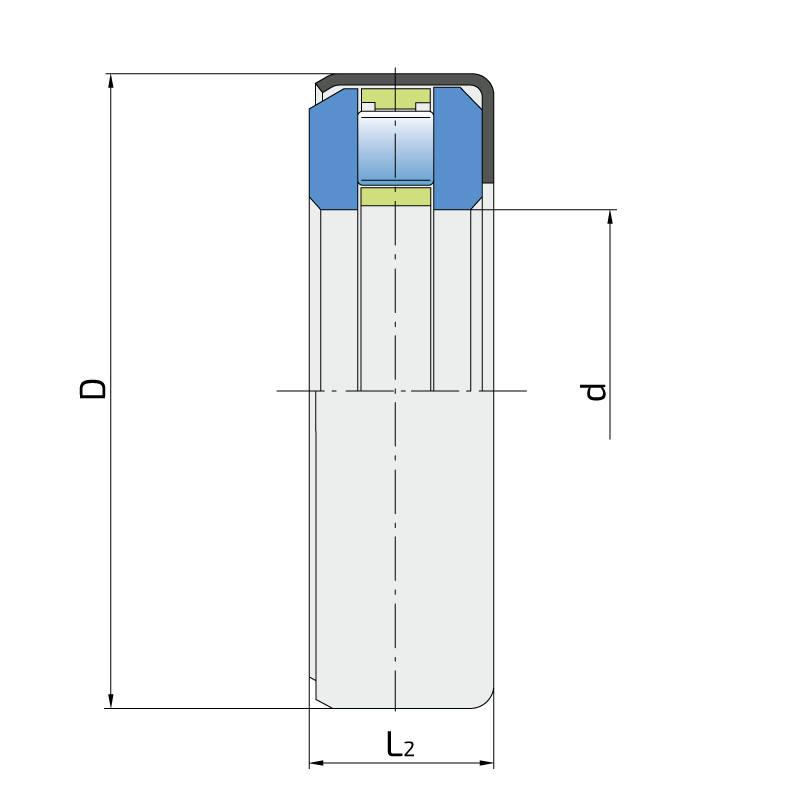

Tehnical Drawing
