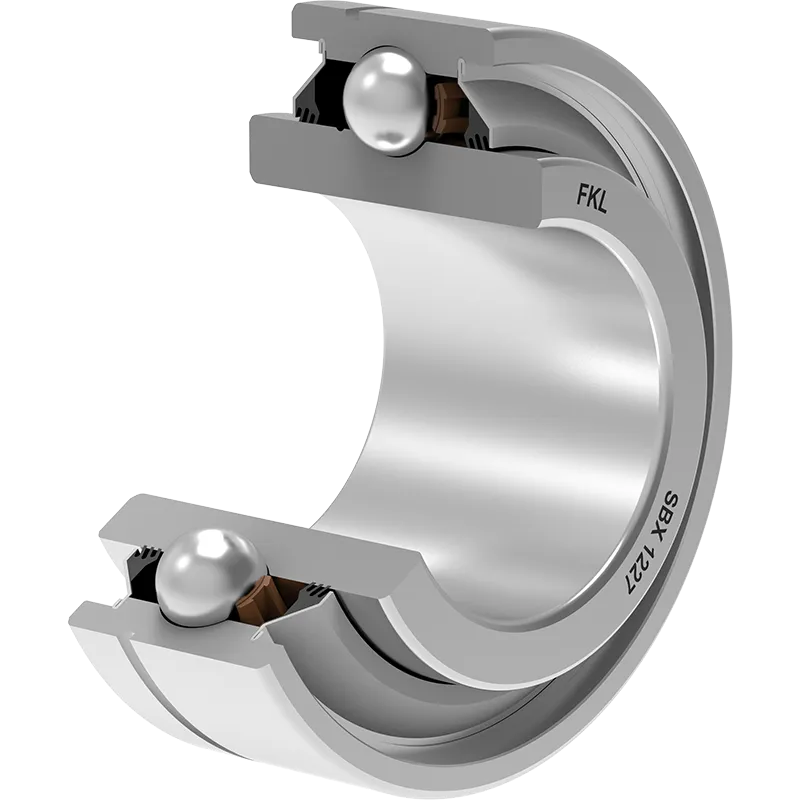

SBX 1227
Ball Bearing
Application: Disc Harrow
3D view
| Cdyn | Dynamic load rating | 52 | kN |
| Co | Static load rating | 36 | kN |
| D | Outside diameter | 110 | mm |
| d | Bore diameter | 55.562 | mm |
| C | D-shape hole cut out dimension | 38.3 | mm |
| kg | Mass | 1.8 | kg |
| B | Width inner ring | 55.562 | mm |
Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
