GWR 209PPB30
Rubberized Bearing Unit
Application: Disc Harrow

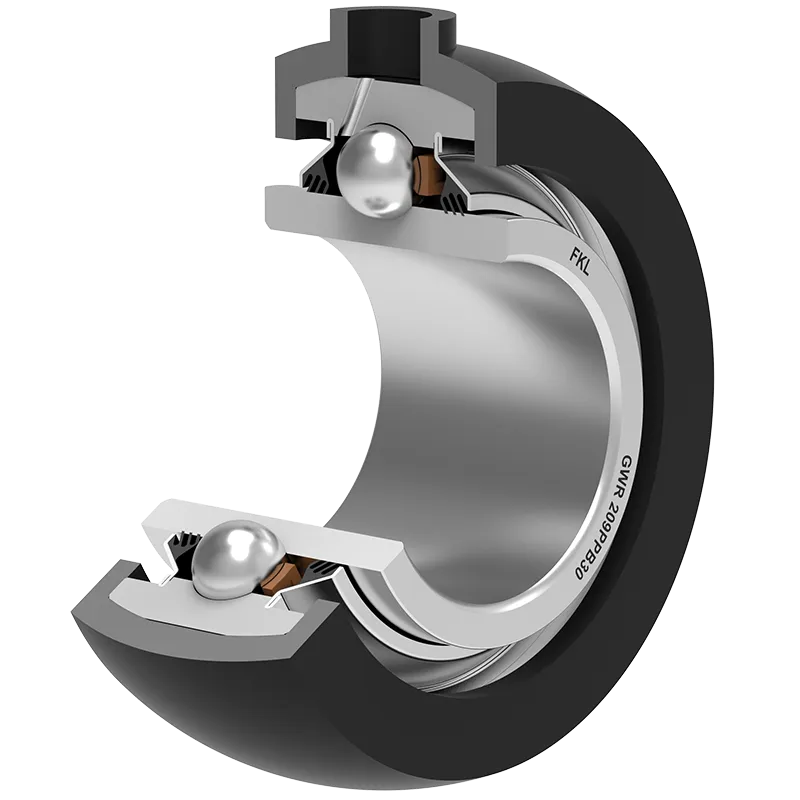

3D view
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 20.4 | kN |
| D | Outside diameter | 101 | mm |
| d | Bore diameter | 44.958 | mm |
| kg | Mass | 0.92 | kg |
| H1 | Distance from the contact surface to the bearing axis | 54 | mm |
| B | Width inner ring | 42.86 | mm |
| N | Hole diameter | 12.7 | mm |
| A | Overall width | 40 | mm |
Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
