PL-185-M30-L

Bearing Unit

Application: Disc Harrow

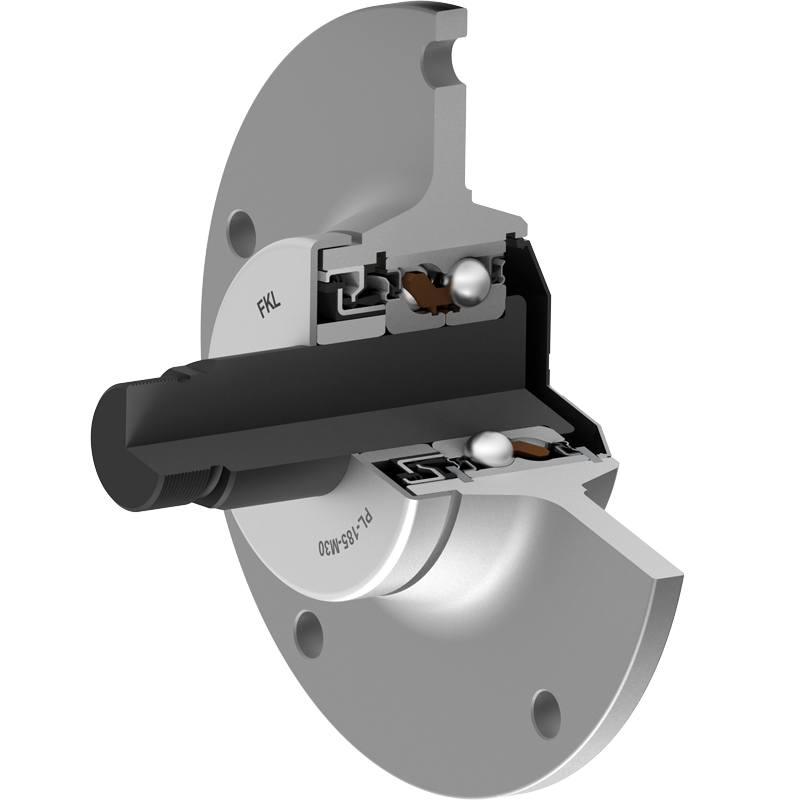

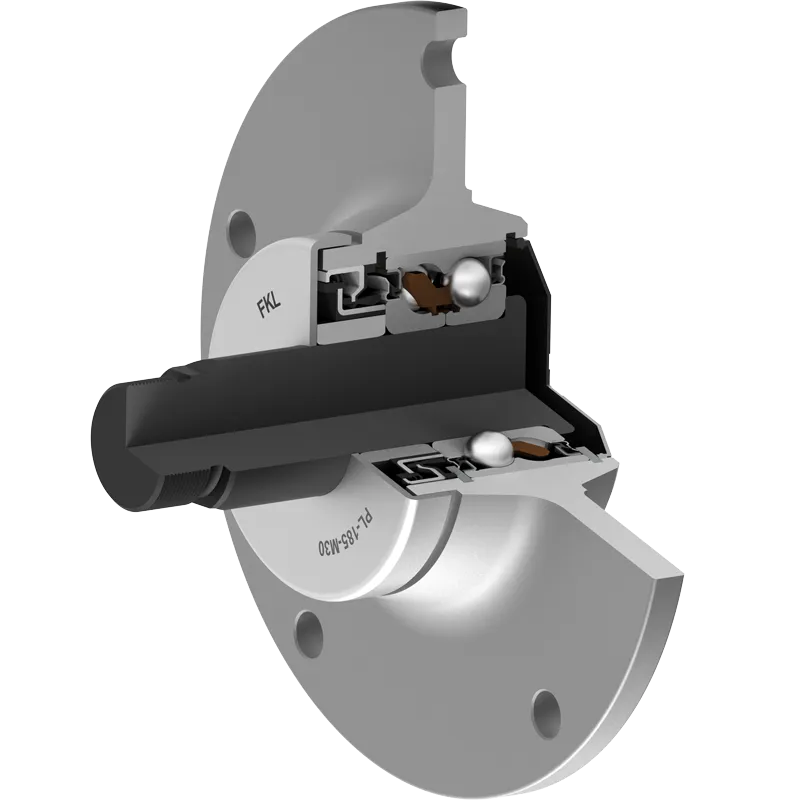

3D view

Technical Specification
DOutside diameter 185mm
d1Bore diameter 35mm
CD-shape hole cut out dimension30mm
JPitch circle diameter160mm
H/THole/Thread12mm
LTotal length113mm
L1Total flange length61.6mm
FLength of threaded part23mm
MOuther ThreadM30x1.5-LHmm
kgMass3.92kg
CdynDynamic load rating47.4kN
CoStatic load rating38.3kN
PuFatigue load limit1.609kN

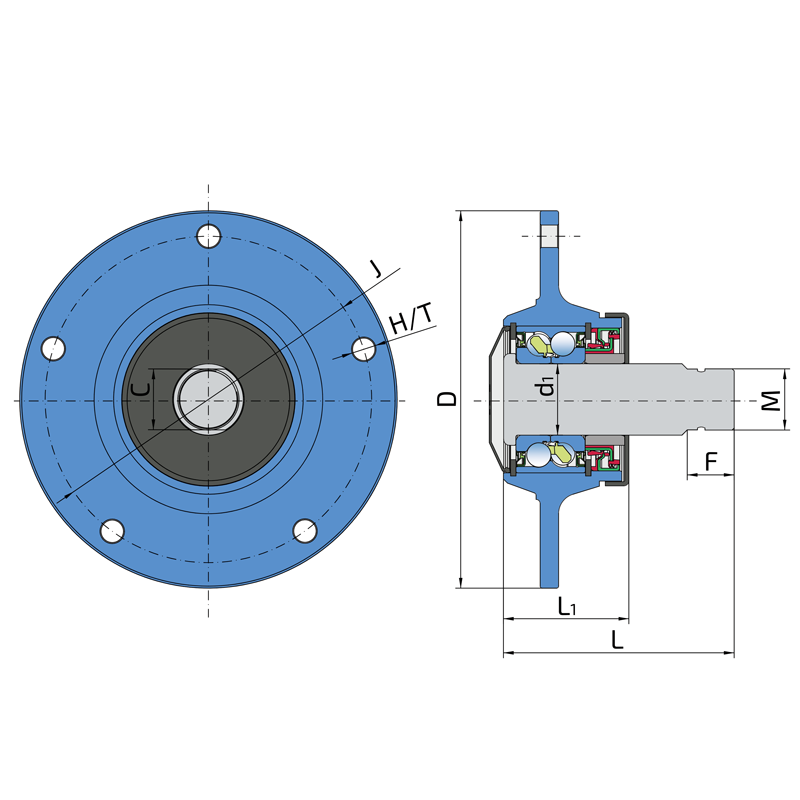

Tehnical Drawing

Sealing

PLASTIC CAP + CASSETTE SEAL / CASSETTE SEAL + DIRTBLOCK SEAL + METAL SHIELD

Two part double lip wheel bearing seal on the both side. This sealing provides excellent protection from contamination and low friction.

Front side is totally sealed with a polypropylene shield which prevents all kind of contaminations.

The other side is additionally protected with dirtblock seal and with a metal protective cap. Dirtblock seal is designed for hard working condition, half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. The metal protective cap protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.



Sealing Drawing

PL-185-M30-L

×

PL-185-M30-L

×

Sealing Type:

Two part double lip wheel bearing seal on the both side. This sealing provides excellent protection from contamination and low friction.
