Sealing

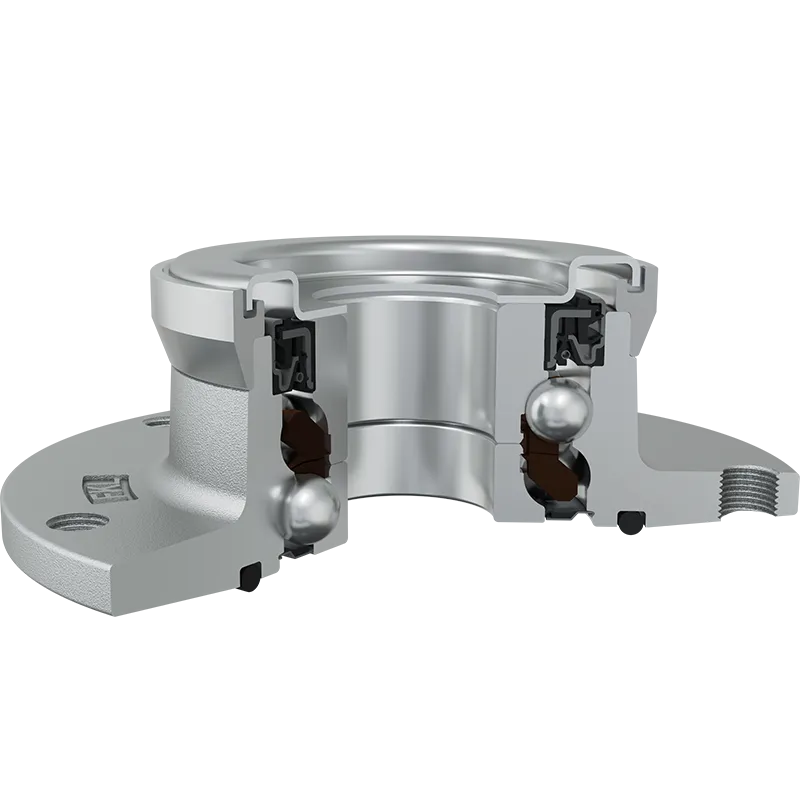

O-RING + S SEAL / DIRTBLOCK SEAL + METAL SHIELD

O-ring and S seal on the base side and Dirtblock seal with Metal shield on the front side which is exposed to contaminants.

O-ring and S seal together with attached special disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
