IL20-75/5H-M16-R
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine

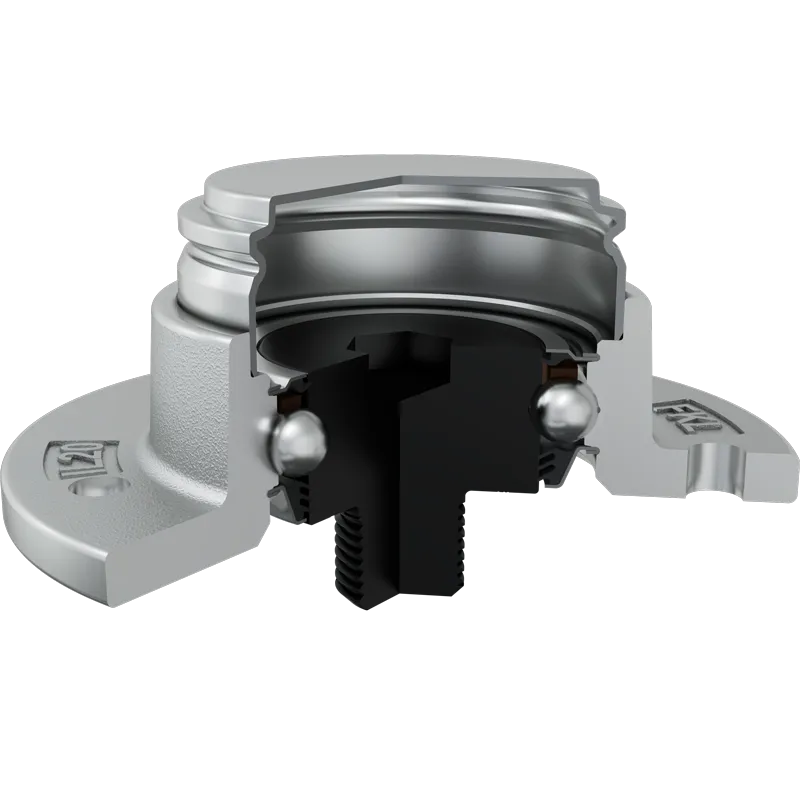

![](img/products/IL20-75-5H-M16-R.png)
![](img/image.png)
3D view
![](img/3D/IL20-75-5H-M16-R.png)
J | Pitch circle diameter | 75 | mm |
D | Outside diameter | 94 | mm |
H/T | Hole/Thread | 5x6.7 | mm |
M | Outher Thread | M16x1.5 | mm |
L | Total length | 51.7 | mm |
L1 | Total flange length | 24 | mm |
F | Length of threaded part | 14 | mm |
kg | Mass | 0.53 | kg |
Cdyn | Dynamic load rating | 22 | kN |
Co | Static load rating | 15.2 | kN |
Pu | Fatigue load limit | 0.64 | kN |
Tehnical Drawing
![](img/Drawings/IL20-75-5H-M16-R.png)
Sealing
T SEAL / S SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the S seal with Metal protective cap on the front side.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
S seal with a Metal protective cap on the front side eliminates bearing contaminants.
Sealing Drawing
![](img/seal_hub/3-lip-seal-S-seal-metal-protective-cap.jpg?16032024)
