IL50-125/6T-M30x2-164

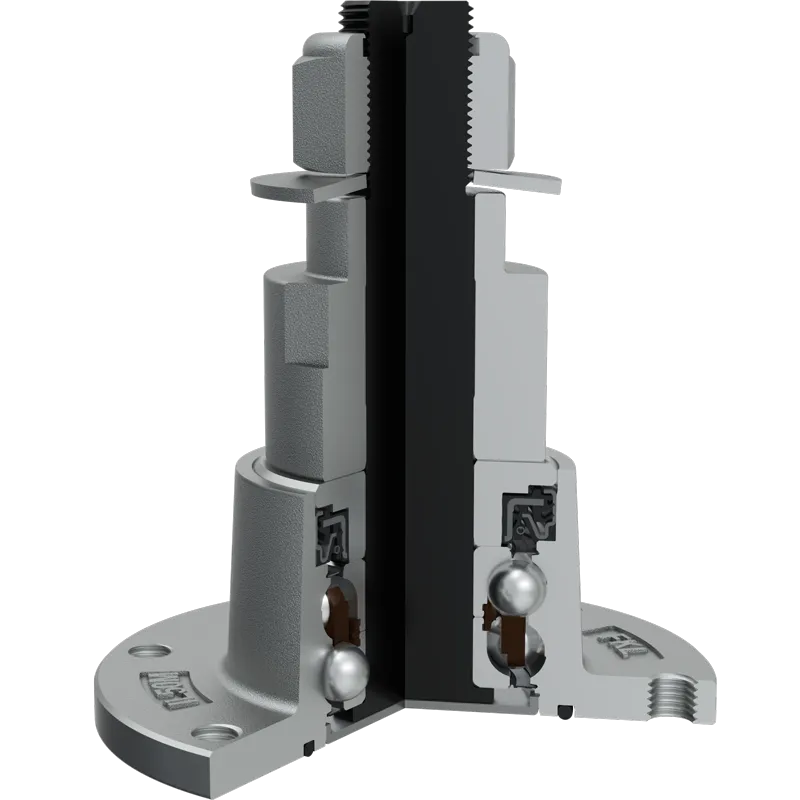

Integrated Flange, Maintenance-Free Bearing For Independent Discs

Application: Disc Harrow

3D view

Technical Specification
JPitch circle diameter125mm
DOutside diameter 145mm
H/THole/Thread6xM12x1.5mm
dInstallation diameter of the shaft45mm
MOuther ThreadM30x2mm
LTotal length164mm
L1Total flange length103mm
ELength of D shape18mm
FLength of threaded part43mm
kgMass4.789kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN

Tehnical Drawing

Sealing

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL50-125/6T-M30x2-164

×

IL50-125/6T-M30x2-164

×

Sealing Type:

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

IL50-125/6T-M30x2-164

×
