IL50-98/4T-M24

Integrated Flange, Maintenance-Free Bearing For Independent Discs

Application: Disc Harrow

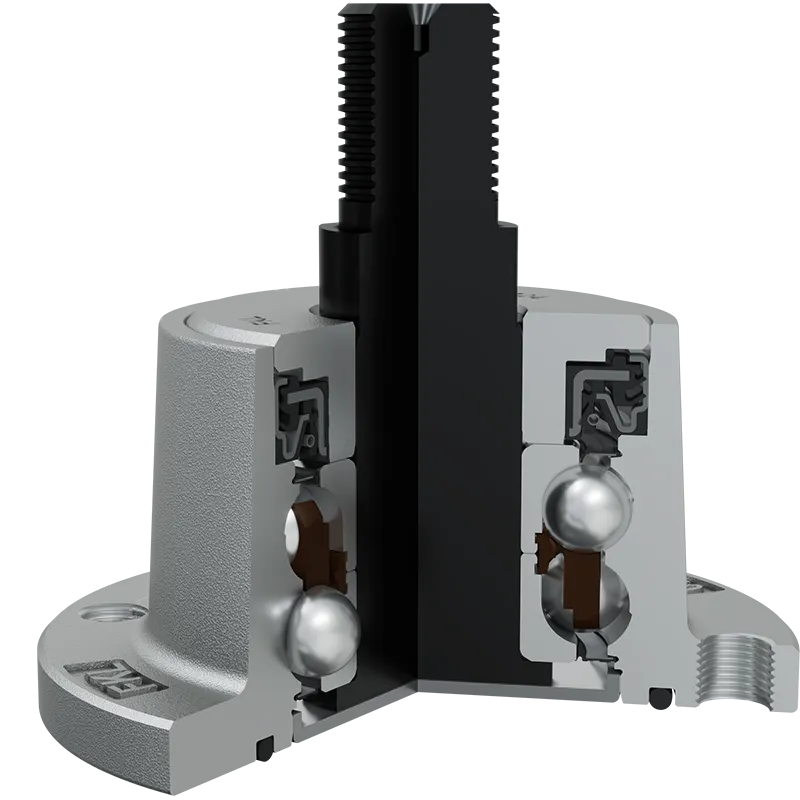

3D view

Technical Specification
JPitch circle diameter98mm
DOutside diameter 117mm
H/THole/Thread4xM12x1.25mm
dBore diameter30mm
CD-shape hole cut out dimension27.5mm
MOuther ThreadM24x2mm
LTotal length106mm
L1Total flange length60mm
ELength of D shape17mm
FLength of threaded part29mm
kgMass2.55kg
CdynDynamic load rating60kN
CoStatic load rating45.8kN
PuFatigue load limit1.92kN

Tehnical Drawing

Sealing

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

Sealing Drawing

IL50-98/4T-M24

×

IL50-98/4T-M24

×

Sealing Type:

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants.

IL50-98/4T-M24

×
