IL30-100/4T-M24x2
The Bearing Solution For Harsh Seeding Conditions And Coulter Discs Of Ploughs, Integrated Flange
Application: Seeding machines for No-till and Strip-till farming technology; Coulter discs for seeding machines; Marker discs for ploughs

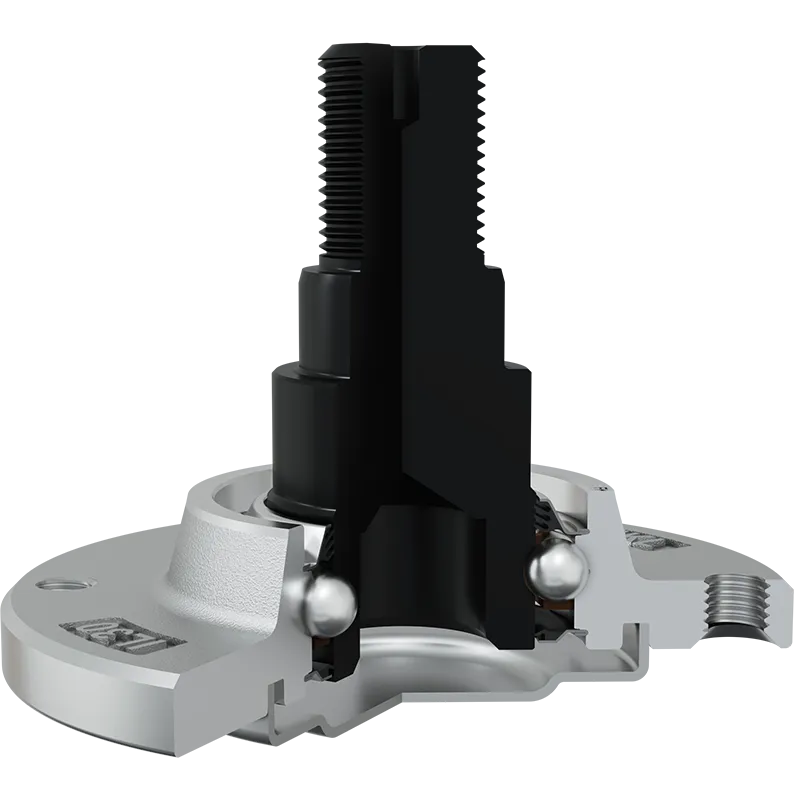

3D view
J | Pitch circle diameter | 100 | mm |
D | Outside diameter | 117 | mm |
D1 | Outside diameter | 74 | mm |
H/T | Hole/Thread | 4xM10 | mm |
d | Bore diameter | 30 | mm |
C | D-shape hole cut out dimension | 27.5 | mm |
M | Outher Thread | M24x2 | mm |
L | Total length | 89 | mm |
L1 | Total flange length | 42.3 | mm |
E | Length of D shape | 18.7 | mm |
F | Length of threaded part | 28 | mm |
kg | Mass | 1.51 | kg |
Cdyn | Dynamic load rating | 29.6 | kN |
Co | Static load rating | 21 | kN |
Pu | Fatigue load limit | 0.88 | kN |
Tehnical Drawing
Sealing
SHEET METAL SHIELD+S SEAL / T SEAL
Sheet metal shield and S seal on the base side and 3-lip seal on the front side.
A Sheet metal shield and S seal on the base side prevent penetration of all types of contaminants into the bearing, as well a 3-lip seal on the front side protects the bearing from contaminant penetration.
Sealing Drawing
