Y BEARING UNITS

LEGS 216 2F.C82.6

Housing units LEGS, four-bolt flanged housing units, cast iron, centring spigot, grub screw in inner ring, F seals

Application: Harvester Solution

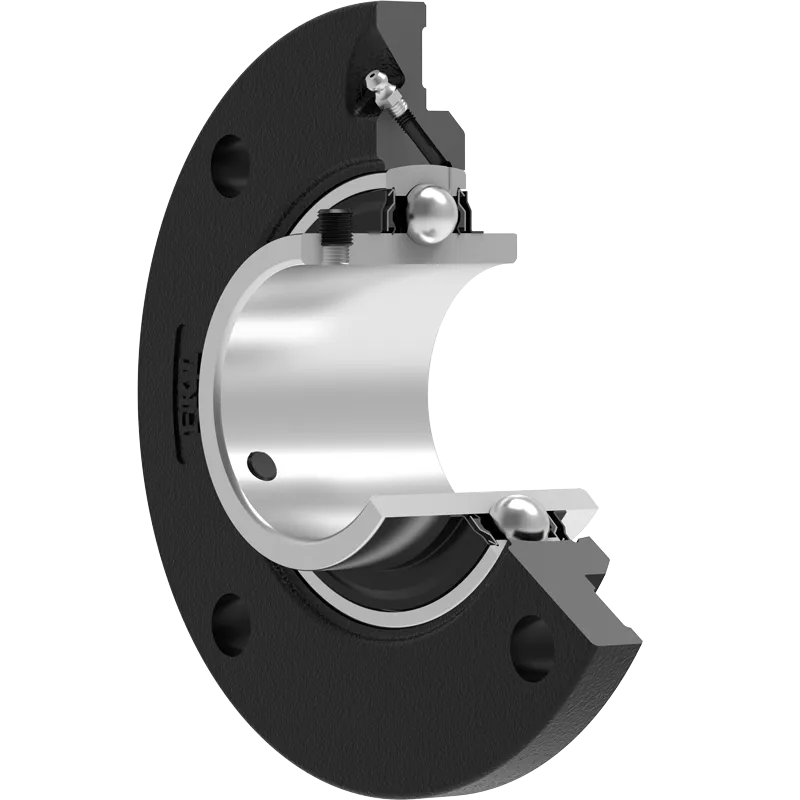

3D view

Technical Specification
dBore diameter80mm
DaCentering diameter160mm
LDiameter of housings220mm
ADistance from the housing flange to the front of the inner ring of the bearing51.3mm
A1Housing flange thickness18mm
A2Height of the housing31mm
JPitch circle diameter184mm
NHole diameter18mm
BWidth inner ring 82.6mm
kgMass5.308kg
CdynDynamic load rating72kN
CoStatic load rating54kN
PuFatigue load limit2.268kN

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LEGS 216 2F.C82.6

×

LEGS 216 2F.C82.6

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LEGS 216 2F.C82.6

×
