Y BEARING UNITS

LYP 208 2F

Y-Bearing Flanged Units With Oval Pressed Steel Housing "P"

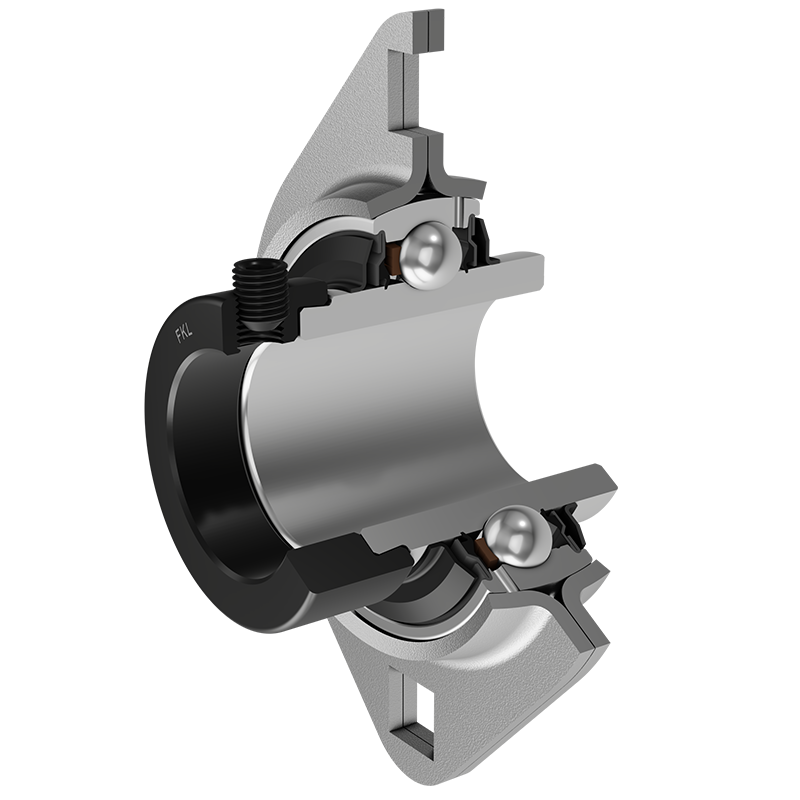

3D view

Technical Specification
dBore diameter40mm
DaCentering diameter91mm
LOverall width100mm
ADistance from the housing flange to the front of the inner ring of the bearing38.4mm
A1Housing flange thickness3.5mm
A2Height of the housing11mm
HHousing height148mm
JDistance between the holes119mm
NSqare hole dimension13.5mm
FrRadial load7.5kN
FaAxial load3.7kN
kgMass1.06kg
CdynDynamic load rating30.7kN
CoStatic load rating19kN
PuFatigue load limit0.8kN

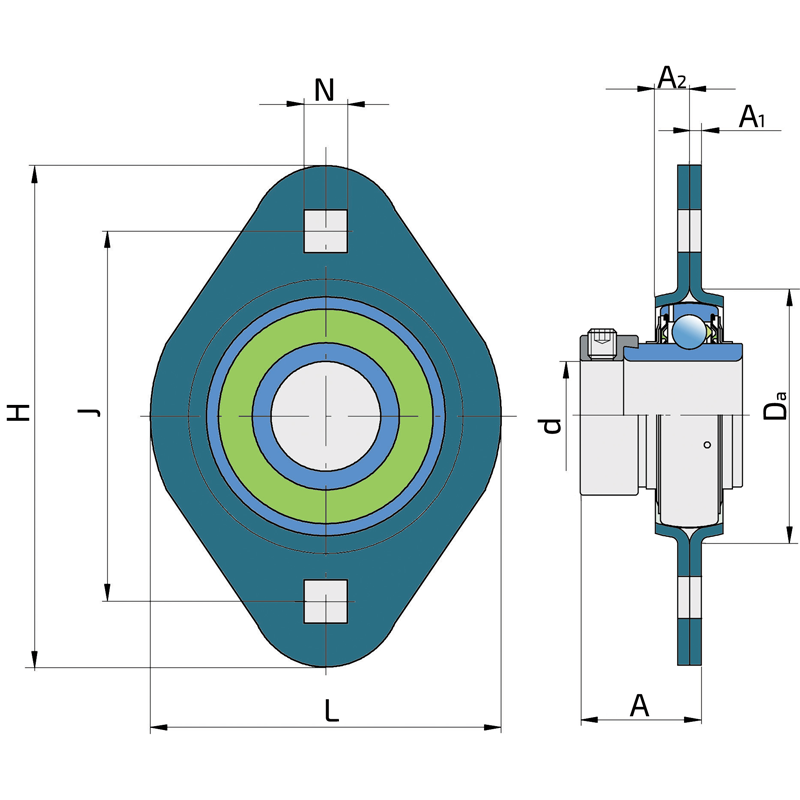

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LYP 208 2F

×

LYP 208 2F

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LYP 208 2F

×
