Y BEARING UNITS

UEP 208 2S

Y-Bearing Flanged Units With Oval Pressed Steel Housing "P"

3D view

Technical Specification
dBore diameter40mm
DaCentering diameter91mm
LOverall width100mm
ADistance from the housing flange to the front of the inner ring of the bearing28.8mm
A1Housing flange thickness3.5mm
A2Height of the housing11mm
HHousing height148mm
JDistance between the holes119mm
NSqare hole dimension13.5mm
FrRadial load7.5kN
FaAxial load3.7kN
kgMass0.83kg
CdynDynamic load rating30.7kN
CoStatic load rating19kN
PuFatigue load limit0.8kN

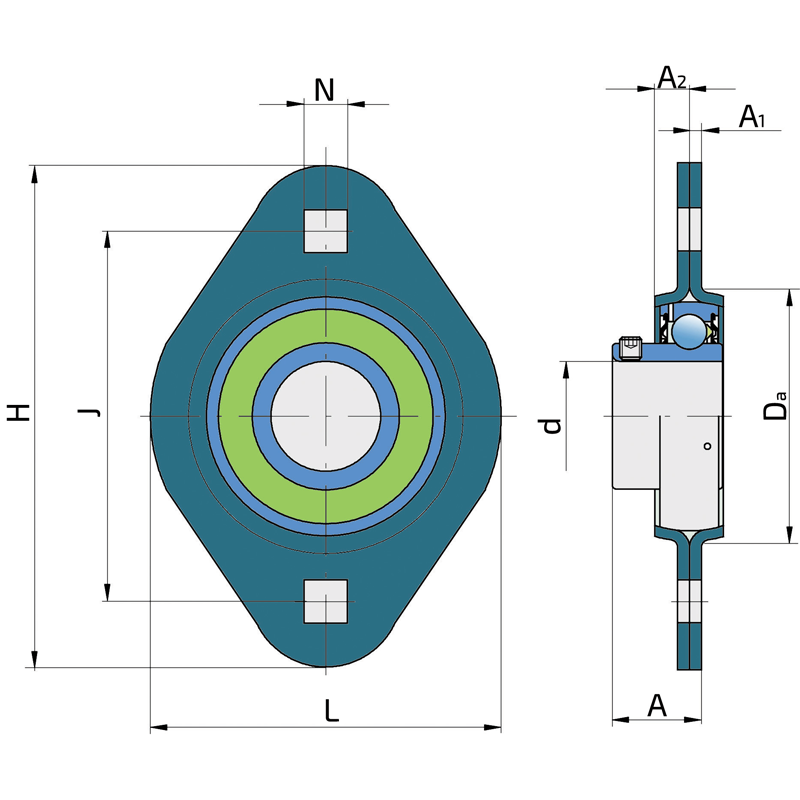

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

UEP 208 2S

×

UEP 208 2S

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.

UEP 208 2S

×
