Y BEARING UNITS

LED 206 2F

Y-Bearing Flanged Units With Triangular Pressed Steel Housing "D"

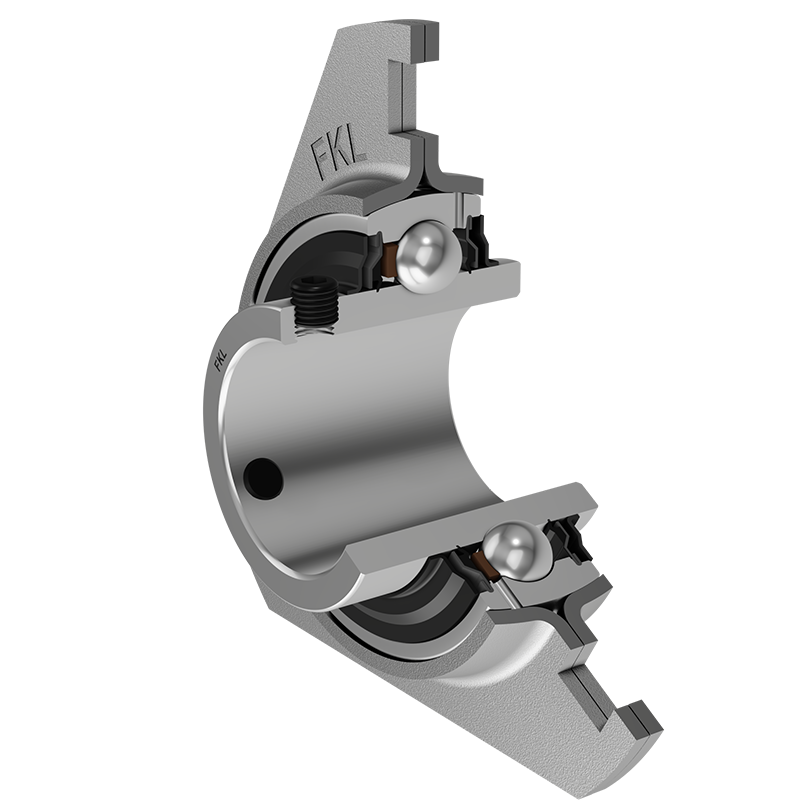

3D view

Technical Specification
dBore diameter30mm
ADistance from the housing flange to the front of the inner ring of the bearing24.7mm
A1Housing flange thickness2.5mm
A2Height of the housing9.5mm
DaCentering diameter71mm
LDiameter of housings112mm
L1Distance from the edge to the bearing axis38mm
JDistance between the holes90.5mm
NSqare hole dimension10.5mm
FrRadial load5kN
FaAxial load2.5kN
kgMass0.49kg
CdynDynamic load rating19.5kN
CoStatic load rating11.2kN
PuFatigue load limit0.475kN

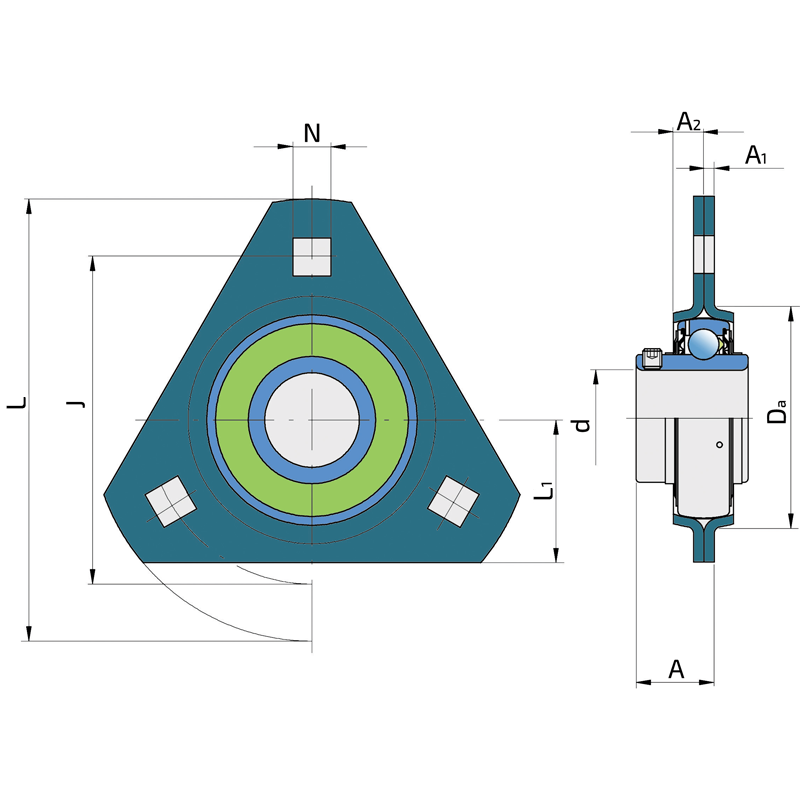

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LED 206 2F

×

LED 206 2F

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LED 206 2F

×
