Y BEARING UNITS

LEG 212 2F

Y-Bearing Flanged Units With Round Grey Cast Iron Housing "G"

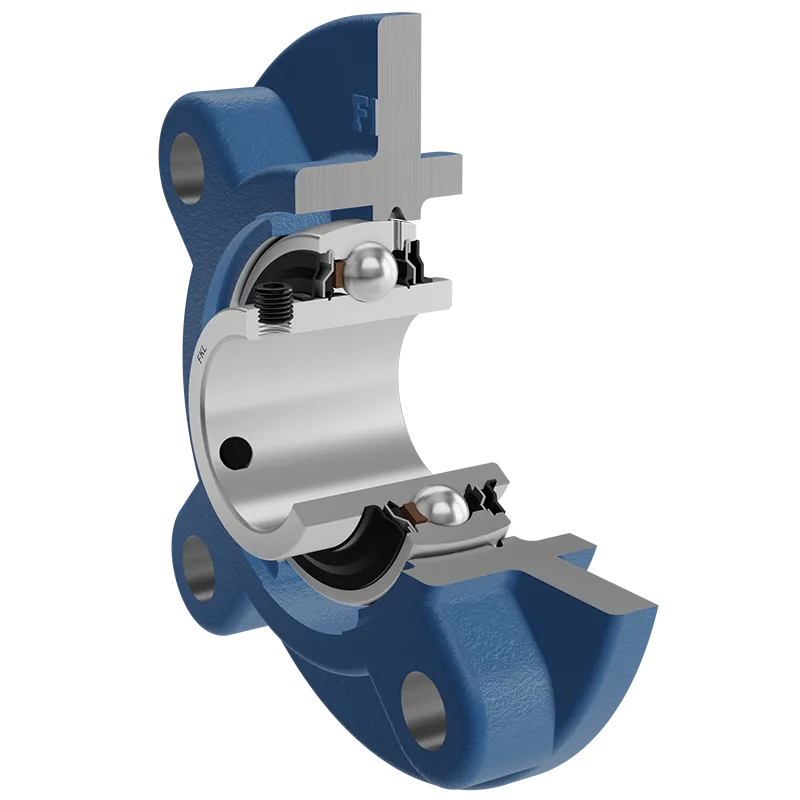

3D view

Technical Specification
dBore diameter60mm
DaCentering diameter135mm
LOverall width195mm
ADistance from the housing flange to the front of the inner ring of the bearing56.7mm
A1Total housing width48mm
A2Housing flange thickness15mm
A3Centering diameter height12mm
JPitch circle diameter160mm
J1Distance between the holes113.1mm
NDiameter of attachment slot 19mm
kgMass5.02kg
CdynDynamic load rating52.7kN
CoStatic load rating36kN
PuFatigue load limit1.53kN

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LEG 212 2F

×

LEG 212 2F

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal
