Y BEARING UNITS

LKN 206 2F + H2306

Y-Bearing Flanged Units With Oval Grey Cast Iron Housing "N"

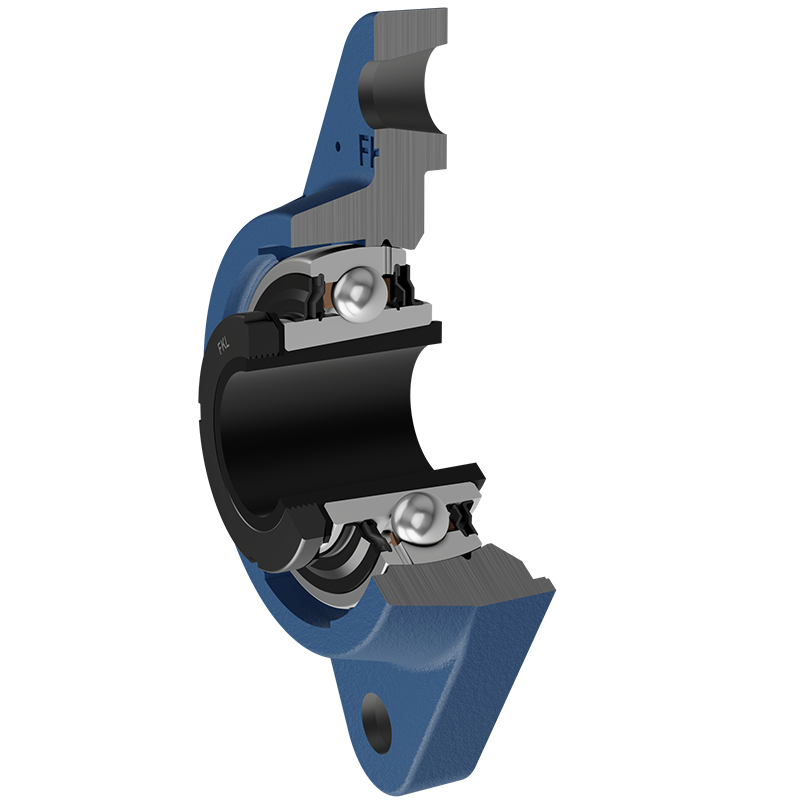

3D view

Technical Specification
d	Bore diameter	25	mm
L	Overall width	80	mm
A	Distance from the housing flange to the front of the inner ring of the bearing	40.5	mm
A1	Total housing width	30.5	mm
A2	Housing flange thickness	14	mm
H	Housing height	148	mm
J	Pitch circle diameter	117	mm
N	Diameter of attachment slot	16	mm
kg	Mass	0.98	kg
Cdyn	Dynamic load rating	19.5	kN
Co	Static load rating	11.3	kN
Pu	Fatigue load limit	0.335	kN

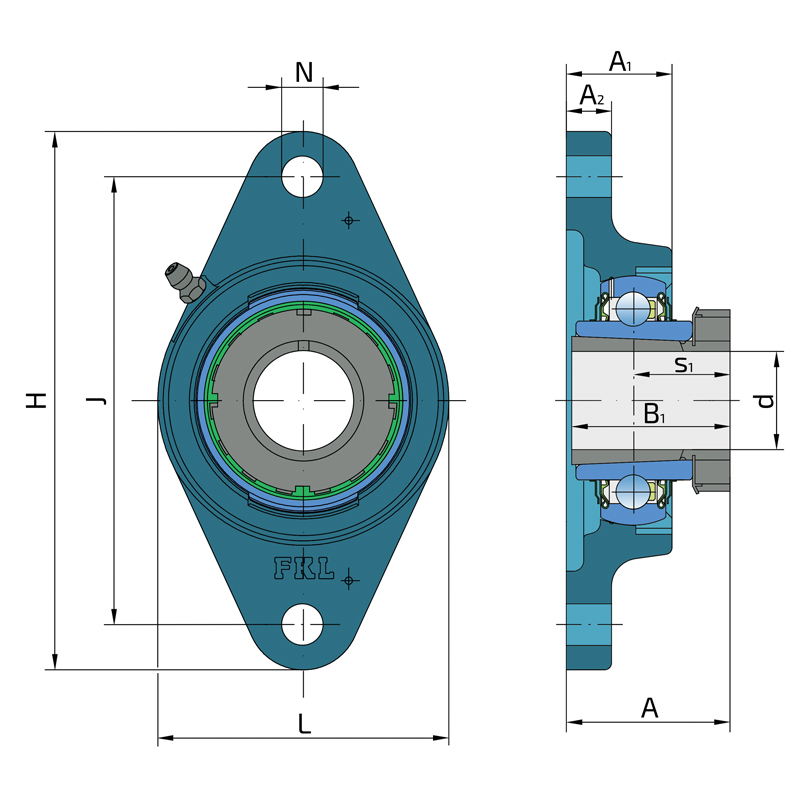

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing
