Y BEARINGS
LE 210 2TB
Y-Ball Bearings With Grub Screw Locking

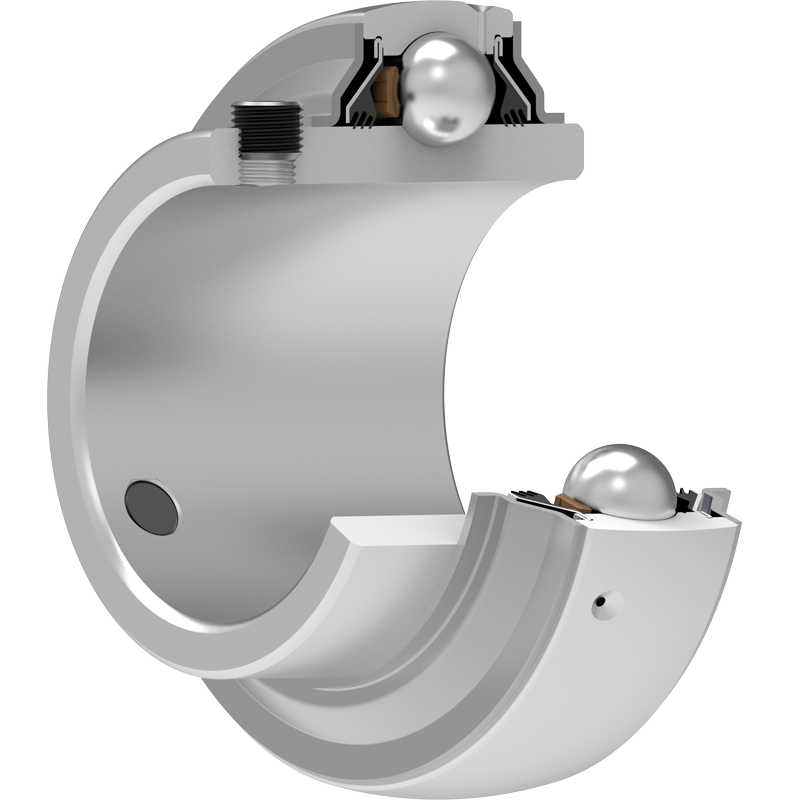

3D view
| d | Bore diameter | 50 | mm |
| D | Outside diameter | 90 | mm |
| B | Width inner ring | 51.6 | mm |
| C | Width outer ring | 22 | mm |
| s | Distance from inner ring side face to raceway centre | 19 | mm |
| d1 | Outer diameter inner ring | 62.5 | mm |
| E | Distance from raceway centre to the hole for lubrication | 6.4 | mm |
| Gs | Set screw | M10x1 | mm |
| sw | Hexagonal key size for set screw | 5 | mm |
| r1,2 | Inner ring Chamfer dimension | 1 | mm |
| r3,4 | Outside ring Chamfer dimension | 1.5 | mm |
| Cdyn | Dynamic load rating | 35.1 | kN |
| Co | Static load rating | 23.2 | kN |
| Pu | Fatigue load limit | 0.98 | kN |
| kg | Mass | 0.69 | kg |

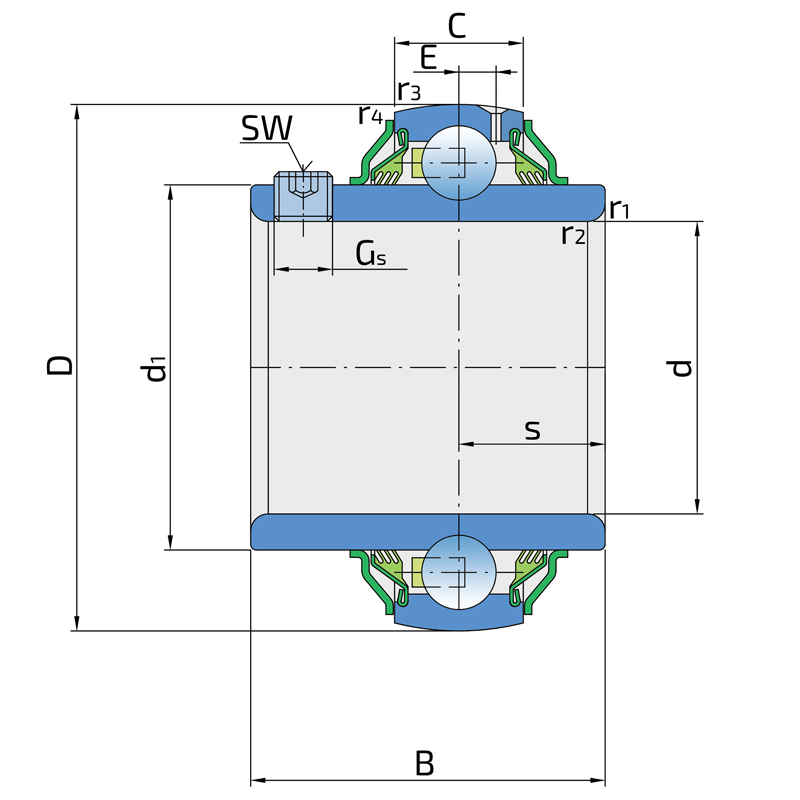

Tehnical Drawing
Sealing
METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)
3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
