Y-Bearing Take - Up Units With Grey Cast Iron Housings "T"

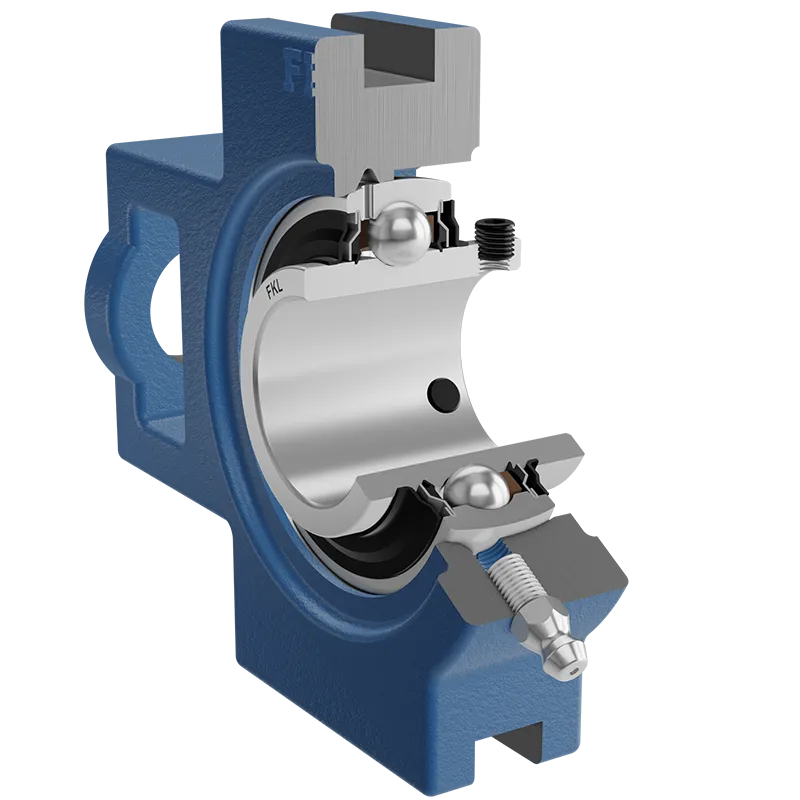

3D view

Technical Specification
dBore diameter25mm
D1Hole diameter19mm
LOverall length 100mm
L1Distance from the contact surface of housing to the bearing axis64mm
L2Length of attachment slot16mm
AOverall width34mm
A1Width of location slot13.5mm
A2Housing flange thickness25mm
HHousing height91mm
H1Distance between bottoms of location slot 76mm
NHeight of attachment slot 33mm
N1Length attachment end 10mm
s1Distance from locking device side face to raceway centre 19.8mm
kgMass0.88kg
CdynDynamic load rating14kN
CoStatic load rating7.8kN
PuFatigue load limit0.335kN

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LET 205 2F

×

LET 205 2F

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LET 205 2F

×
