Y BEARING UNITS

UEN 208 2S

Y-Bearing Flanged Units With Oval Grey Cast Iron Housing "N"

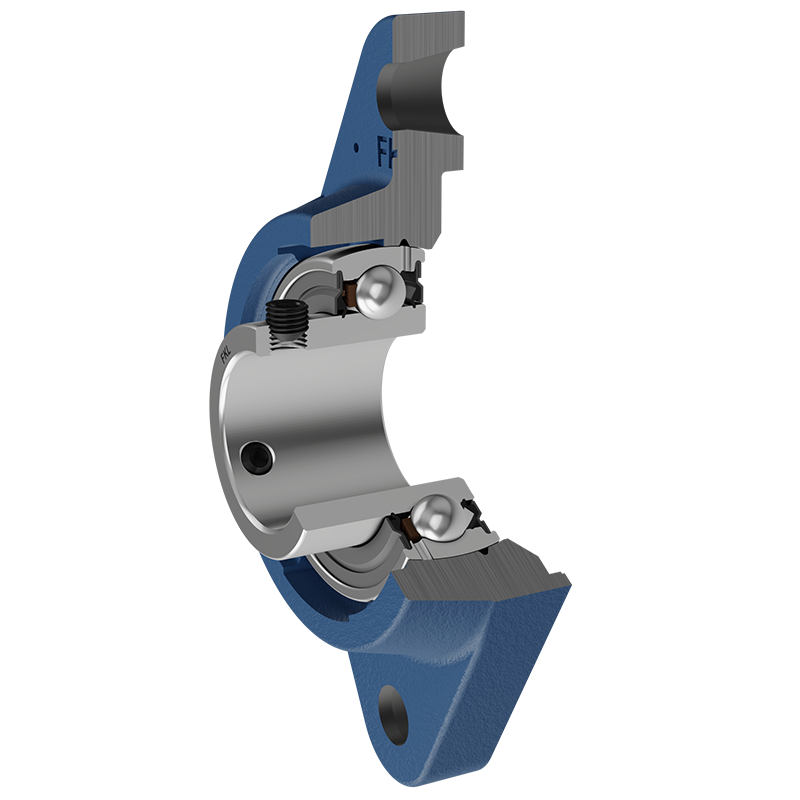

3D view

Technical Specification
d	Bore diameter	40	mm
L	Overall width	100	mm
A	Distance from the housing flange to the front of the inner ring of the bearing	46.3	mm
A1	Total housing width	36	mm
A2	Housing flange thickness	16	mm
H	Housing height	175	mm
J	Pitch circle diameter	144	mm
N	Diameter of attachment slot	16	mm
kg	Mass	1.58	kg
Cdyn	Dynamic load rating	30.7	kN
Co	Static load rating	19	kN
Pu	Fatigue load limit	0.8	kN

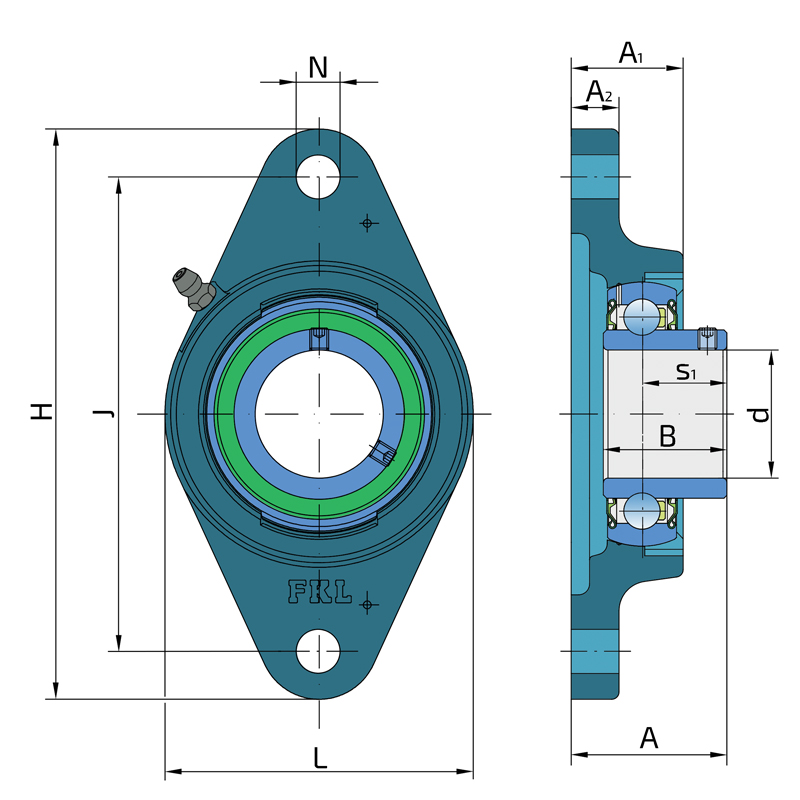

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing
