Y BEARINGS

UH 207/30 2S.H.T

Y-Ball Bearings With Integral Adapter Sleeve

Application: Harvester

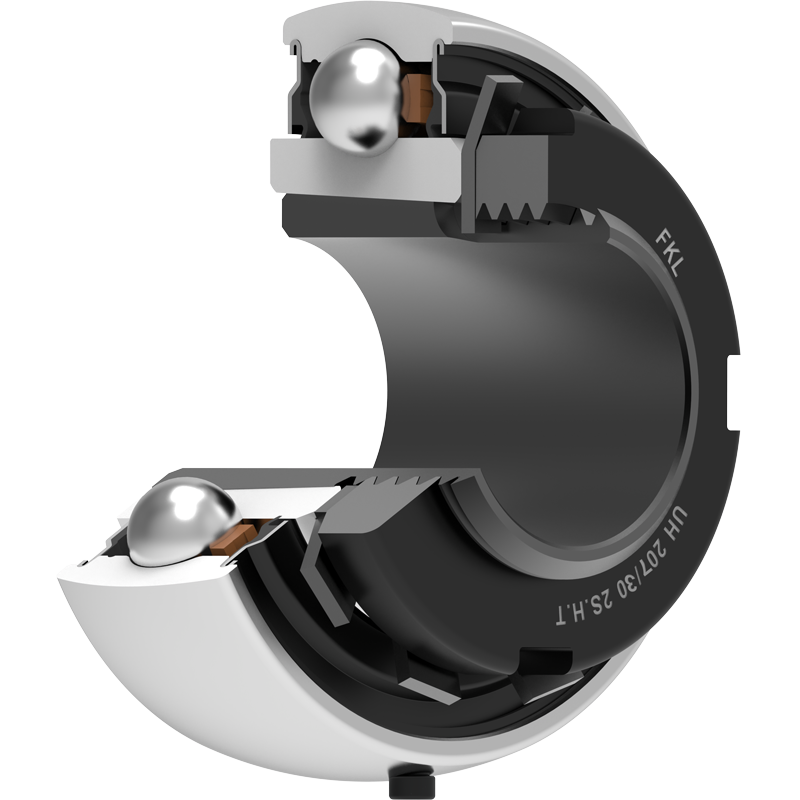

3D view

Technical Specification
dBore diameter30mm
DOutside diameter 72mm
WKM nut outside diameter52mm
D2MB Washer outside diameter57mm
BWidth inner ring 22mm
B1Width adapter sleeve35mm
C Width outer ring 19mm
LKM nut width8mm
E1Distance from raceway center to the stopping pin 5.7mm
MThread adapter sleeve35x1.5mm
PStopping pin diameter3mm
P1Stopping pin higth2mm
kgMass0.47kg
CdynDynamic load rating25.5kN
CoStatic load rating15.3kN
PuFatigue load limit0.655kN

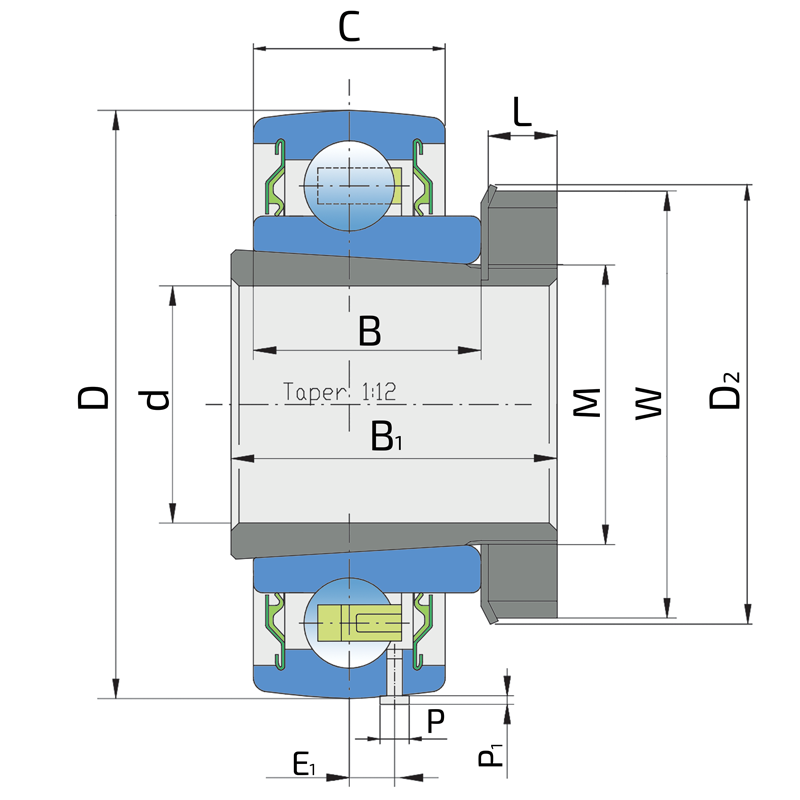

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

UH 207/30 2S.H.T

×

UH 207/30 2S.H.T

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.
