IL20-75/4H-M20x1.5-T-44

The Bearing Solution For Seeding Machines, Integrated Flange

Application: Seeding Machine

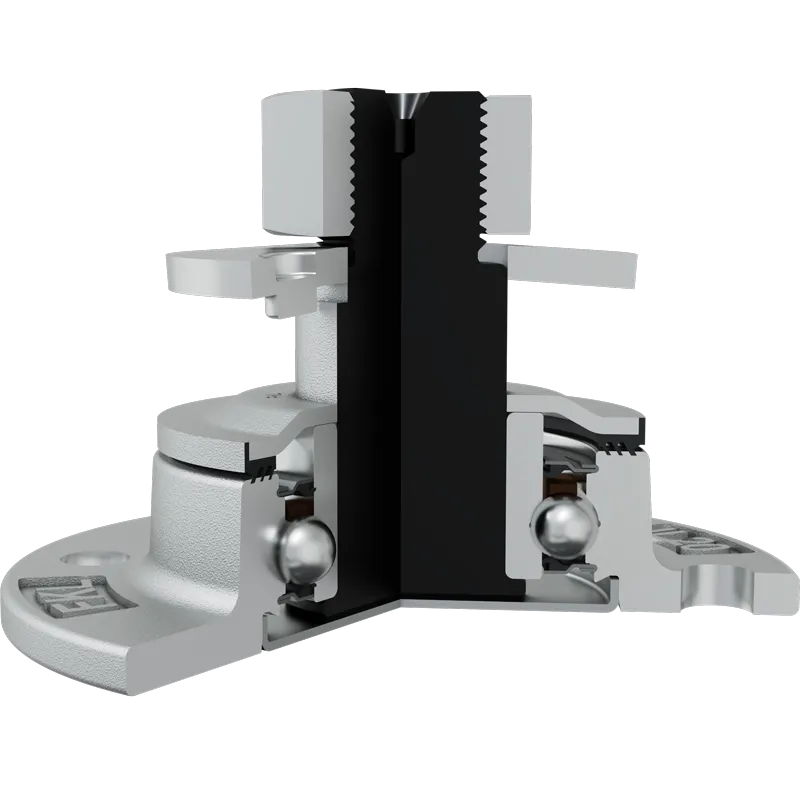

3D view

Technical Specification
J	Pitch circle diameter	75	mm
D	Outside diameter	94	mm
H/T	Hole/Thread	4x8.5	mm
d	Bore diameter	25	mm
C	D-shape hole cut out dimension	23	mm
M	Outher Thread	M20x1.5	mm
L	Total length	61	mm
L1	Total flange length	26	mm
F	Length of threaded part	20	mm
E	Length of D shape	15	mm
kg	Mass	0.77	kg
Cdyn	Dynamic load rating	22	kN
Co	Static load rating	15.2	kN
Pu	Fatigue load limit	0.64	kN

Tehnical Drawing

Sealing

SHEET METAL SHIELD+S SEAL / S SEAL+T SEAL+METAL PROTECTIVE COVER

Sheet metal shield and S seal on the base side and the S seal reinforced with frontal 3-lip seal and Metal protective cover on the front side, which is exposed to the contaminants.

Sheet metal shield and S seal together with attached disc reduce the possibility of contamination from the base side.

The S seal in combination with the frontal 3-lip seal provides better protection of contamination and extend the bearing life. The Metal protective cover of the frontal 3-lip seal also protect the inner 3-lip seal from mechanical damages.
