AGRO POINT HUBS
IL20-70/6T-B12
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine

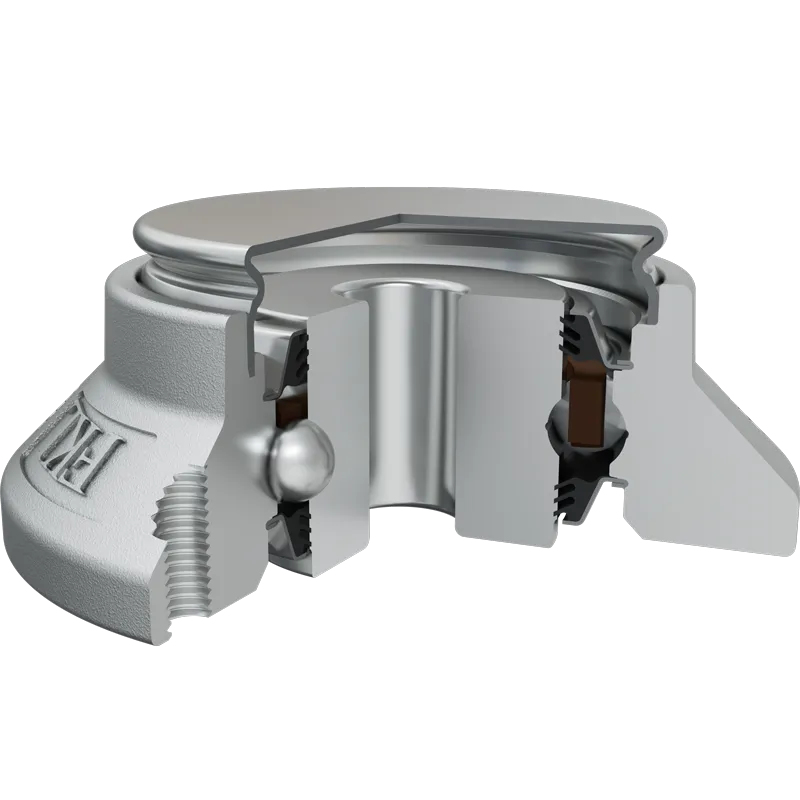

3D view
| J | Pitch circle diameter | 70 | mm |
| D | Outside diameter | 80 | mm |
| H/T | Hole/Thread | 6xM6 | mm |
| d1 | Bore diameter | 12.2 | mm |
| L | Total length | 32.5 | mm |
| L1 | Total flange length | 25.5 | mm |
| L2 | Bearing width | 25.5 | mm |
| kg | Mass | 0.59 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.638 | kN |
Tehnical Drawing
Sealing
T SEAL / T SEAL+METAL PROTECTIVE CAP
3-lip seal on the both side with Metal protective cap on the front side.
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
