AGRO POINT HUBS
IL20-75/6T-B17
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine

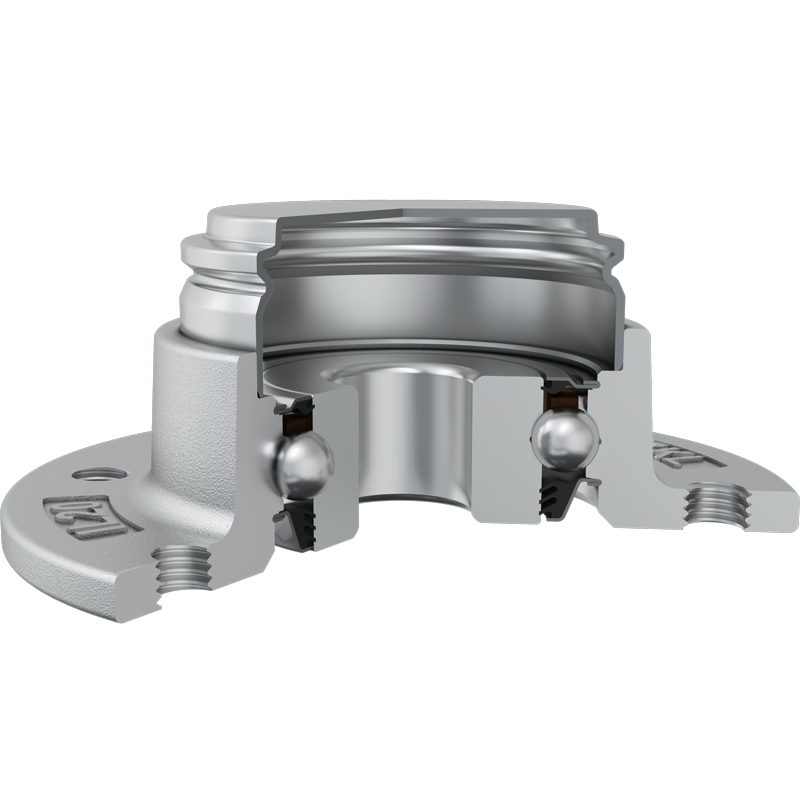

3D view
| J | Pitch circle diameter | 75 | mm |
| D | Outside diameter | 94 | mm |
| H/T | Hole/Thread | 6xM8 | mm |
| d1 | Bore diameter | 17 | mm |
| L | Total length | 37.7 | mm |
| L1 | Total flange length | 24 | mm |
| L2 | Bearing width | 18 | mm |
| kg | Mass | 0.5 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.64 | kN |

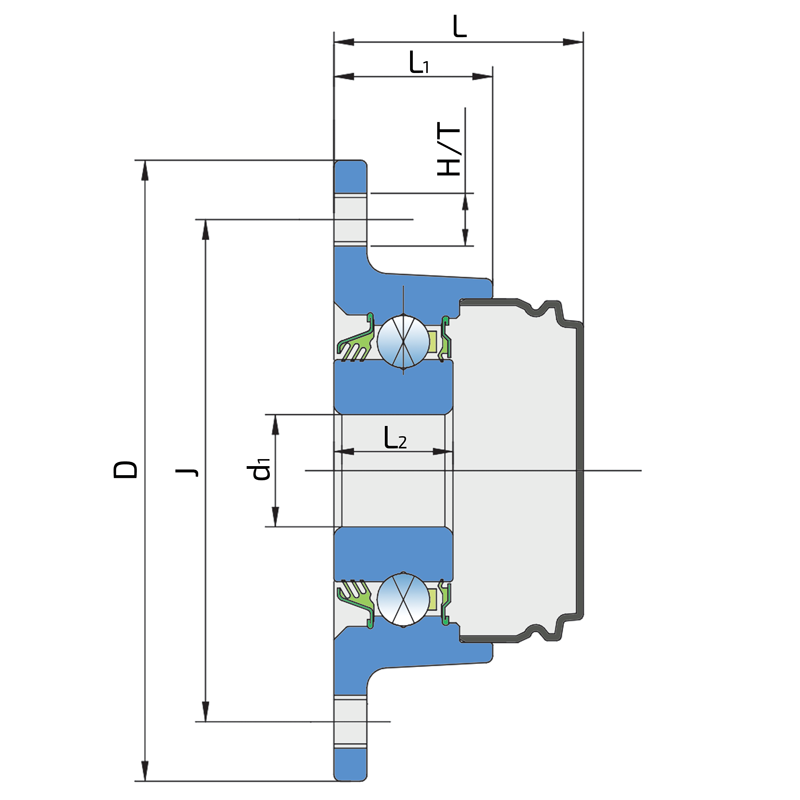

Tehnical Drawing
Sealing
T SEAL / S SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the S seal with Metal protective cap on the front side.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
S seal with a Metal protective cap on the front side eliminates bearing contaminants.

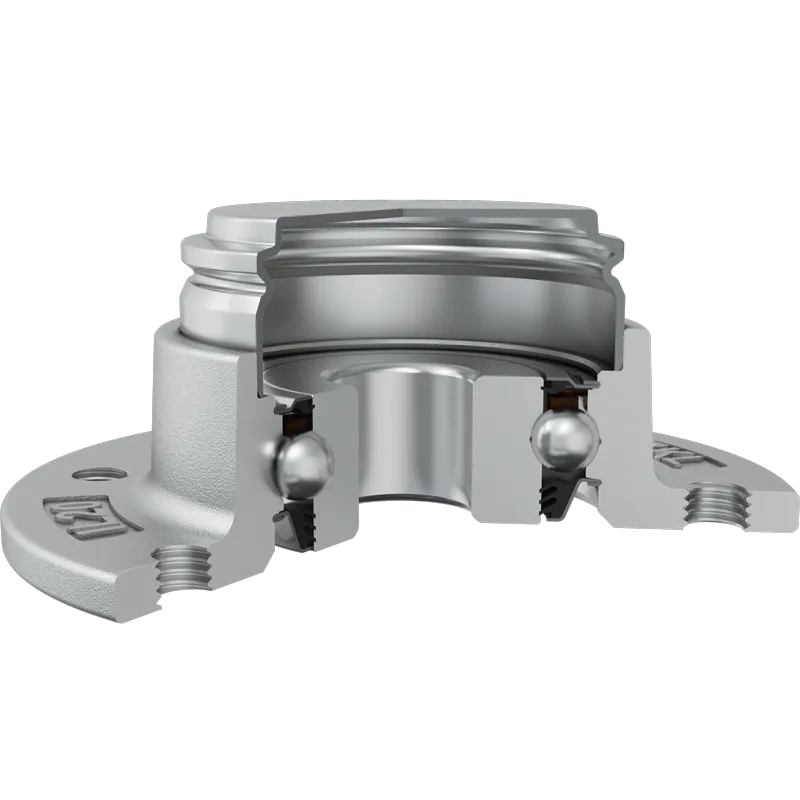

Sealing Drawing
