Y BEARINGS

LY 310-115 2F

Y-Ball Bearings With Eccentric Locking Collar

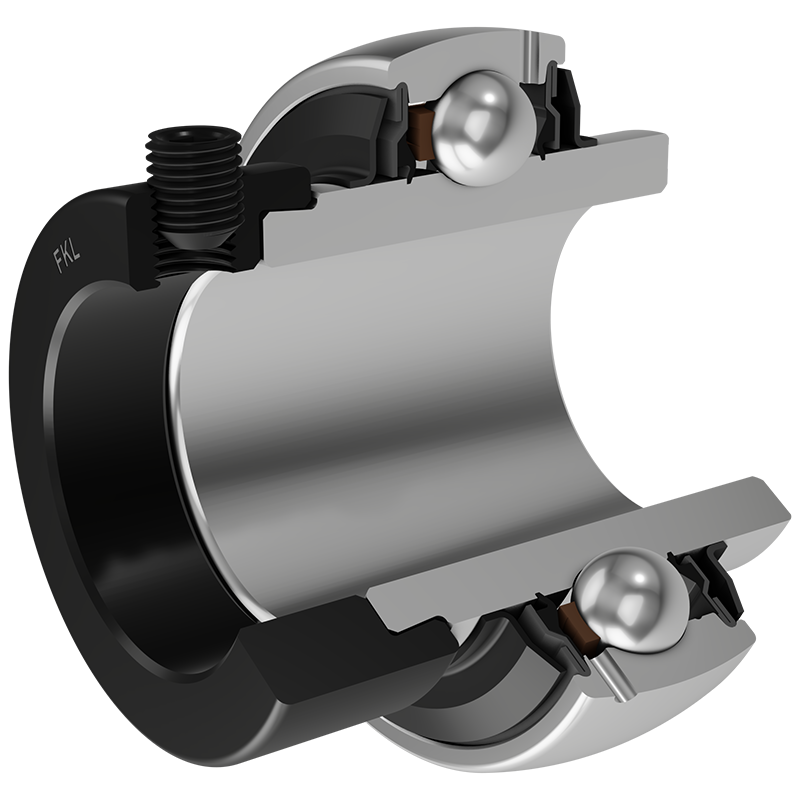

3D view

Technical Specification
d	Bore diameter	49.2125	mm
D	Outside diameter	110	mm
B	Width inner ring	49.2	mm
C	Width outer ring	32	mm
s	Distance from inner ring side face to raceway centre	24.6	mm
d1	Outer diameter inner ring	68.7	mm
E	Distance from raceway centre to the hole for lubrication	7.9	mm
r1,2	Inner ring Chamfer dimension	2	mm
r3,4	Outside ring Chamfer dimension	2	mm
B1	Width inner ring with locking collar	66.6	mm
d2	Locking collar outside diameter	76.2	mm
B2	Width locking collar	22.2	mm
Cdyn	Dynamic load rating	61.8	kN
Co	Static load rating	38	kN
Pu	Fatigue load limit	1.6	kN
kg	Mass	1.86	kg

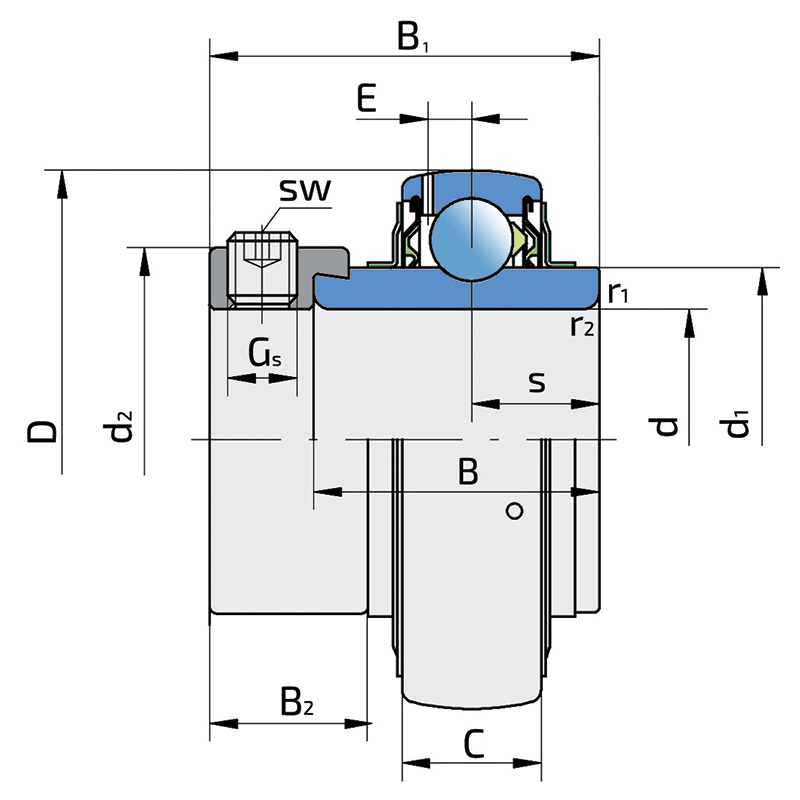

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
