Y BEARINGS

LY 205-014 2F

Y-Ball Bearings With Eccentric Locking Collar

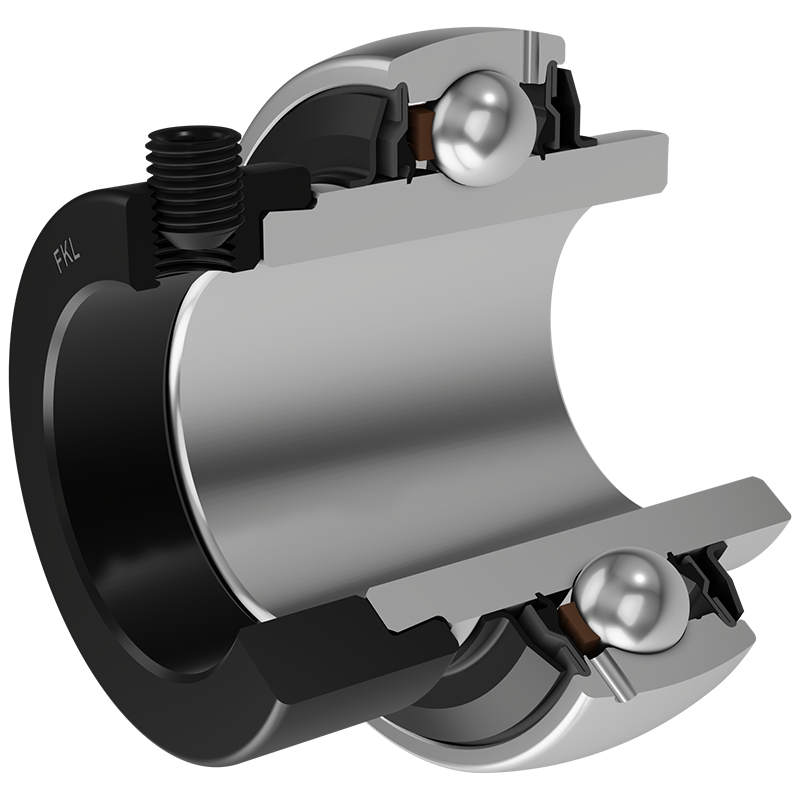

3D view

Technical Specification
d	Bore diameter	22.225	mm
D	Outside diameter	52	mm
B	Width inner ring	34.9	mm
C	Width outer ring	15	mm
s	Distance from inner ring side face to raceway centre	17.5	mm
d1	Outer diameter inner ring	33.6	mm
E	Distance from raceway centre to the hole for lubrication	4.3	mm
Gs	Set screw	1/4-28 UNF	inch
sw	Hexagonal key size for set screw	3.175	mm
sw	Hexagonal key size for set screw	1/8	inch
r1,2	Inner ring Chamfer dimension	0.6	mm
r3,4	Outside ring Chamfer dimension	0.6	mm
B1	Width inner ring with locking collar	44.4	mm
d2	Locking collar outside diameter	37	mm
B2	Width locking collar	13.6	mm
kg	Mass	0.28	kg
Cdyn	Dynamic load rating	14	kN
Co	Static load rating	7.8	kN
Pu	Fatigue load limit	0.34	kN

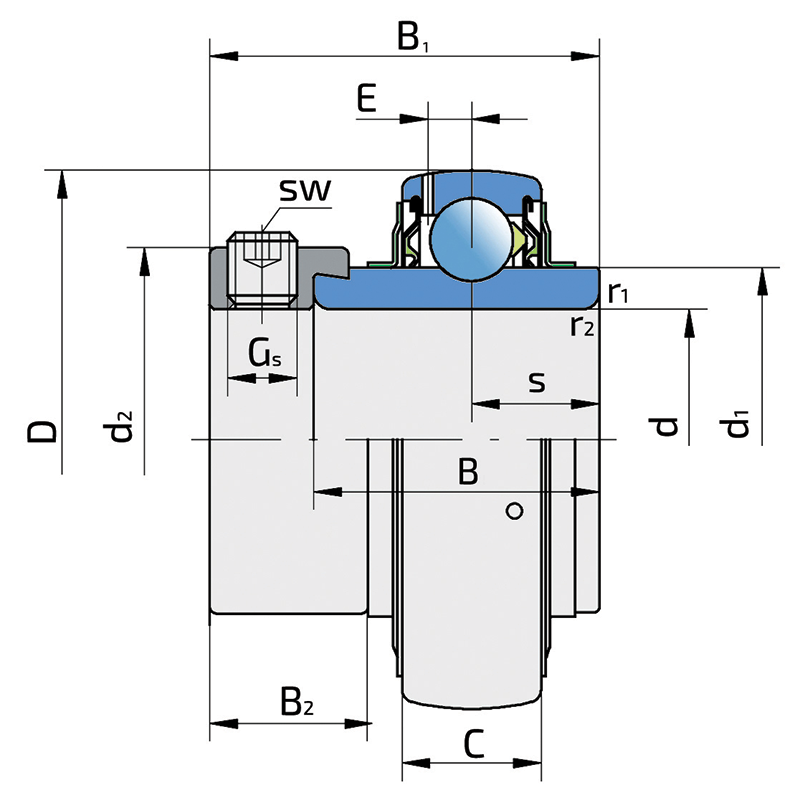

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing
