Y BEARINGS

LY 206-103 2F.SH

Y-Ball Bearings With Eccentric Locking Collar

3D view

Technical Specification
d	Bore diameter	30.163	mm
D	Outside diameter	62	mm
B	Width inner ring	36.5	mm
C	Width outer ring	18	mm
s	Distance from inner ring side face to raceway centre	18.3	mm
d1	Outer diameter inner ring	39.7	mm
Gs	Set screw	5/16-24 UNF	inch
sw	Hexagonal key size for set screw	3.969	mm
sw	Hexagonal key size for set screw	5/32	inch
r1,2	Inner ring Chamfer dimension	0.6	mm
r3,4	Outside ring Chamfer dimension	0.6	mm
B1	Width inner ring with locking collar	48.4	mm
d2	Locking collar outside diameter	44.2	mm
B2	Width locking collar	16	mm
kg	Mass	0.37	kg
Cdyn	Dynamic load rating	19.5	kN
Co	Static load rating	11.2	kN
Pu	Fatigue load limit	0.48	kN

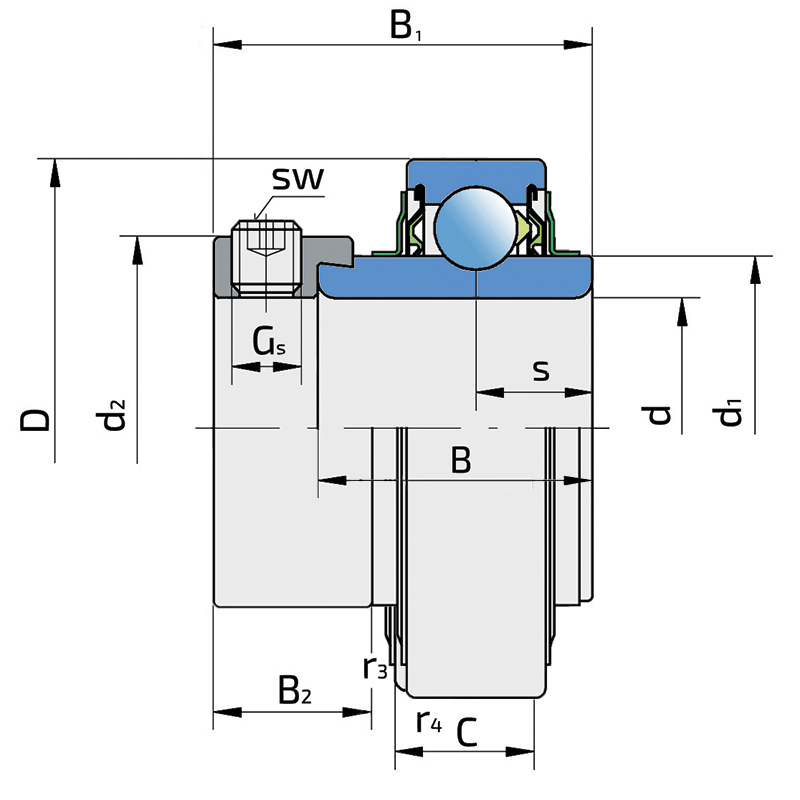

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing
