Y BEARINGS
LE 312 2F.SH
Y-Ball Bearings With Grub Screw Locking

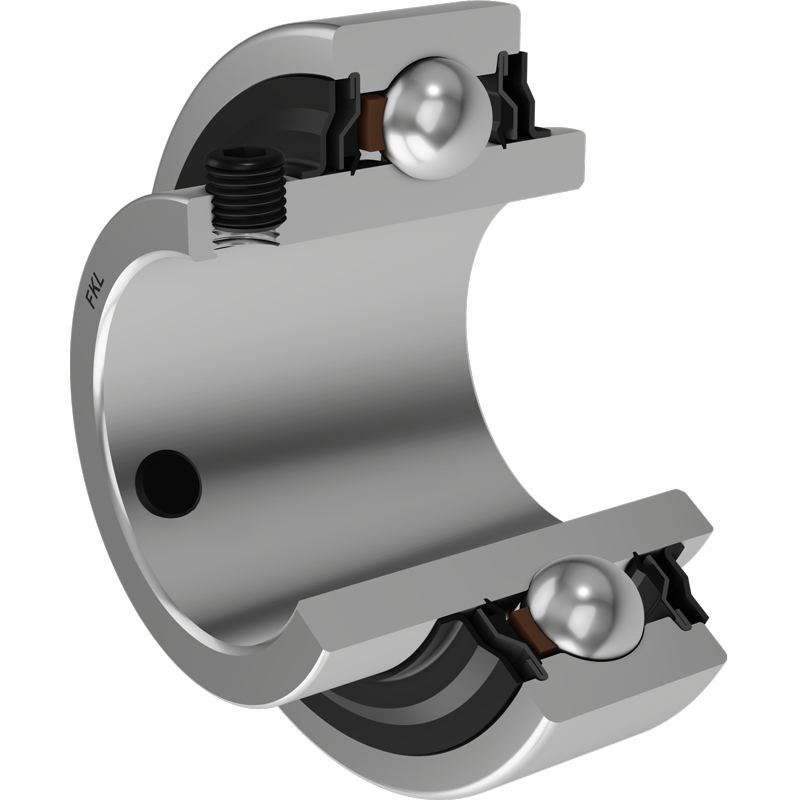

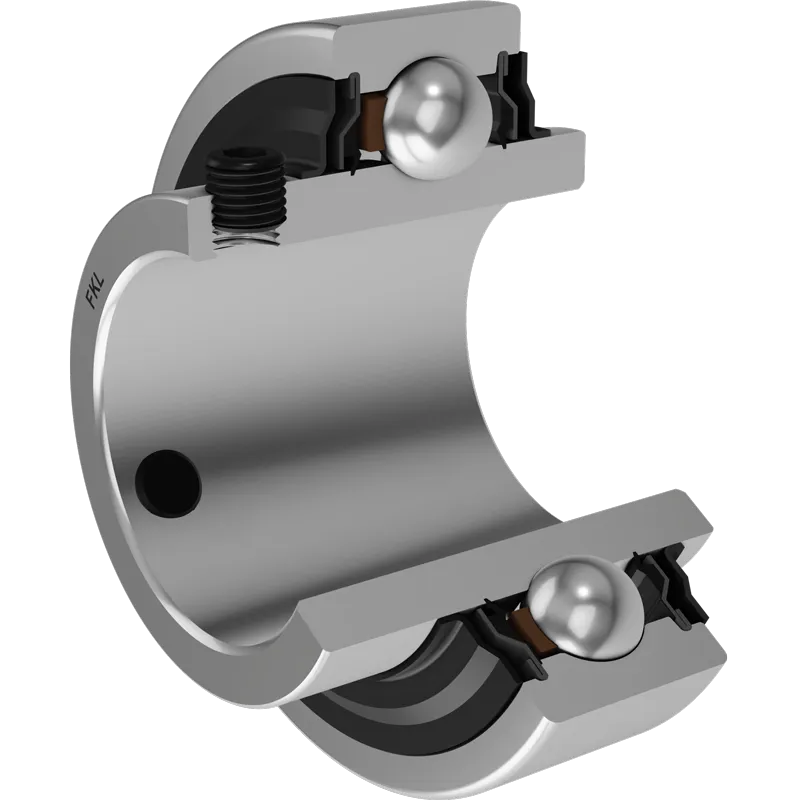

3D view
| d | Bore diameter | 60 | mm |
| D | Outside diameter | 130 | mm |
| B | Width inner ring | 71 | mm |
| C | Width outer ring | 36 | mm |
| s | Distance from inner ring side face to raceway centre | 26 | mm |
| d1 | Outer diameter inner ring | 81.8 | mm |
| E | Distance from raceway centre to the hole for lubrication | 9 | mm |
| Gs | Set screw | M12x1.6 | mm |
| sw | Hexagonal key size for set screw | 6 | mm |
| r1,2 | Inner ring Chamfer dimension | 2.1 | mm |
| r3,4 | Outside ring Chamfer dimension | 2.1 | mm |
| Cdyn | Dynamic load rating | 81 | kN |
| Co | Static load rating | 52 | kN |
| Pu | Fatigue load limit | 2.2 | kN |
| kg | Mass | 2.6 | kg |
Tehnical Drawing
Sealing
F SEAL / F SEAL (2F)
Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).
Sealing Drawing
