UE 205 2S

Y-Ball Bearings With Grub Screw Locking

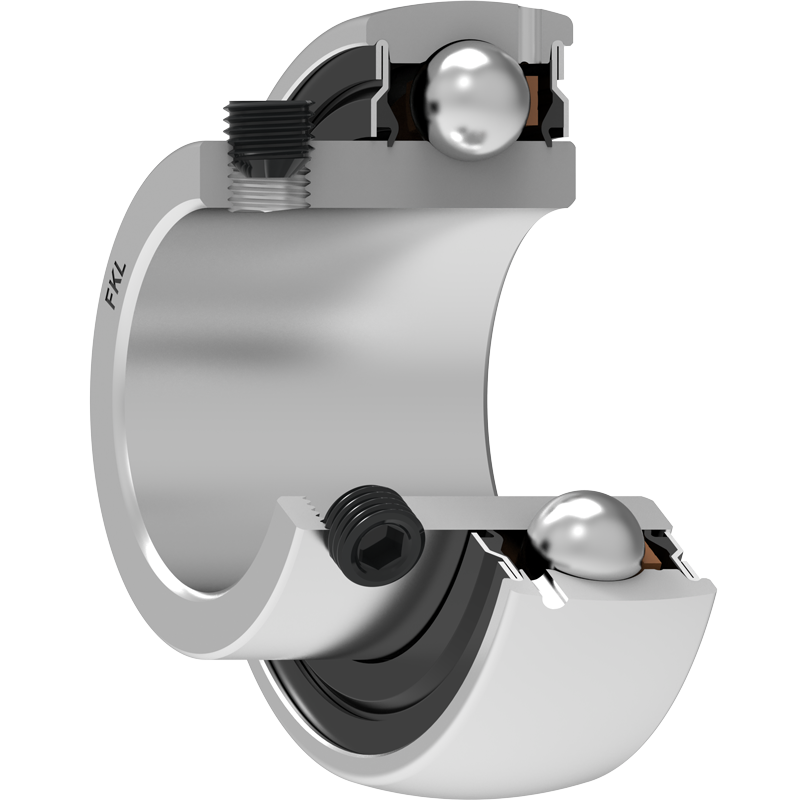

3D view

Technical Specification
dBore diameter25mm
DOutside diameter 52mm
BWidth inner ring 27.2mm
C Width outer ring 15mm
sDistance from inner ring side face to raceway centre 7.7mm
d1Outer diameter inner ring 33.6mm
EDistance from raceway centre to the hole for lubrication 4.3mm
GsSet screw M6x0.75mm
swHexagonal key size for set screw 3mm
r1,2Inner ring Chamfer dimension0.6mm
r3,4Outside ring Chamfer dimension0.6mm
CdynDynamic load rating14kN
CoStatic load rating7.8kN
PuFatigue load limit0.335kN
kgMass0.14kg

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

UE 205 2S

×

UE 205 2S

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.

UE 205 2S

×
