UE 203 2S

Y-Ball Bearings With Grub Screw Locking

Application: Universal

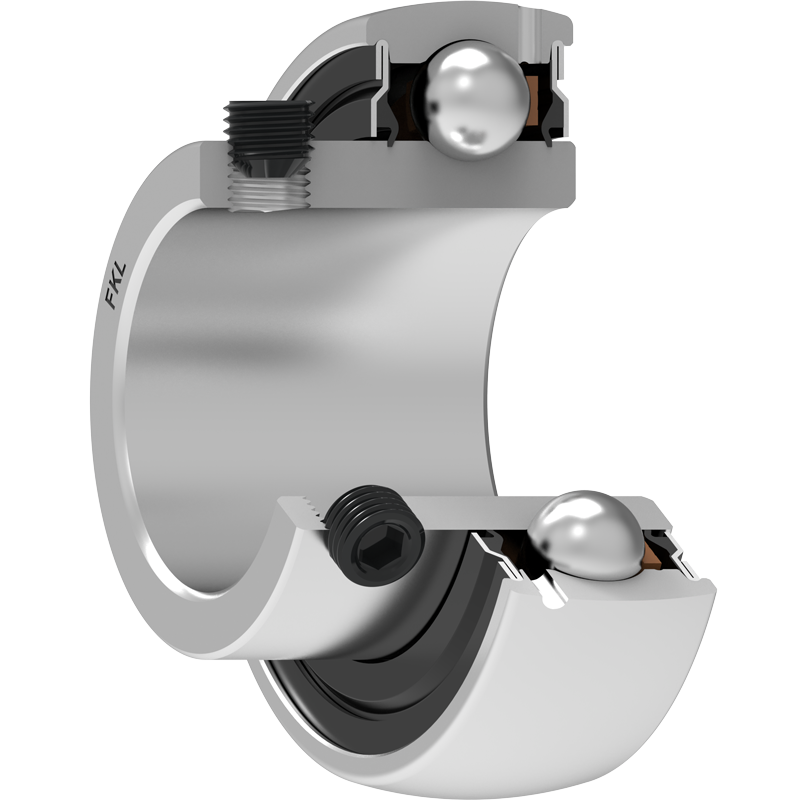

3D view

Technical Specification
dBore diameter17mm
DOutside diameter 40mm
BWidth inner ring 22.1mm
C Width outer ring 12mm
sDistance from inner ring side face to raceway centre 6.2mm
d1Outer diameter inner ring 24.2mm
EDistance from raceway centre to the hole for lubrication 3.6mm
GsSet screw M6x0.79mm
swHexagonal key size for set screw 3mm
r1,2Inner ring Chamfer dimension0.3mm
r3,4Outside ring Chamfer dimension0.6mm
CdynDynamic load rating9.56kN
CoStatic load rating4.75kN
PuFatigue load limit0.2kN
kgMass0.07kg

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

UE 203 2S

×

UE 203 2S

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.
