UNIVERSAL SOLUTION
208000
Deep Groove Ball Bearing
Application: Universal Solution

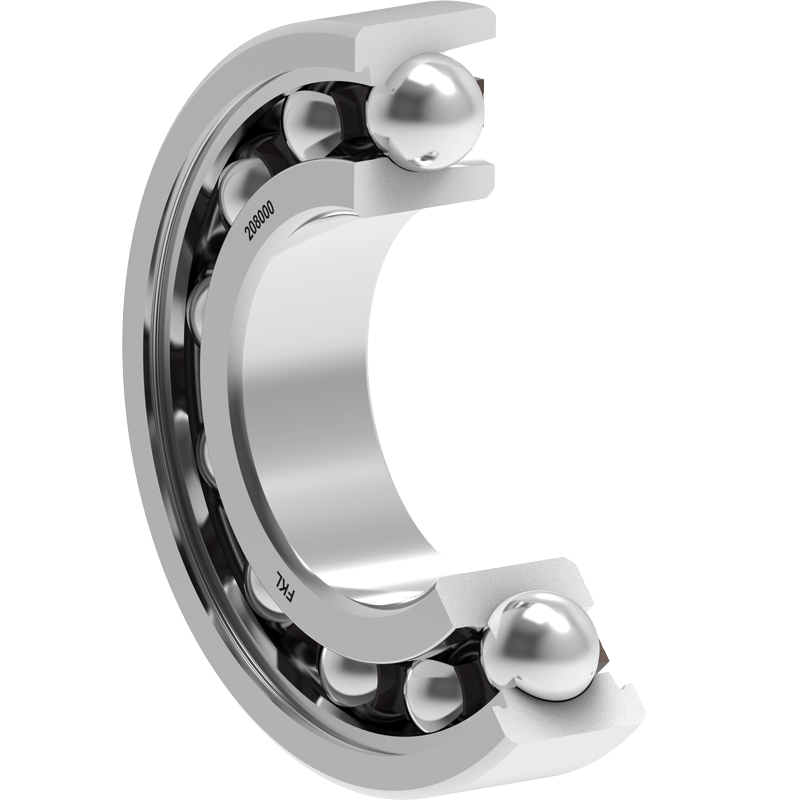

3D view
| d | Bore diameter | 40 | mm |
| D | Outside diameter | 80 | mm |
| B | Width inner ring | 18 | mm |
| d1 | Outer diameter inner ring | 52 | mm |
| kg | Mass | 0.37 | kg |
| Cdyn | Dynamic load rating | 39.5 | kN |
| Co | Static load rating | 24.2 | kN |
| Pu | Fatigue load limit | 1.016 | kN |

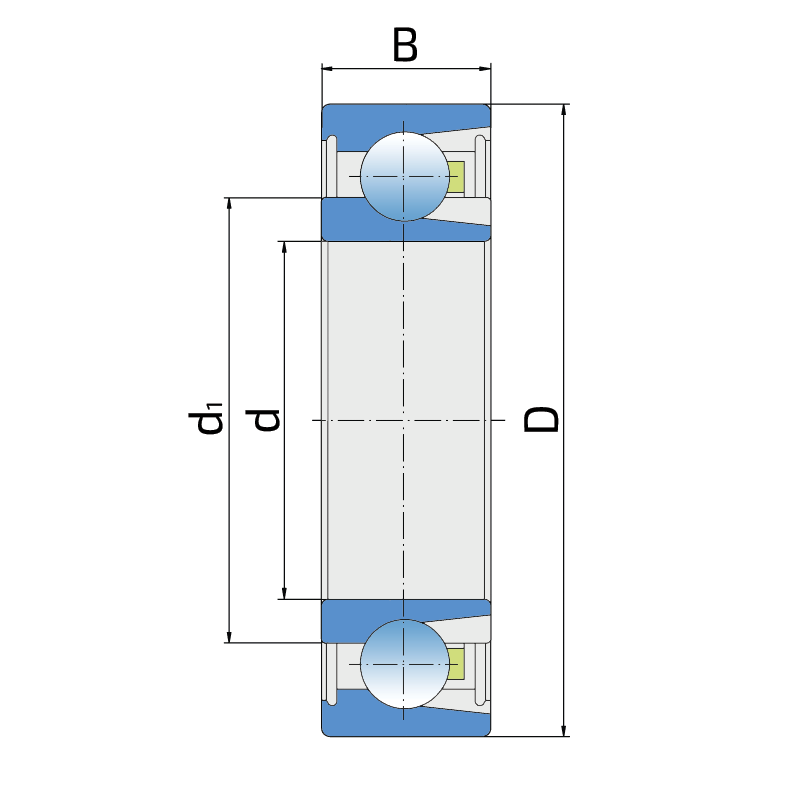

Tehnical Drawing
Sealing
Sealing Drawing
