UNIVERSAL SOLUTION

6205 2S

Ball bearing

Application: Universal Solution

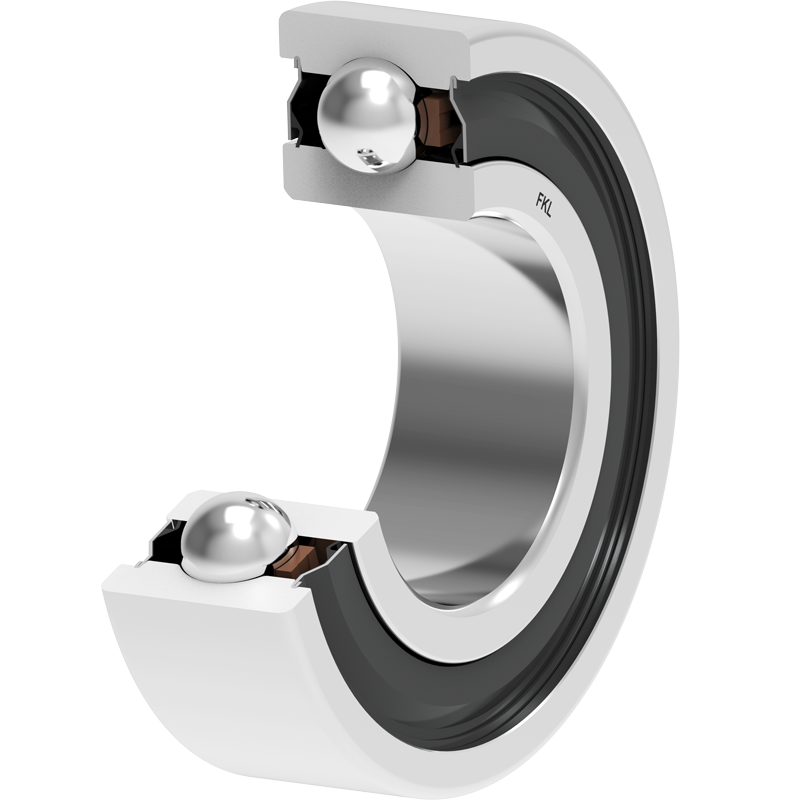

3D view

Technical Specification
dBore diameter25mm
DOutside diameter 52mm
C Width outer ring 15mm
d1Inner ring outside diameter33.6mm
kgMass0.13kg
CdynDynamic load rating14kN
CoStatic load rating7.8kN
PuFatigue load limit0.328kN

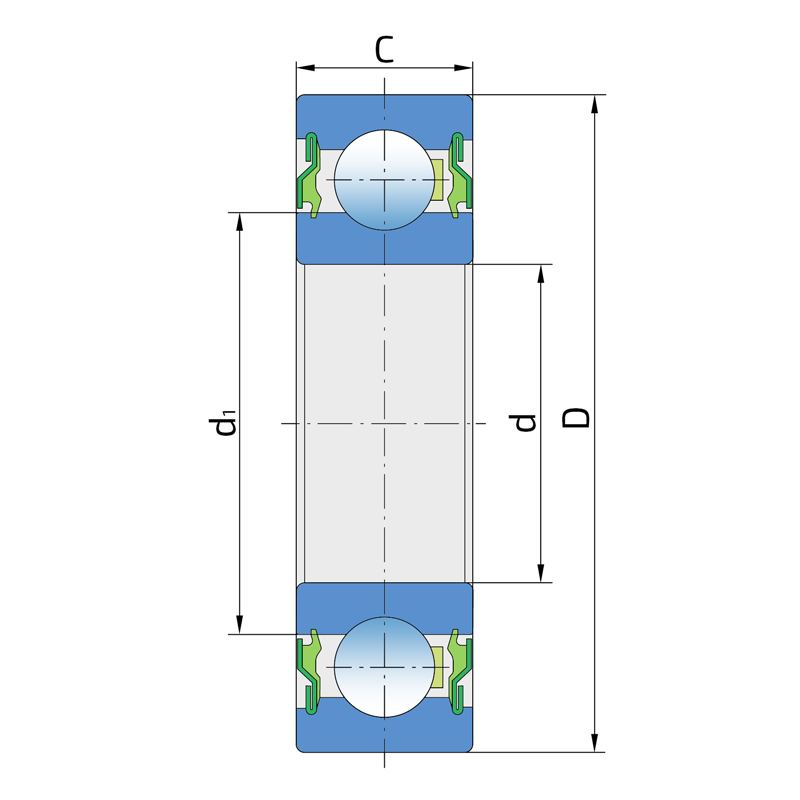

Tehnical Drawing

Sealing

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.

Sealing Drawing

6205 2S

×

6205 2S

×

Sealing Type:

Single seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing.

6205 2S

×
