UNIVERSAL SOLUTION
LEFG 208-108 TDT
Armor Bearing Unit
Application: Universal Solution

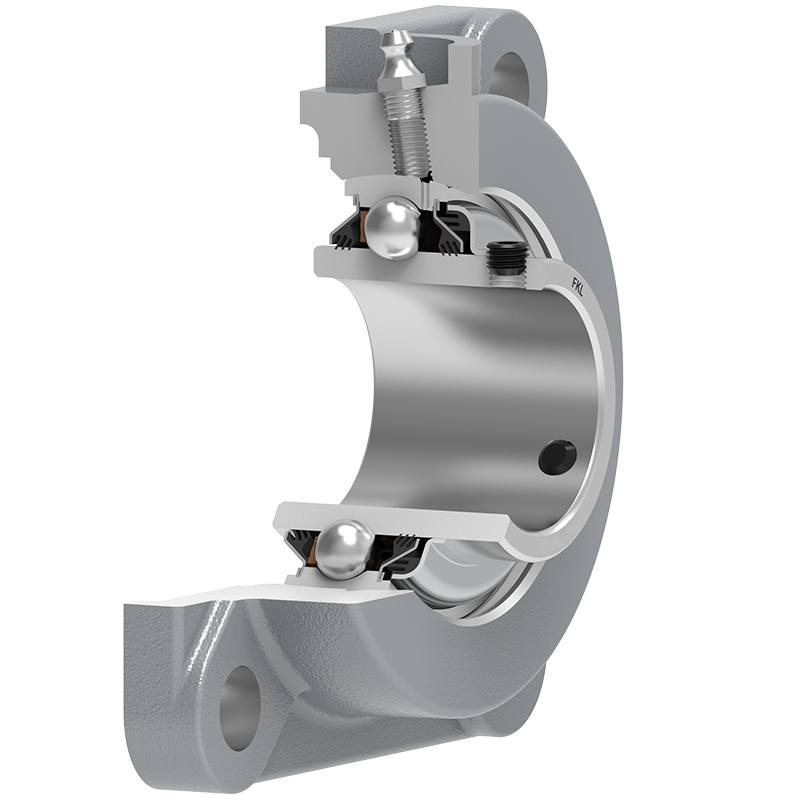

3D view
| d | Bore diameter | 38.1 | mm |
| d | Bore diameter | 1 1/2 | inch |
| A1 | Total housing width | 36 | mm |
| A2 | Housing flange thickness | 14 | mm |
| J | Distance between the holes | 102 | mm |
| L | Total length | 130 | mm |
| N | Hole diameter | 16H13 | mm |
| A | Overall width | 51.2 | mm |
| kg | Mass | 1.95 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.798 | kN |

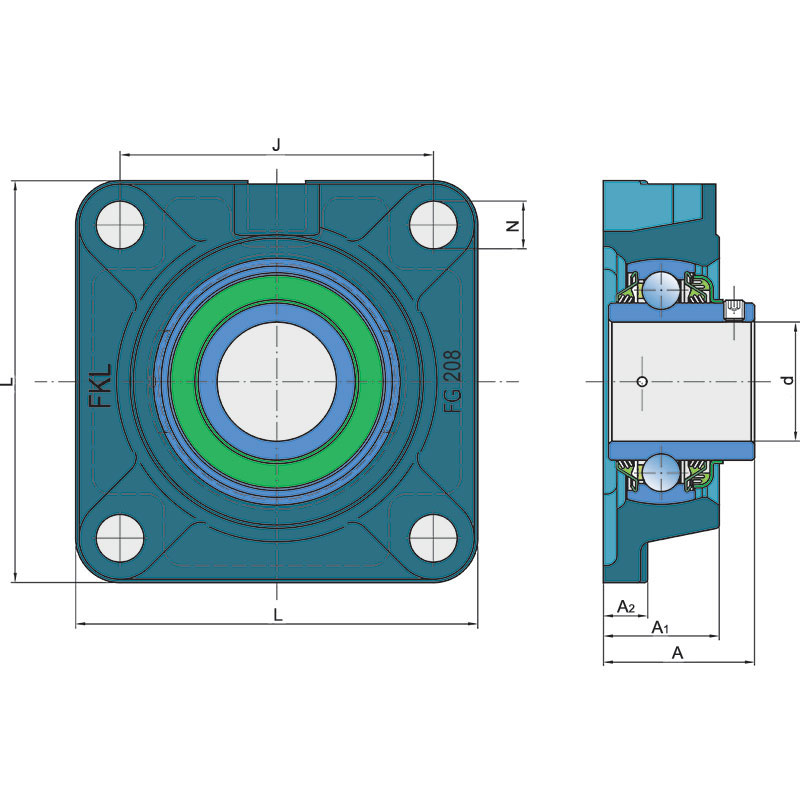

Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
